Full specifications (PDF)
Light Source:
Laser
Scan Rate:
800 scan/s

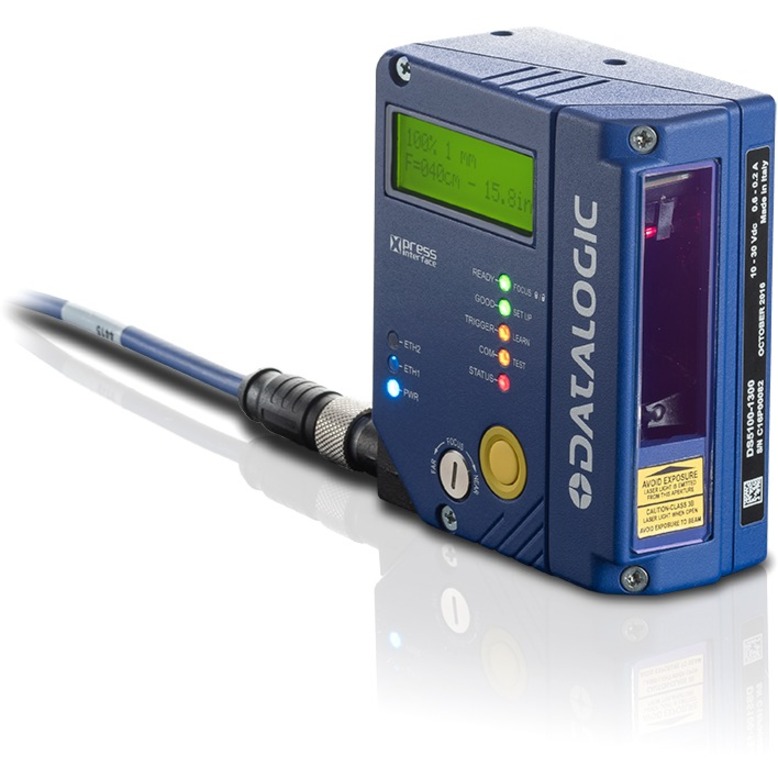

Datalogic DS5100 – Barcode Scanner
Part Number:
931061344
Model:
DS5100
DataLogic Datalogic DS5100 Barcode Scanner Model Overview
The Datalogic DS5100 is an advanced laser scanner designed to meet the diverse identification requirements in manufacturing sectors such as Automotive, Food & Beverage, and Pharmaceuticals. Compact yet powerful, the DS5100 provides unmatched performance with its Digital Signal Technology (DST) and ACR4 reconstruction algorithm, ensuring reliable readings even on low-contrast or damaged barcodes. With options for medium and long-range capabilities and robust industrial protection rated at IP65, this scanner excels in harsh environments, including cold storage.
Key Features
Specifications
Key Features
- Medium and Long Range Models: Offers flexibility for various applications.
- User Selectable Focus: Adapts to specific operational needs.
- ID-NET Interface: Facilitates high-speed networks and multi-side reading.
- X-PRESS Interface: Simplifies scanner setup and maintenance.
- Top Industrial Grade Protection: IP65 rated and subzero versions available for extreme conditions.
Specifications
- Reading Distance: Medium Range: 200 - 1000 mm; Long Range: 300 - 1400 mm
- Scan Rate: 800 scans/second
- Focus Adjustment: Mechanically adjustable with locking
- Operating Temperature: 0° to +50 °C, Subzero models down to -35 °C
- IP Rating: IP65
- Communications: Ethernet/IP, MODBUS TCP, RS232/RS485
- Weight: LIN: 580 g; OM: 775 g
- Material: Aluminum casing
Datalogic 931061344 Barcode Scanner Overview
Datalogic announces the availability of the DS5100, the new flexible, powerful and compact laser scanner. The DS5100 is a cost effective solution satisfying the main identification needs of Automotive, Food & Beverage, Pharmaceutical and other manufacturing plants.
The DS5100 offers a complete and flexible portfolio including Medium and Long Range models, Linear and Oscillating Mirror models. The unit boasts the DST™ (Digital Signal Technology) for stable and constant performance at any operative condition, a best in class ACR™ 4 reconstruction algorithm, and optimized reading recipes for flexible and outstanding reading performance on low quality and low contrast bar codes, damaged labels as well as at high skew angles. Superior reading performance together with a user selectable focus make the DS5100 the ideal solution to cover different applications along the manufacturing chain: Shop Floor, End of Line, Automated Warehouse, Intralogistics, Pallet Reading and more.
Top Industrial grade IP65 protection class, subzero™ models down to -35°C and total ambient light immunity make the DS5100 ideal for harsh industrial environments, outdoor and frozen production facilities. For easy installation and flexible form factor the DS5100 is equipped with rotating connector block. For easy setup and maintenance the DS5100 has the intuitive X-PRESS™ interface and the Multilanguage Genius™ software tool. The embedded Multilanguage display improves scanner monitoring and diagnostics.
The DS5100 offers complete connectivity and networking capabilities. On-board Ethernet ports (one and two ports models) and switch provide embedded interface to main Fieldbus EtherNet/IP and PROFINET-IO without the need of external devices for a cost effective solution and short installation time. The ID-NET™ interface is ideal for high speed networks and multi side reading. Ethernet Bus Connection EBC™ interface delivers real time multi-head synchronization and events via bus for short and easy installation (no signal cables), PACKTRACK™ tracking technology mode for increased reading throughput and accuracy.
Extended interoperability with Datalogic mid-range (DS2100N/DS2400N through ID-NET interface) and long range (DS8110/DX8210 through EBC) laser scanner families allows the DS5100 to be the perfect solution for integrated systems.
With its outstanding performances, the DS5100 delivers a smart, flexible and high performance/price ratio offer in the Datalogic scanner portfolio.
The DS5100 offers a complete and flexible portfolio including Medium and Long Range models, Linear and Oscillating Mirror models. The unit boasts the DST™ (Digital Signal Technology) for stable and constant performance at any operative condition, a best in class ACR™ 4 reconstruction algorithm, and optimized reading recipes for flexible and outstanding reading performance on low quality and low contrast bar codes, damaged labels as well as at high skew angles. Superior reading performance together with a user selectable focus make the DS5100 the ideal solution to cover different applications along the manufacturing chain: Shop Floor, End of Line, Automated Warehouse, Intralogistics, Pallet Reading and more.
Top Industrial grade IP65 protection class, subzero™ models down to -35°C and total ambient light immunity make the DS5100 ideal for harsh industrial environments, outdoor and frozen production facilities. For easy installation and flexible form factor the DS5100 is equipped with rotating connector block. For easy setup and maintenance the DS5100 has the intuitive X-PRESS™ interface and the Multilanguage Genius™ software tool. The embedded Multilanguage display improves scanner monitoring and diagnostics.
The DS5100 offers complete connectivity and networking capabilities. On-board Ethernet ports (one and two ports models) and switch provide embedded interface to main Fieldbus EtherNet/IP and PROFINET-IO without the need of external devices for a cost effective solution and short installation time. The ID-NET™ interface is ideal for high speed networks and multi side reading. Ethernet Bus Connection EBC™ interface delivers real time multi-head synchronization and events via bus for short and easy installation (no signal cables), PACKTRACK™ tracking technology mode for increased reading throughput and accuracy.
Extended interoperability with Datalogic mid-range (DS2100N/DS2400N through ID-NET interface) and long range (DS8110/DX8210 through EBC) laser scanner families allows the DS5100 to be the perfect solution for integrated systems.
With its outstanding performances, the DS5100 delivers a smart, flexible and high performance/price ratio offer in the Datalogic scanner portfolio.
Technical Information
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Fixed Mount
Height:
1.9"
Width:
4.6"
Depth:
5.6"
Weight (Approximate):
1.58 lb
The Datalogic 931061344 Barcode Scanner is also known as
DTL-931061344
or 931061344.
