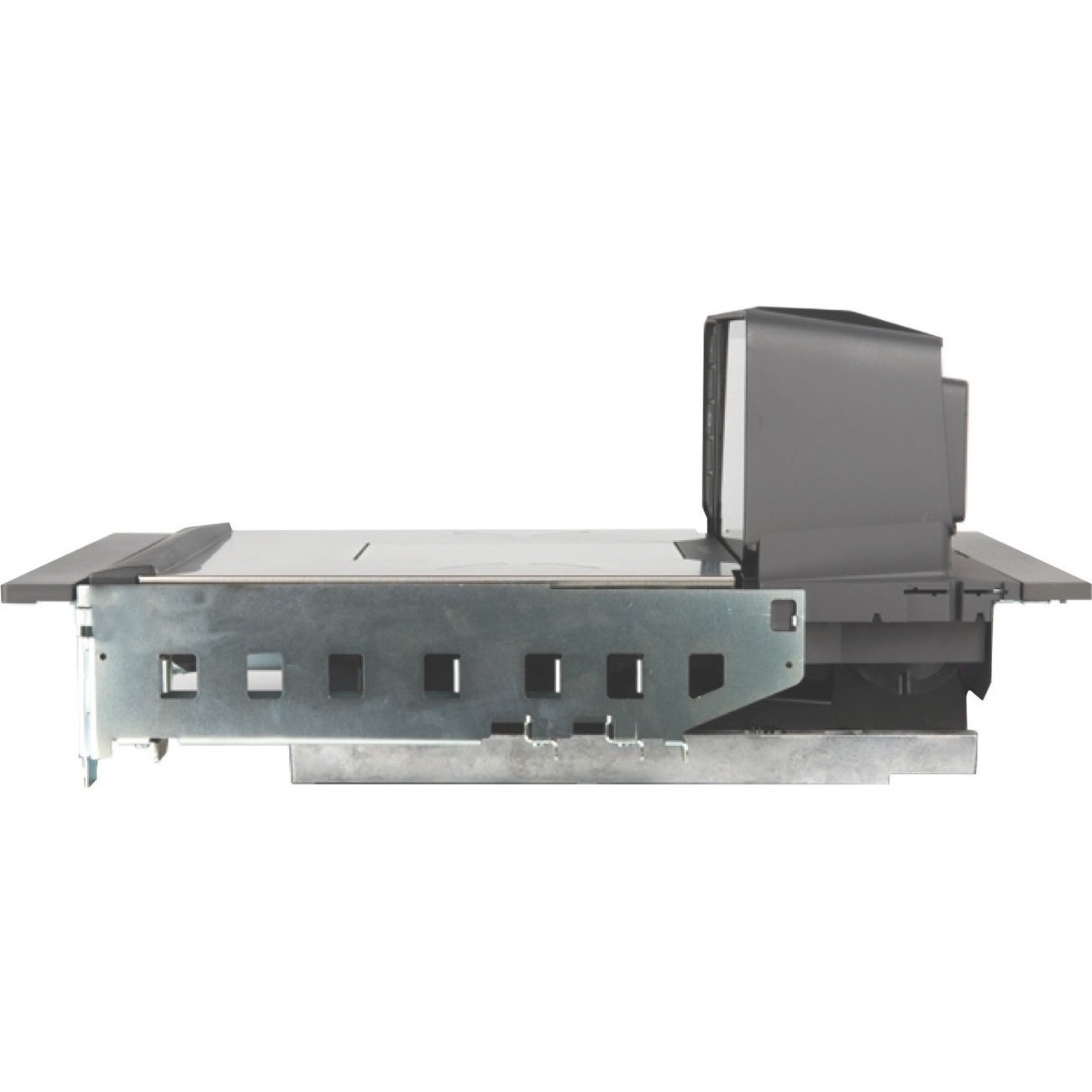

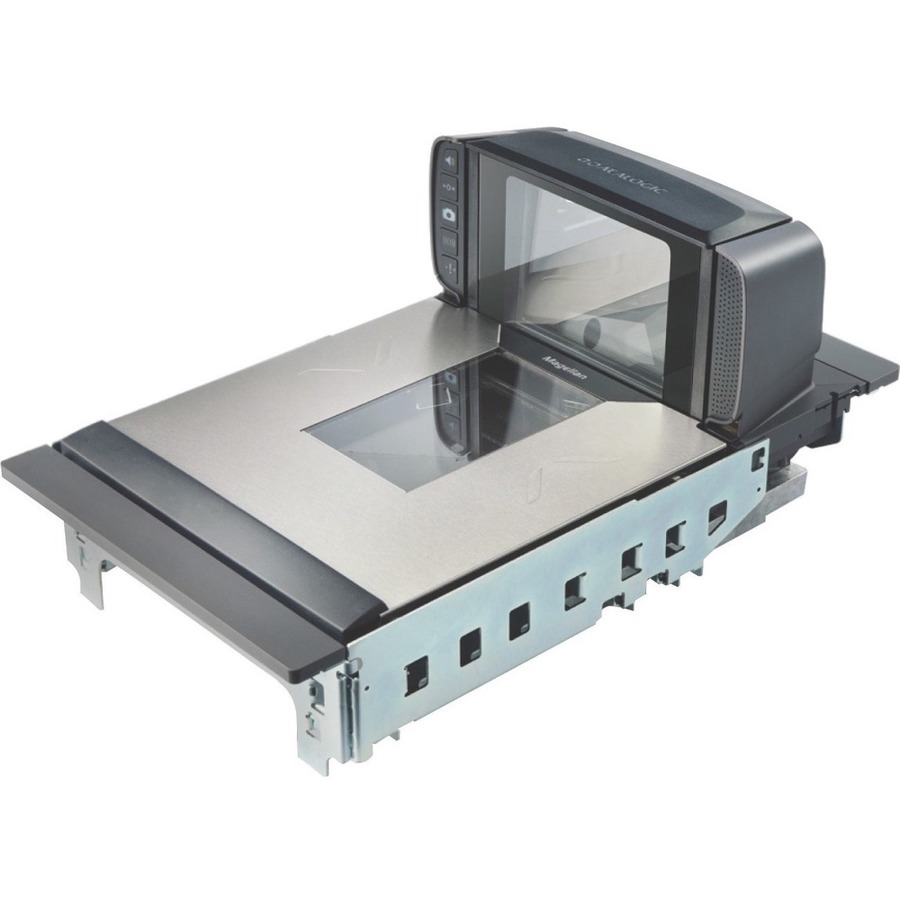

The Magellan™ 9300i/9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Innovative features and options such as ScaleSentry™ shrink monitoring/prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9300i/9400i purpose-built to help retailers reduce shrink at the POS.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
INDUSTRY - APPLICATION All-Weighs Scale Platter
The All-Weighs scale platter design provides an alternative weighing surface on top of the bonnet, allowing the user to lay produce that is too long to fit on the platter.
ScaleSentry Technology
Monitors the 2 primary sides of the scale platter with an infrared (invisible) beam to detect if fruit or produce is misplaced on the scale platter causing the item to be under-weighed.
Misplaced fruits or produce will break the infrared beam and trigger an alert to the cashier, preventing the weight from being transmitted to the POS until the cashier corrects the problem.
What barcode types does the Datalogic Magellan 9300i scanner decode?
The Datalogic Magellan 9300i automatically discriminates all standard 1D linear codes including GS1 DataBar codes, and supports 2D codes such as Data Matrix, QR Code, Micro QR, Aztec Code, and stacked codes like PDF417 and MicroPDF417. This broad decoding capability makes it suitable for diverse retail and warehouse applications where multiple barcode formats are in use.
Is the Datalogic 931013110 compatible with USB connections?
Yes, the Datalogic Magellan 9300i features multi-interface connectivity including USB support, along with RS-232 and IBM 46XX interfaces. This flexibility allows seamless integration into existing point-of-sale and warehouse management systems. Contact us today to confirm specific cable and configuration requirements for your setup.
What mounting options are available for the Datalogic Magellan 9300i?
This model comes configured with a short sapphire platter shelf mount and flip-up rail, designed for fixed-position scanning in retail checkout and warehouse environments. The adaptive scale configuration allows for flexible deployment scenarios. Visit barcodesinc.com or contact us for additional mounting accessories if your application requires different installation options.
What are the environmental operating conditions for the Magellan 9300i scanner?
The Datalogic Magellan 9300i operates in ambient light conditions from 0 to 86,080 lux and maintains performance in humidity levels of 5-95% (non-condensing). Operating temperature range is 10-40°C (50-104°F), making it suitable for standard indoor warehouse and retail environments. For extreme temperature applications, consult our team about storage specifications.
Does the Datalogic 931013110 include remote management capabilities?
Yes, the Magellan 9300i supports remote management through diagnostic reporting and is compliant with WMI (OPOS and JavaPOS) standards, as well as MBeans for JavaPOS environments. It supports host download functionality and is compatible with IBM Director, Wavelink Avalanche, and other ERP management solutions for centralized device administration.
What is the difference between the Datalogic Magellan 9300i and other Datalogic fixed scanners?
The Magellan 9300i is specifically configured as a fixed-position scanner with integrated scale capabilities and adaptive scaling for retail and warehouse checkout applications. Unlike handheld models, it provides consistent hands-free scanning with all-weighs scale platter technology for loss prevention. We offer various Datalogic models for different use cases—contact us today to find the right scanner for your specific application.
The Datalogic 931013110 Barcode Scanner is also known as
DTL-931013110
or 931013110.
