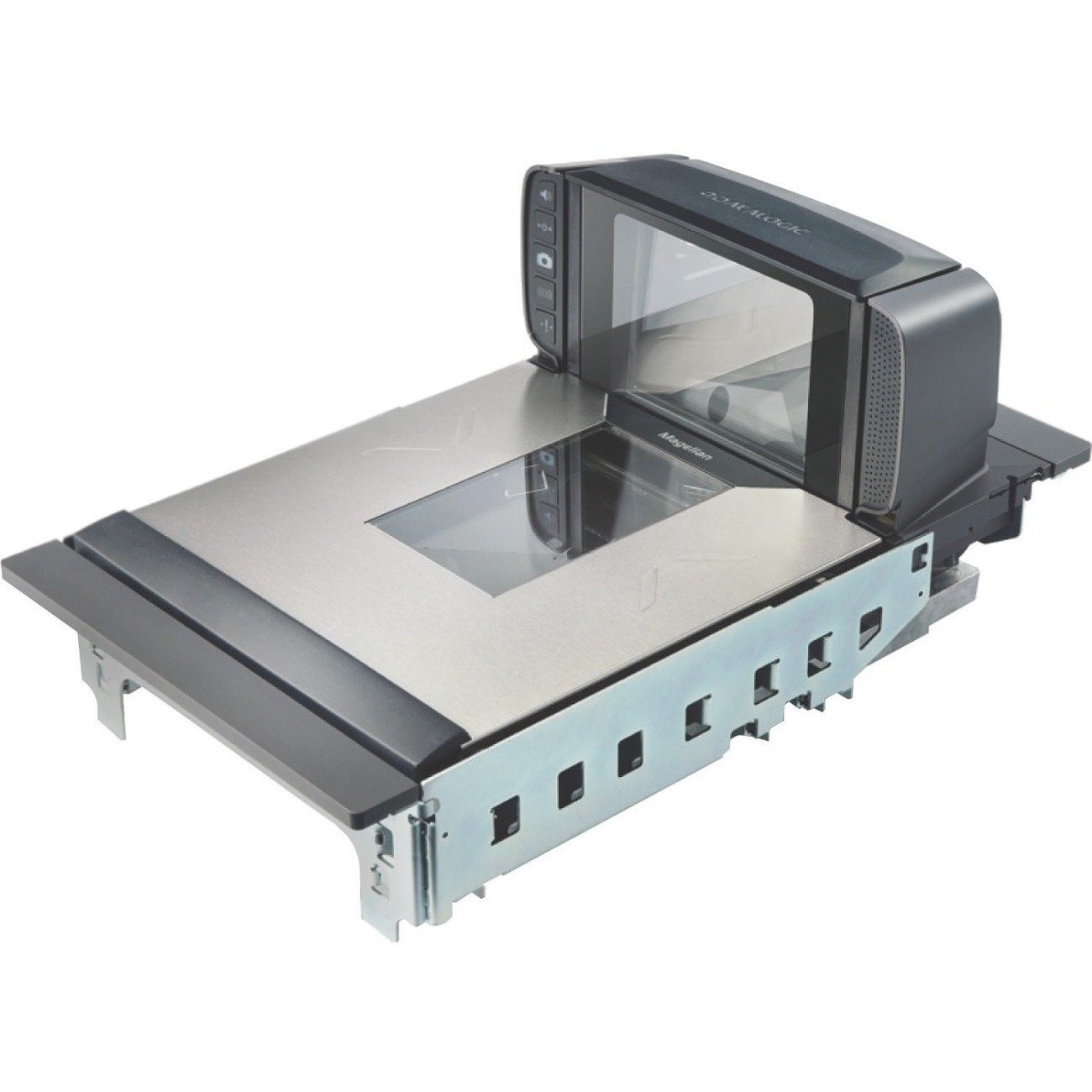

Datalogic Magellan 9300i Barcode Scanner Model Overview
The Datalogic Magellan 9300i Barcode Scanner brings multi-plane digital imaging to busy retail checkout lanes. It reads 1D and 2D barcodes from multiple angles, helping cashiers scan merchandise with less repositioning. Large horizontal and vertical windows provide a broad reading area, while its ergonomic design accommodates seated and standing operators. Available in scanner-only and scanner/scale configurations, the Magellan 9300i supports different checkout layouts and weighing requirements.
Key Features:
1D and 2D Scanning: Digital imagers read linear and two-dimensional barcodes across all scanning planes.
Ergonomic Design: Supports comfortable operation and convenient placement of POS screens, payment terminals and printers.
Flexible Configurations: Scanner-only, integrated scale and adaptive scale options accommodate different retail requirements.
Optional Customer Scanning: A separate Customer Service Scanner lets shoppers scan mobile coupons and loyalty cards while the cashier scans merchandise.
Weighing and Loss Prevention Options: Selected configurations offer All-Weighs platter technology and ScaleSentry monitoring to help prevent inaccurate weighing.
Remote Management: Diagnostic reporting and host-download capabilities simplify configuration and support.
Specifications:
Scanner Type: Multi-plane digital imager
Form Factor: Corded, in-counter
Supported Symbologies: Standard 1D codes, GS1 DataBar, PDF417, MicroPDF417, Aztec, Data Matrix, QR Code and Micro QR Code
Interface Options: USB, RS-232 and IBM 46XX, depending on configuration
Operating Temperature: 50°F to 104°F (10°C to 40°C)
Humidity: 5% to 95%, non-condensing
Illumination: Multiple diffused LEDs designed for operator eye comfort
Image Capture: BMP and JPEG grayscale images
Configuration: Dimensions, platter, scale, mounting hardware, cables and power accessories vary by part number
The Magellan™ 9300i/9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Innovative features and options such as ScaleSentry™ shrink monitoring/prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9300i/9400i purpose-built to help retailers reduce shrink at the POS.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
INDUSTRY - APPLICATION All-Weighs Scale Platter
The All-Weighs scale platter design provides an alternative weighing surface on top of the bonnet, allowing the user to lay produce that is too long to fit on the platter.
ScaleSentry Technology
Monitors the 2 primary sides of the scale platter with an infrared (invisible) beam to detect if fruit or produce is misplaced on the scale platter causing the item to be under-weighed.
Misplaced fruits or produce will break the infrared beam and trigger an alert to the cashier, preventing the weight from being transmitted to the POS until the cashier corrects the problem.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
