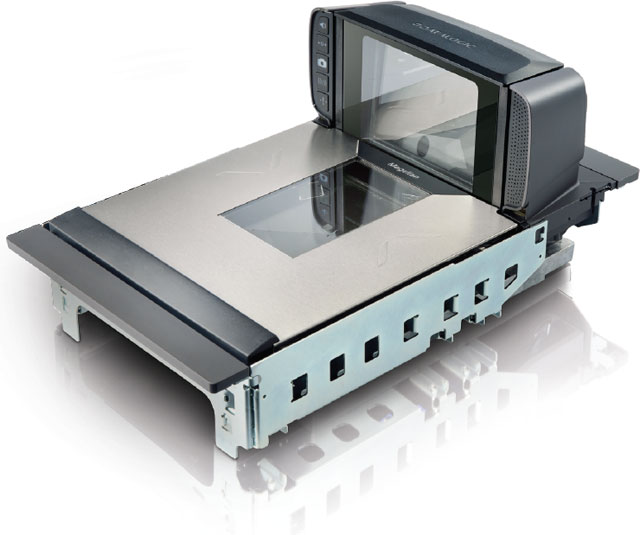

Datalogic Magellan 9300i – Barcode Scanner – 1D, 2D – Scanner Only
Part Number:
931013110-00231
Model:
Magellan 9300i
Full specifications (PDF)
Datalogic Magellan 9300i Barcode Scanner Model Overview
The Datalogic Magellan 9300i Barcode Scanner brings multi-plane digital imaging to busy retail checkout lanes. It reads 1D and 2D barcodes from multiple angles, helping cashiers scan merchandise with less repositioning. Large horizontal and vertical windows provide a broad reading area, while its ergonomic design accommodates seated and standing operators. Available in scanner-only and scanner/scale configurations, the Magellan 9300i supports different checkout layouts and weighing requirements.
Key Features:
Specifications:
Key Features:
- 1D and 2D Scanning: Digital imagers read linear and two-dimensional barcodes across all scanning planes.
- Ergonomic Design: Supports comfortable operation and convenient placement of POS screens, payment terminals and printers.
- Flexible Configurations: Scanner-only, integrated scale and adaptive scale options accommodate different retail requirements.
- Optional Customer Scanning: A separate Customer Service Scanner lets shoppers scan mobile coupons and loyalty cards while the cashier scans merchandise.
- Weighing and Loss Prevention Options: Selected configurations offer All-Weighs platter technology and ScaleSentry monitoring to help prevent inaccurate weighing.
- Remote Management: Diagnostic reporting and host-download capabilities simplify configuration and support.
Specifications:
- Scanner Type: Multi-plane digital imager
- Form Factor: Corded, in-counter
- Supported Symbologies: Standard 1D codes, GS1 DataBar, PDF417, MicroPDF417, Aztec, Data Matrix, QR Code and Micro QR Code
- Interface Options: USB, RS-232 and IBM 46XX, depending on configuration
- Operating Temperature: 50°F to 104°F (10°C to 40°C)
- Humidity: 5% to 95%, non-condensing
- Illumination: Multiple diffused LEDs designed for operator eye comfort
- Image Capture: BMP and JPEG grayscale images
- Configuration: Dimensions, platter, scale, mounting hardware, cables and power accessories vary by part number
Brand
Datalogic
Model
Magellan 9300i
Kit Options
Scanner Only
Scanner Type
Imager
Scanner Capability
1D, 2D
Recommended Accessories
Category
- Cables, Connectors, and Adapters (11)
- Data Networking Device Accessories (4)
- Fixed Barcode Scanner Accessories (1)
- Miscellaneous (4)
- Mobile Computer Accessories (1)
- Pole Customer Pole Display (1)
- Power Device (1)
- Power Device Accessories (2)
- Remote Scale Display (3)
- Scale Accessories (1)
- Scanner Accessories (22)
- Wireless Access Points (1)
Recommended Accessories for Model: Datalogic 931013110-00231 Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Datalogic 931013110-00231
-
Datalogic 90ACC1886 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Datalogic, Power Cord, 2-Pin, USIn Stock$7.31 -
Datalogic 90ACC1885 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Datalogic, Power Cord, 2-Pin, EUItem on backorder — chat for lead time$7.31 -
Datalogic 6003-0941 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Datalogic, Power Cord, 110V, US, StandardIn Stock$8.44
Top Data Networking Device Accessories Purchased With Datalogic 931013110-00231
-
Datalogic 90ACC0169 AccessoryScanner, Datalogic Magellan9300i, Customer Service ScannerItem on backorder — chat for lead time$502.60 -
Datalogic 90ACC0170 AccessoryScanner, Datalogic Magellan9300i, Customer Service Scanner, Omni Mount AccessoryItem on backorder — chat for lead time$570.78 -
Datalogic 90ACC0175 AccessoryScanner, Datalogic Magellan9300i, Customer Service Scanner, Bonnet Back Mount AccessoryItem on backorder — chat for lead time$527.93
Top Fixed Barcode Scanner Accessories Purchased With Datalogic 931013110-00231
-
Datalogic 95A251290 AccessoryCable, Datalogic AV500, M12, 3 Pin, Axial, 3 MetersItem on backorder — chat for lead time$8.89
Top Miscellaneous Purchased With Datalogic 931013110-00231
-
$63.67 -
Datalogic BC9030-433 ProductsBase Station, Datalogic PowerScan 9501 Series, 433 MHz, Multi-Interface (RS-232, USB and KBD Wedge), Not Available in the USItem on backorder — chat for lead time$292.45 -
Datalogic 90A052125 ProductsCable, RS-232, Serial Data Transfer, PC, 4.5 m/15 ftItem on backorder — chat for lead time$33.68
Top Mobile Computer Accessories Purchased With Datalogic 931013110-00231
-
PSC 90ACC0018 Power DevicePower Supply, 110/220V, Regulated RA, Compatible with Datalogic Magellan 8300/8400.Item on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top Pole Customer Pole Display Purchased With Datalogic 931013110-00231
-
Datalogic 90ACC0102 Customer DisplayCustomer Pole Display, Datalogic Magellan 9800i, Remote Scale Display, English, Single Head, Single Interval, US/Canada/Puerto RicoItem on backorder — chat for lead time$140.18
Top Power Device Purchased With Datalogic 931013110-00231
-
PSC 90ACC0018 Power DevicePower Supply, 110/220V, Regulated RA, Compatible with Datalogic Magellan 8300/8400.Item on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top Power Device Accessories Purchased With Datalogic 931013110-00231
-
Datalogic 90A052129 AccessoryCable, RS-232, Serial Data Transfer, 9D, Beetle, 4.5 m/15 ftItem on backorder — chat for lead time$29.66 -
Datalogic 6003-0932 AccessoryPower Cord, Datalogic Magellan 35xx HSi, Standard, 120 Volt, US, Twist & LockItem on backorder — chat for lead time$29.71
Top Remote Scale Display Purchased With Datalogic 931013110-00231
-
DataLogic 90ACC0103 AccessoryRemote Scale Display Kit, Datalogic Magellan 9800i, English, Dual head, Single Interval, US/Canada/Puerto RicoItem on backorder — chat for lead time$230.17 -
Datalogic 90ACC0105 AccessoryRemote Scale Display Kit, Datalogic Magellan 9800i, Metric, Single Interval, Dual Head, EuropeItem on backorder — chat for lead time$236.11 -
Datalogic 90ACC0106 AccessoryRemote Scale Display Kit, Datalogic Magellan 9800i, English, Single Head, Dual Interval, US/Canada/Puerto RicoItem on backorder — chat for lead time$140.31
Top Scale Accessories Purchased With Datalogic 931013110-00231
-
Datalogic 90ACC0106 AccessoryRemote Scale Display Kit, Datalogic Magellan 9800i, English, Single Head, Dual Interval, US/Canada/Puerto RicoItem on backorder — chat for lead time$140.31
Top Scanner Accessories Purchased With Datalogic 931013110-00231
-
$101.30 -
Datalogic 90A051230 AccessoryCable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.In Stock$23.17 -
Datalogic 90ACC1920 AccessoryPower Supply, Datalogic Media Converters and Bar Code Scanners, 12VDC, United States, PG12-10P35-US (includes power cord 90ACC1886)In Stock$29.97
Top Wireless Access Points Purchased With Datalogic 931013110-00231
-
Datalogic FBC9080-N200 Wireless Access PointsWireless Access Points, Datalogic, Fieldbus Converter, ETH IP, IndustrialItem on backorder — chat for lead time$576.69
Frequently Asked Questions
What barcode types can the Datalogic Magellan 9300i read?
The Magellan 9300i reads both 1D and 2D barcodes seamlessly, including all standard linear codes, GS1 DataBar codes, stacked codes like PDF417 and MicroPDF417, and 2D codes such as QR Code, Data Matrix, and Aztec Code. With digital imagers in all planes, the scanner requires no item orientation by the cashier, making it ideal for high-volume POS environments.
Is the Datalogic Magellan 9300i suitable for self-checkout and POS applications?
Yes, the Magellan 9300i is specifically designed for in-counter POS and self-checkout environments. Its ergonomic design with traditional bonnet height and large horizontal and vertical windows allows optimum positioning for touchscreens, payment terminals, and printers while maintaining comfort for both seated and standing cashiers.
What connectivity options are available for the Magellan 9300i?
The Magellan 9300i is available with RS-232 single cable connectivity for standard processing. This corded configuration ensures reliable, continuous connection in fixed in-counter installations. Contact us today to confirm the specific connectivity configuration available for your deployment.
What are the power requirements for the Datalogic Magellan 9300i?
The Magellan 9300i operates on AC power with input requirements of 100-240 VAC, making it compatible with standard electrical installations worldwide. This universal voltage range ensures flexibility for deployment across different retail and warehouse locations.
Can the Magellan 9300i read items at any angle?
Yes, the Magellan 9300i features digital imagers in all planes that enable seamless reading of both 1D and 2D barcodes without requiring specific item orientation. This multi-plane imaging capability significantly improves scanning speed and reduces cashier errors in fast-paced POS environments.
Is the Datalogic Magellan 9300i still available for purchase?
The Magellan 9300i has been discontinued by the manufacturer. However, we offer alternative fixed-mount barcode scanners with comparable performance for in-counter and self-checkout applications. Visit barcodesinc.com or contact us today to explore current scanner options that meet your POS requirements.
The Datalogic 931013110-00231 Barcode Scanner is also known as
DTL-93101311000231
or 93101311000231.
