Datalogic 902401001 Barcode Scanner

Datalogic QD2130-BK Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic QD2130-BK Barcode Scanner.
Datalogic Heron - Gun-shaped, multi-interface. Color: Gray. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 90A051945), PS/2 (Part# 90A051360), or RS-232 Serial cables (Part# 90G001070) and a Power supply (Part# 90ACC1893).
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 256 scan/s
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Datalogic Heron Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Datalogic 902401001 Barcode Scanner
Datalogic 902401001 Barcode Scanner Datalogic 902401001 Barcode Scanner Datalogic 902401001 Barcode Scanner Datalogic 902401001 Barcode Scanner
Datalogic 902401001 Barcode Scanner
Datalogic 902401001 Barcode Scanner
Datalogic 902401001 Barcode Scanner
Datalogic 902401001 Barcode Scanner
Full specifications (PDF)

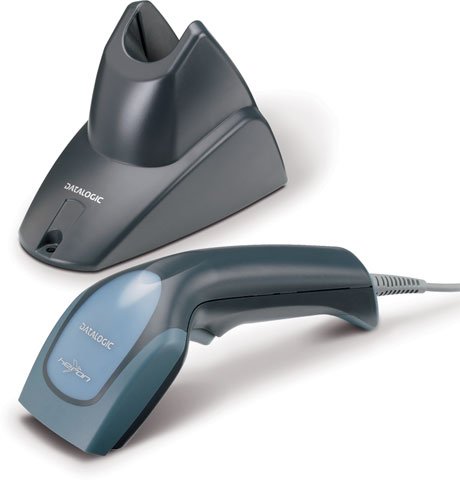

Datalogic Heron Barcode Scanner Model Overview
The new Heron has been developed by Datalogic in order to satisfy all requirements at the POS, providing high performance and an innovative design suitable for small retail POS applications. The new Heron, based on the "Instinctive Reading Distance" concept (from near contact to over 20cm), includes the "green spot" (Datalogic patent application), which provides "good reading" feedback directly on the code, where the user usually tends to be looking.
Datalogic 902401001 Barcode Scanner Overview

Heron G D130 Bar Code Reader has been developed to provide high performance with an appealing design, the result is compact, robust, easy to handle, and lightweight. Its simplicity of use and ergonomics make it suitable for retail, commercial and office applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • RSS
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • ISBN/ISSN
  • EAN-128
  • Code 128
  • ISBT 128
  • Code 93
  • Code 11
  • Codabar
  • IATA
  • Telepen
  • Plessey
  • Code MSI
  • Code Delta IBM
  • Code 16K
  • Code 49
  • Interleaved 2 of 5
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
256 scan/s
Maximum Scan Resolution:
4 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
6.88 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • USB
  • RS232
  • Keyboard Wedge

USB Cable separate

Certifications & Standards:
RoHS Compliance
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 902401001 Barcode Scanner is also known as DTL-902401001 or 902401001.
