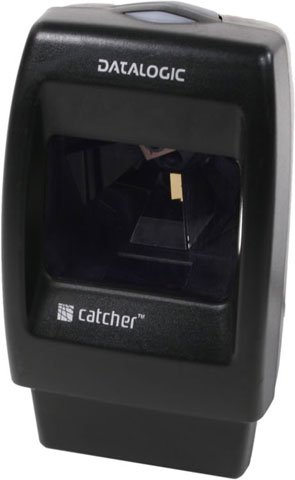

Datalogic 902311000 Barcode Scanner

The Datalogic 902311000 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Catcher D531 - Catcher Presentation Scanner (D531, RS232, USB and Wedge)
  • Scan barcodes with a staggering speed of 1500 scan/s
  • Allows productive and precise reading of 1D barcodes
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote
Datalogic Catcher D531 Barcode Scanner Model Overview
The Datalogic Catcher D531 guarantees outstanding reading performance in distribution and retail applications thanks to its state-of-the-art optics and electronics. The omni-directional reading pattern of 20 lines and 1,500 scans per second assure the highest "First Pass" decoding rate, an important feature in applications that require immediate and intuitive reading. The Catcher D531 has architecture that offers unique functions to the market. The advanced technology used for decoding increases the reading performance by making it easy to read damaged or poorly printed codes. The Data Editing and Data Formatting modes allow the code to be completely formatted before the information is sent to the host. In addition, thanks to the flash memory, the reader can be updated on the field, providing it with new functions and allowing it to read new symbologies.
Datalogic 902311000 Barcode Scanner Overview

The Catcher presentation scanner builds on the performance and reliability of the Diamond presentation scanner. The Catcher uses a state-of-the-art laser scan pattern to provide outstanding read performance for a variety of retail and distribution applications. Its broad scan volume provides excellent hands-free scanning performance from a much smaller counter footprint than a handheld scanner in a stand could provide. The Catcher also features a triggered single-line scanning mode for situations with multiple bar codes in the field-of-view, like those found on a typical PLU list. The Catcher's versatile multi-interface technology supports all of the most popular host terminal devices making ordering and integration very easy.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 39
  • Code 128
  • EAN/UPC
  • EAN-128
  • Code 11
  • Code 93
  • RSS
Light Source:
Laser
Scan Rate:
1500 scan/s
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Desktop
Weight (Approximate):
11.99 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • USB
  • Keyboard Wedge
  • Serial

USB Cable separate

Certifications & Standards:
  • RoHS Compliance
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 902311000 Barcode Scanner is also known as DTL-902311000 or 902311000.
