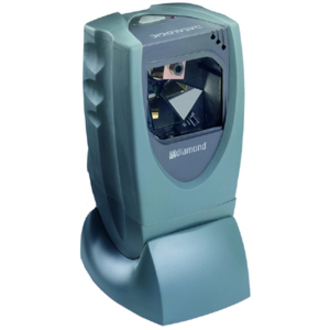

Datalogic 902301030 Barcode Scanner

The Datalogic 902301030 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic Diamond - DLL2020 Presentation scanner. Order Universal Adapter Cable, interface cables & power supply/AC adapter (for RS-232 operation) separately. See accessories.

Scanner Capability

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Scan barcodes with a staggering speed of 1200 scan/s
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Powerful laser scan source provides 1200 scan/s decode rate
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Datalogic Diamond Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Datalogic Diamond Barcode Scanner Model Overview

The Diamond is the premier omni-directional, on counter scanner for demanding applications.

Datalogic 902301030 Barcode Scanner Overview

The Diamond DLL2020 presentation scanner is an excellent value for those seeking good performance in an economical, yet ergonomic design. It offers solid presentation scanning performance and is a great solution for space conscience retail applications like convenience stores, specialty stores, gas stations, and news stands. The Diamond's small, ergonomic housing features a soft rubber overmolded grip which makes the scanner very comfortable to pick up for large or awkward items and also aids in protecting the scanner in harsher retail environments. Every Diamond also features a triggered single-line targeted scanning mode for situations where multiple bar codes are in the field-of-view.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Code 128
EAN-128
Code 39
Code 32
Codabar
EAN Add-ons
UPC Add-ons
Interleaved 2 of 5

Light Source:

Laser

Scan Rate:

1200 scan/s

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Form Factor:

Desktop

Height:

3.9"

Width:

2.8"

Depth:

2.6"

Weight (Approximate):

9.88 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211701
