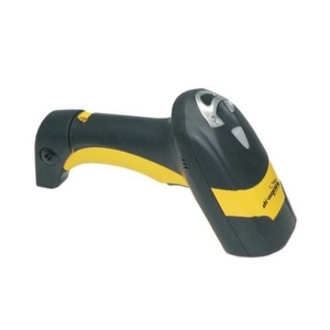

Datalogic 902151230 Barcode Scanner

Datalogic Dragon - D101 laser scanner. Order cables & power supply/AC adapter (for RS-232 operation) separately. See accessories.
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 35 scan/s
Read More

Full specifications (PDF)

The Datalogic Dragon series scanners offer high performance paired with rugged construction - all at an affordable price!
The Dragon series scanners offer high performance paired with rugged construction - all at an affordable price! When the job calls for a rugged, user friendly scanner, turn to the Dragon.
Datalogic 902151230 Overview

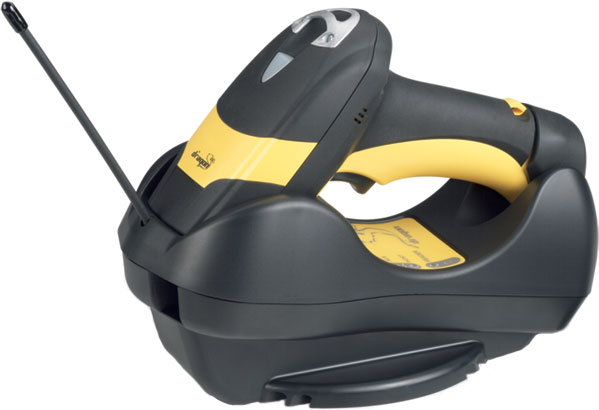

Dragon Desk D101 Bar Code Reader has an unmatched ergonomics for flexible and easy installation as well as intuitive use. This high performance laser scanner is durable and reliable over many years for all industrial markets. Ideal for all manufacturing and distribution/warehousing applications, it is the choice for the most demanding environments.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • EAN-128
  • Code 128
  • Code 93
  • Codabar
  • Code 49
  • Code MSI
  • Code 11
  • Code 16K
  • ISBN/ISSN
  • ISBT 128
  • RSS Code
  • Interleaved 2 of 5
Light Source:
Laser
Scan Rate:
35 scan/s
Maximum Scan Resolution:
3 mil
Power Description
Input Voltage:
30 V DC
Physical Characteristics
Height:
8"
Width:
2.7"
Depth:
4.6"
Weight (Approximate):
10.41 oz
Miscellaneous
Additional Information:

Interfaces:

  • USB
  • RS232
  • Wedge
  • Wand

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
RoHS Compliance
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Loading...

The Datalogic 902151230 is also known as Data Logic DTL-902151230 .
