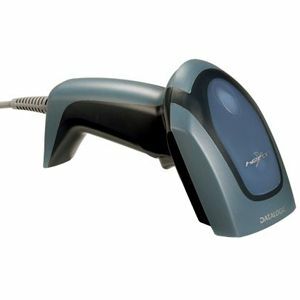

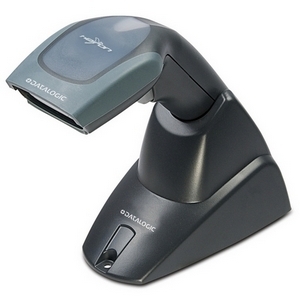

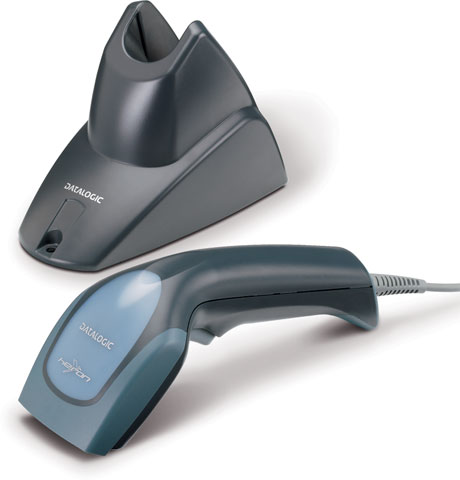

Datalogic Heron – Barcode Scanner – Corded – 1D

Part Number: 901801013
Model: Heron
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Scanner Capability
1D
Scanner Type
CCD, Imager

Product Description:

  Heron D130, Kit, Linear Imager, RS-232/USB/KBW/Wand Multi-Interface, Black (Kit inc. Imager and USB cable)

Datalogic Heron Barcode Scanner Model Overview

The new Heron has been developed by Datalogic in order to satisfy all requirements at the POS, providing high performance and an innovative design suitable for small retail POS applications. The new Heron, based on the "Instinctive Reading Distance" concept (from near contact to over 20cm), includes the "green spot" (Datalogic patent application), which provides "good reading" feedback directly on the code, where the user usually tends to be looking.
Datalogic 901801013 Barcode Scanner Overview

Heron D130 Bar Code Reader is a handheld scanner, lightweight and ergonomic. It has a high first pass rate, Intuitive aiming in hands-free applications and complete data formatting and data editing.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • EAN-128
  • Code 128
  • Code 93
  • Codabar
  • Telepen
  • Plessey
  • Code 49
  • Code MSI
  • Code Delta IBM
  • Code 11
  • Code 16K
  • ISBN/ISSN
  • ISBT 128
  • RSS Variants
  • Interleaved 2 of 5
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
256 scan/s
Maximum Scan Resolution:
4 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
5.65 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
RoHS Compliance
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0009018010131, 0778889985861, 5052178407834
UPC: 009018010131, 778889985861
EAN: 0009018010131, 0778889985861, 5052178407834
UNSPSC: 43211701
