Datalogic 901801009 Barcode Scanner

Datalogic Heron - D130, RS-232, USB, Wedge and Wand interfaces. Cables not included. See accessories. Color: Black
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Scan barcodes with a staggering speed of 256 scan/s
Read More

Full specifications (PDF)

The new Heron has been developed by Datalogic in order to satisfy all requirements at the POS, providing high performance and an innovative design suitable for small retail POS applications. The new Heron, based on the " Instinctive Reading Distance " concept (from near contact to over 20cm), includes the "green spot" (Datalogic patent application), which provides "good reading" feedback directly on the code, where the user usually tends to be looking.
Datalogic 901801009 Overview

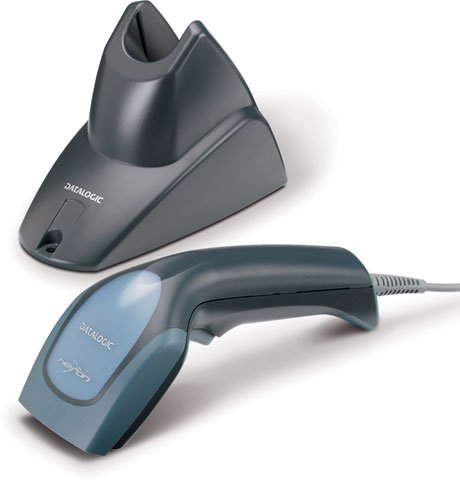

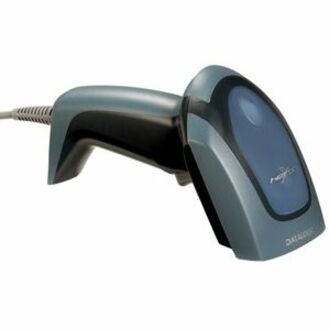

Heron D130 Bar Code Reader is a handheld scanner, lightweight and ergonomic. It has a high first pass rate, Intuitive aiming in hands-free applications and complete data formatting and data editing.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • EAN-128
  • Code 128
  • Code 93
  • Codabar
  • Telepen
  • Plessey
  • Code 49
  • Code MSI
  • Code Delta IBM
  • Code 11
  • Code 16K
  • ISBN/ISSN
  • ISBT 128
  • RSS Variants
  • Interleaved 2 of 5
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
256 scan/s
Maximum Scan Resolution:
4 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Black
Weight (Approximate):
5.65 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Wand Emulation
  • Keyboard Wedge
  • Certifications & Standards:
    RoHS Compliance
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 5052178407919
    EAN: 5052178407919
    UNSPSC: 43211701
