Datalogic Heron – Barcode Scanner – 1D

Part Number: 901801000
Model: Heron

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

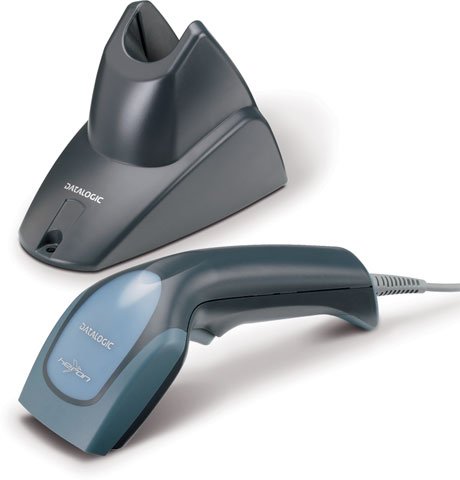

  Includes handsfree stand, and product reference guide. Color: Gray. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 90A051945), PS/2 (Part# 90A051360), or RS-232 Serial cables (Part# 90G001070) and a Power supply (Part# 90ACC1893).

Datalogic Heron Barcode Scanner Model Overview

The new Heron has been developed by Datalogic in order to satisfy all requirements at the POS, providing high performance and an innovative design suitable for small retail POS applications. The new Heron, based on the "Instinctive Reading Distance" concept (from near contact to over 20cm), includes the "green spot" (Datalogic patent application), which provides "good reading" feedback directly on the code, where the user usually tends to be looking.
Datalogic 901801000 Barcode Scanner Overview

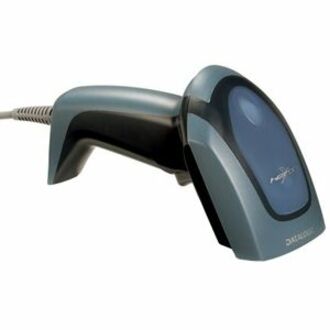

Heron D130 Bar Code Reader is a handheld scanner, lightweight and ergonomic. It has a high first pass rate, Intuitive aiming in hands-free applications and complete data formatting and data editing.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • EAN-128
  • Code 128
  • Code 93
  • Codabar
  • Telepen
  • Plessey
  • Code 49
  • Code MSI
  • Code Delta IBM
  • Code 11
  • Code 16K
  • ISBN/ISSN
  • ISBT 128
  • RSS Variants
  • Interleaved 2 of 5
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
256 scan/s
Maximum Scan Resolution:
4 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
5.65 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Wand Emulation
  • Keyboard Wedge
  • Certifications & Standards:
    RoHS Compliance
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 5052178189914
    EAN: 5052178189914
    UNSPSC: 43211701
