Datalogic 901711000 Barcode Scanner

The Datalogic 901711000 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Gryphon - 2D Scanner only with image capture. Cable not included. Color: gray
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 270 scan/s
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • A trustworthy linear image scanning provides solid state barcode reading
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote

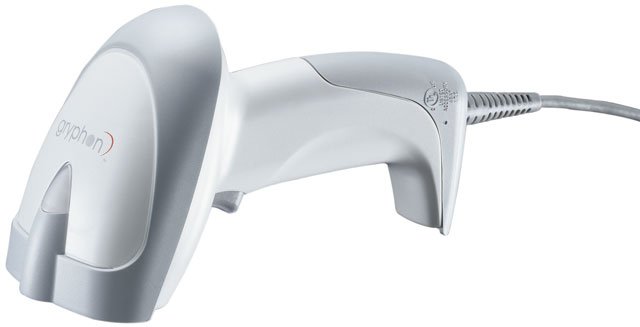

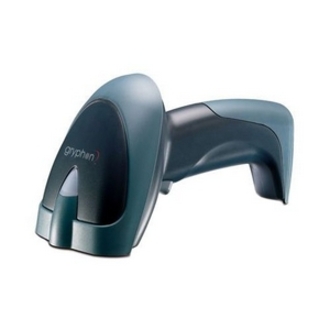

Datalogic Gryphon Barcode Scanner Model Overview
The Datalogic Gryphon reader series has been developed to provide outstanding reading performance and excellent ergonomic design combined with unmatched durability. The balance of top-of-the-range features and extreme versatility of the Datalogic Gryphon makes it the ultimate solution for many applications in retail as well as in light industrial environments where low resolution and/or damaged codes need to be read without problems. The optimized optics of the Datalogic Gryphon series allow reading of the most popular standard codes with superior depths of field from near contact to over 43 cm (long range version). The "green spot" produced by the Datalogic Gryphon provides "good reading" feedback directly on the code, useful in under-lighted or noisy environments.
Datalogic 901711000 Barcode Scanner Overview

The Gryphon D432 performs omnidirectional reading on a wide range of symbologies from the most common 1D and 2D codes to stacked and postal codes, improving productivity and efficiency in a wide range of applications. In fact, with the Gryphon 2D, the user captures the whole image of the object to be identified no matter how it is orientated, thus avoiding any alignment constraint between the reader and the symbol to be read.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 39
  • Code 32
  • Code 128
  • EAN-128
  • Code 93
  • UPC/EAN/JAN
  • RSS
  • PDF 417
  • DataMatrix (ECC 2000)
  • QR Code
  • Composite Code
  • MacroPDF
  • Micro PDF
  • MaxiCode
  • Postnet
  • PLANET
  • Japan Postal
  • Australian Post
  • Kix
  • Royal Mail Code (RM4SCC)
  • Industrial 2 of 5
  • Codabar
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 70mm - 135mm@5mil - Code 39
  • 65mm - 310mm@20mil - Code 39
  • 65mm - 245mm@13mil - EAN13
  • 115mm - 300mm@20mil - POSTNET
  • 80mm - 140mm@5mil - PDF417
  • 55mm - [email protected] - PDF417
  • 35mm - 225mm@10mil - PDF417
  • 85mm - [email protected] - Data Matrix
  • 55mm - 150mm@10mil - Data Matrix
  • 55mm - 205mm@15mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
7"
Width:
3.2"
Depth:
3.9"
Weight (Approximate):
6.98 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Certifications & Standards:
    • RoHS Compliance

    Laser Classification

    • Class 2 IEC 825-1
    • Class 2 CDRH
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic 901711000 Barcode Scanner is also known as DTL-901711000 or 901711000.
