Datalogic 901691004 Barcode Scanner

The Datalogic 901691004 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

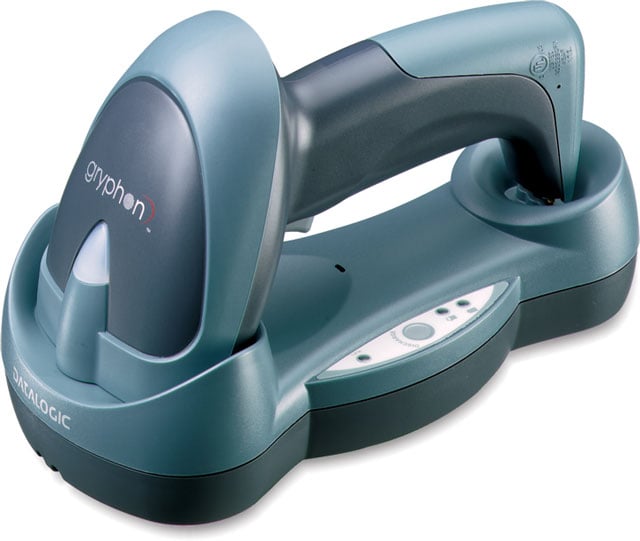

Datalogic Gryphon - BT100 CSR Cordless System
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 270 scan/s
  • Charge Couple Device imager has no moving parts, hence is less susceptible to damage or failure
  • LED aimer is a perfect choice for patient-facing applications
  • Increase productivity and performance by excluding the cable
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
Read More
Discontinued Need Assistance?
Add to Quote

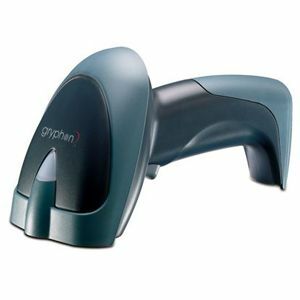

Datalogic Gryphon Barcode Scanner Model Overview
The Datalogic Gryphon Bluetooth is the newest member of the successful Datalogic Gryphon mobile family. They share the same powerful architecture of the other models with a special addition: the latest innovation in the wireless communication, Bluetooth technology. This technology provides the operator with wider mobility and no cable constraint. Bluetooth is a standard defined worldwide, and it allows various devices manufactured by different companies to easily connect and communicate with each other. The optimized optics of the Datalogic Gryphon Bluetooth allow reading of the most popular standard codes with superior depths of field from near contact to over 43 cm (long range version). The "green spot" produced by the Datalogic Gryphon Bluetooth provides "good reading" feedback directly on the code, useful in under-lighted or noisy environments.
Datalogic 901691004 Barcode Scanner Overview

The versatile and high performance Gryphon family of products added mobility operation through the Industry Class I Bluetooth 1.2 standard, can be connected to any PC, laptop, printer, PDA, or mobile phone, based on the same standard. Linear, PDF417, RSS bar code decoding.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • RSS variants
  • 2/5 family
  • Code 39 (plus Code 32, Cip 39)
  • EAN/UPC
  • ISBN/ISSN
  • EAN 128
  • Code 128
  • ISBT 128
  • Code 93
  • Code 11
  • CODABAR
  • TELEPEN
  • PLESSEY
  • Code MSI
  • Code Delta IBM
  • Code 16K
  • Code 49
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
270 scan/s
Maximum Scan Resolution:
2.99 mil
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
  • RoHS Compliant
  • Environmental Protection IP30
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 901691004 Barcode Scanner is also known as DTL-901691004 or 901691004.
