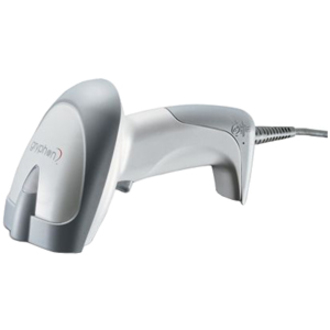

Datalogic 901661000 Barcode Scanner

The Datalogic 901661000 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Gryphon - PDF417 scanner. Order cables & power supply/AC adapter (for RS-232 operation) separately. See accessories.
Scanner Capability
1D
  • Scan barcodes with a staggering speed of 270 scan/s
  • Allows productive and precise reading of 1D barcodes
  • Charge Couple Device imager has no moving parts, hence is less susceptible to damage or failure
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Datalogic Gryphon Barcode Scanner Model Overview
The Datalogic Gryphon reader series has been developed to provide outstanding reading performance and excellent ergonomic design combined with unmatched durability. The balance of top-of-the-range features and extreme versatility of the Datalogic Gryphon makes it the ultimate solution for many applications in retail as well as in light industrial environments where low resolution and/or damaged codes need to be read without problems. The optimized optics of the Datalogic Gryphon series allow reading of the most popular standard codes with superior depths of field from near contact to over 43 cm (long range version). The "green spot" produced by the Datalogic Gryphon provides "good reading" feedback directly on the code, useful in under-lighted or noisy environments.
Datalogic 901661000 Barcode Scanner Overview

The new Gryphon Desk D200 Bar Code reader has been developed by Datalogic to provide optimised

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • EAN-128
  • Code 128
  • ISBT 128
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • ISBN/ISSN
  • Code 93
  • Code 11
  • Codabar
  • Telepen
  • Plessey
  • Code MSI
  • Code Delta IBM
  • GS1 Databar
  • Interleaved 2 of 5
  • Code 16K
  • Code 49
  • PDF 417
Image Sensor Type:
CCD
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
6.35 oz
Miscellaneous
Additional Information:

Interfaces Supported:

  • USB
  • RS 232
  • Wedge

USB Cable separate

Certifications & Standards:

Envoirmental Protection

IP30
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 901661000 Barcode Scanner is also known as 901661000
