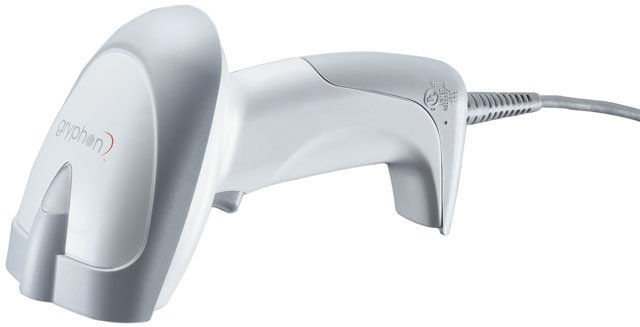

Datalogic 901651110 Barcode Scanner

Datalogic GD4330-BKK1 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic GD4330-BKK1 Barcode Scanner.
Datalogic Gryphon - USB kit, with scanner and USB cable. Color: Gray
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 270 scan/s
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • A trustworthy linear image scanning provides solid state barcode reading
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued See Replacement
Add to Quote
Datalogic Gryphon Barcode Scanner Model Overview
The Datalogic Gryphon reader series has been developed to provide outstanding reading performance and excellent ergonomic design combined with unmatched durability. The balance of top-of-the-range features and extreme versatility of the Datalogic Gryphon makes it the ultimate solution for many applications in retail as well as in light industrial environments where low resolution and/or damaged codes need to be read without problems. The optimized optics of the Datalogic Gryphon series allow reading of the most popular standard codes with superior depths of field from near contact to over 43 cm (long range version). The "green spot" produced by the Datalogic Gryphon provides "good reading" feedback directly on the code, useful in under-lighted or noisy environments.
Datalogic 901651110 Barcode Scanner Overview

The Gryphon D130 handheld scanner family of products builds on linear and full imaging technologies. There are models for reading 1D bar codes, 1D and PDF417/GS1 Databar, all 1D, PDF417/GS1 Databar and 2D bar codes. Additionally, an ESD version is designed to meet the need for clean room/light industrial environments. Plug and play with enhanced multi-standard architecture, and is ergonomic and user-friendly for intuitive operation. Its modular design is open to upgrades.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • ISBN/ISSN
  • EAN-128
  • Code 128
  • ISBT 128
  • Code 11
  • Code 93
  • Codabar
  • Telepen
  • Plessey
  • Code MSI
  • GS1 Databar
  • Code Delta IBM
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Weight (Approximate):
6.35 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • USB
  • Keyboard Wedge
  • Wand Emulation

USB Cable separate

Certifications & Standards:
  • RoHS Compliance
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 901651110 Barcode Scanner is also known as DTL-901651110 or 901651110.
