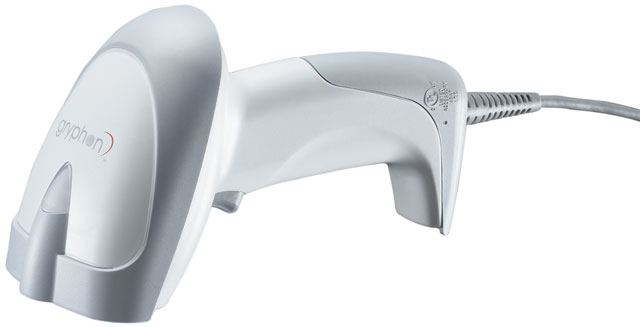

Datalogic 901651094 Barcode Scanner

Datalogic GD4130-BK Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic GD4130-BK Barcode Scanner.
Datalogic Gryphon - scanner only, D130 version, cables not included. See accessories. Color: Gray.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 270 scan/s
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Manage your business needs with an economical CCD imager that devotes less time for data entry
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Datalogic Gryphon Barcode Scanner Model Overview
The Datalogic Gryphon reader series has been developed to provide outstanding reading performance and excellent ergonomic design combined with unmatched durability. The balance of top-of-the-range features and extreme versatility of the Datalogic Gryphon makes it the ultimate solution for many applications in retail as well as in light industrial environments where low resolution and/or damaged codes need to be read without problems. The optimized optics of the Datalogic Gryphon series allow reading of the most popular standard codes with superior depths of field from near contact to over 43 cm (long range version). The "green spot" produced by the Datalogic Gryphon provides "good reading" feedback directly on the code, useful in under-lighted or noisy environments.
Datalogic 901651094 Barcode Scanner Overview

Gryphon Desk D130 Bar Code Reader builds on linear and full imaging technologies. It is ergonomic and user-friendly for intuitive operation. Its modular design is open to upgrades.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • EAN-128
  • Code 128
  • ISBT 128
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • ISBN/ISSN
  • Code 93
  • Code 11
  • Codabar
  • Telepen
  • Plessey
  • Code MSI
  • Code Delta IBM
  • GS1 Databar
  • Interleaved 2 of 5
Image Sensor Type:
CCD
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Weight (Approximate):
40 lb
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge
  • Wand Emulation
  • Certifications & Standards:
    RoHS Compliance
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0009016510947
    UPC: 009016510947
    EAN: 0009016510947
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic 901651094 Barcode Scanner is also known as DTL-901651094 or 901651094.
