Datalogic Lynx BT – Barcode Scanner – 1D

Part Number: 901601042
Model: Lynx BT

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

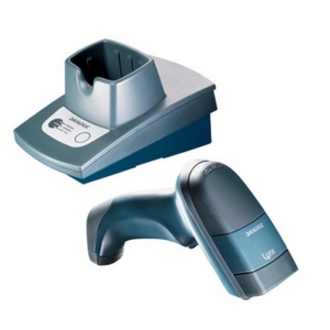

  BT432 imager, includes scanner and base unit. Interface cable and power supply not included.

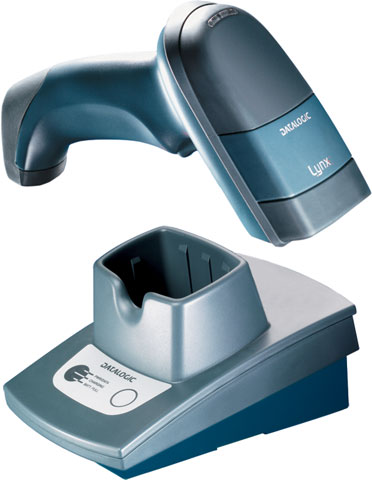

Datalogic Lynx BT Barcode Scanner Model Overview

The Datalogic Lynx BT handheld reader is the natural evolution of the consolidated Datalogic Scanning experience in 2D-CMOS readers. It frees the operator from cable entanglement thanks to Bluetooth wireless technology radio communication. In fact, in most shop floor, warehouse management and parcel sorting applications as well as in postal environments, the operator needs to move freely around the work place without having to worry about a twisted and/or entangled cable. The Lynx BT reader, compliant and certified for the Bluetooth wireless technology 1.2 standard, is the right answer for this need.
Datalogic 901601042 Barcode Scanner Overview

The Lynx BT432 is the natural evolution of the consolidated Datalogic experience in 2D-CMOS readers. It frees the operator from cable entanglement due to Bluetooth radio communication. In fact, in most shop floor, warehouse management and parcel sorting applications, as well as in postal environments, the operator needs to move freely around the work place without having to worry about a twisted and/or entangled cable.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 128
  • Code 39
  • EAN-128
  • Code 32
  • Code 93
  • UPC/EAN/JAN
  • Codabar
  • RSS
  • PDF 417
  • QR Code
  • Composite Code
  • Royal Mail Code (RM4SCC)
  • Postnet
  • PLANET
  • Japanese Post
  • Australian Post
  • Kix
  • Royal Mail Code (RM4SCC)
Light Source:
Laser
Image Sensor Type:
CMOS
Maximum Scan Resolution:
6.60 mil
Scan Pattern:
Omni-directional
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
11.82 oz
Miscellaneous
Additional Information:

Interface Option:

  • USB
  • Serial
  • Keyboard Wedge
  • Certifications & Standards:

    Laser Class:

    • Class 2 (IEC 825-1) and CDRH
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic 901601042 Barcode Scanner is also known as DTL-901601042 or 901601042.
