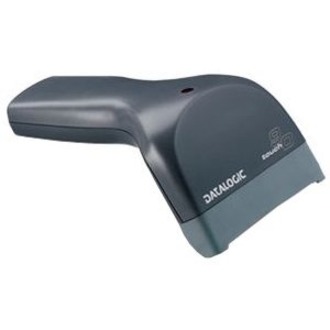

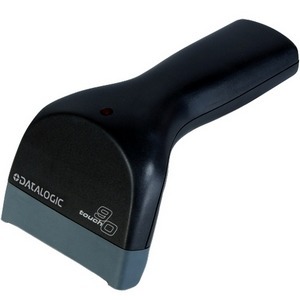

Datalogic 901201241 Barcode Scanner

Datalogic TD1120-BK-90 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic TD1120-BK-90 Barcode Scanner.
Datalogic Touch - Touch 90 Light CCD Contact Scanner with USB interface. Cable not included, see accessories.
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 256 scan/s
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • A trustworthy linear image scanning provides solid state barcode reading
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued See Replacement
Add to Quote
Datalogic Touch Barcode Scanner Model Overview
The Datalogic Touch contact reader is a cost-effective and high-performance scanner that features multiple interfaces. The Touch scans 256 times per second making it quick even when reading damaged codes. The Touch has a choice for every application: the Touch 65 features improved resolution while the Touch 90 features a wider scan area. Both use "Puzzle Solver" technology to combine and decode partial data from multiple scans, increasing the speed of successful results. The Pro EAS version features Electronic Article Surveillance (EAS) technology which allows scanning and EAS label deactivation in one step.
Datalogic 901201241 Barcode Scanner Overview

The TOUCH 90 light Linear Imager contact readers represent the ideal product whenever a cost-effective solution is required, without compromising reading performance and product quality. Touch 90 Light provides USB or PS2 wedge and RS-232 single models. A scan rate of 256 scans/sec guarantees outstanding performance in terms of reading promptness, especially on poorly printed or damaged codes, where several decoding. Datalogic Scanning, the global manufacturer of Linear Imager and Laser bar code readers, offers a wide range of Hand-Held products particularly suited for Document Handling and Retail applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Code 39
  • Code 32
  • Industrial 2 of 5
  • Code 128
  • EAN-128
  • Codabar
  • ISBN/ISSN
  • Code 93
  • ISBT 128
  • MSI
  • EAN/UPC
  • Code CIP 39
  • Telepen
  • Code 11
  • Code 16K
  • Code 49
  • GS1 Databar
  • Delta IBM
  • Interleaved 2 of 5
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
256 scan/s
Maximum Scan Resolution:
5 mil
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6.9"
Width:
3.9"
Depth:
3.1"
Weight (Approximate):
6.88 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliance
Environmentally Friendly:
Yes
Item Numbers
GTIN: 5051964439974, 5052178413514
EAN: 5051964439974, 5052178413514
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 901201241 Barcode Scanner is also known as DTL-901201241 or 901201241.
