Datalogic 855003201-0023010R Barcode Scanner

The Datalogic 855003201-0023010R Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 8500Xt - Datalogic Magellan 8504XT High Performance In-Counter Scanner and Scanner/Scale - Cable Connectivity - 6" Scan Distance - 1D - Omni-directional - USB
Form Factor
In Counter
Scanner Capability
1D
Scanner Type
CCD, Imager
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Allows productive and precise reading of 1D barcodes
Read More

Need a different version? See all Datalogic Magellan 8500Xt Barcode Scanners

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Datalogic 855003201-0023010R Barcode Scanner
Datalogic 855003201-0023010R Barcode Scanner
Datalogic 855003201-0023010R Barcode Scanner
Datalogic 855003201-0023010R Barcode Scanner
Datalogic 855003201-0023010R Barcode Scanner
Datalogic 855003201-0023010R Barcode Scanner
Datalogic 855003201-0023010R Barcode Scanner Datalogic 855003201-0023010R Barcode Scanner Datalogic 855003201-0023010R Barcode Scanner Datalogic 855003201-0023010R Barcode Scanner Datalogic 855003201-0023010R Barcode Scanner Datalogic 855003201-0023010R Barcode Scanner
Full specifications (PDF)

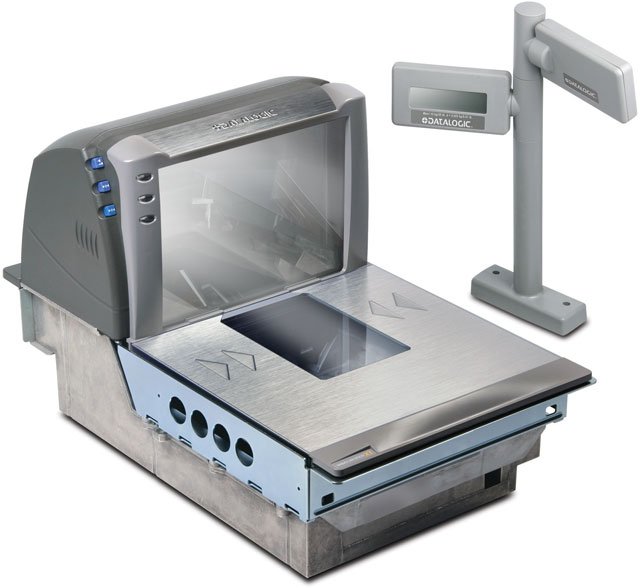

Datalogic Magellan 8500Xt Barcode Scanner Model Overview
The Datalogic Magellan 8500Xt builds on the success of the Magellan 8500. The Magellan 8500Xt features 64 scan lines that use Datalogic's six-sided SurroundScan technology at 6400 scanns per second for fast, accurate reading. The Magellan 8500Xt comes in both DLC and Sapphire tops, short/long platter length and either scanner only or scanner/scale configurations.
Datalogic 855003201-0023010R Barcode Scanner Overview

The Magellan 8500Xt scanner/scales are the culmination of recent developments by Datalogic ADC in high-performance fixed position scanning for the Retail Industry. No other bar code scanner designed for high volume retail performs better, has better reliability, or has the combination of features that translate into a measurable Return on Investment (ROI) than the Magellan 8500Xt products. The Magellan 8500Xt scanner/scale inherits the Magellan brand's renowned reputation for performance and reliability that has made Magellan the number one high-performance retail scanner brand in the world.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Scan Pattern:
Omni-directional
Scanning Distance:
6"
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
In-counter
Height:
7"
Width:
11.5"
Depth:
5"
Weight (Approximate):
26 lb
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic 855003201-0023010R Barcode Scanner is also known as DTL-5003201-0023010R or 8550032010023010R.
