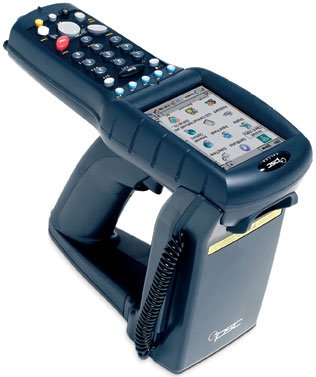

Datalogic 5500-11201-10000 RFID Reader

Part Number: 5500-11201-10000
Model: Falcon 5500
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Light Source
Laser
Scanner Range
Standard Range
Barcode Symbology Supported
CodabarCode 39Code 93Code 128EAN-8EAN-13UPC-AUPC-EMSITriopticMatrix 2 of 5RSS-14RSS-ExpandedRSS-LimitedInterleaved 2 of 5Pharmacode 39Standard 2 of 5UPC/EAN Extensions

Product Description:

  Datalogic Falcon 5500 RFID Mobile Computer - Intel XScale 400 MHz - 64 MB RAM - 64 MB Flash - 3.5" LCD - 26 Keys - Alphanumeric Keyboard - Wireless LAN
Explore all Datalogic Falcon 5500 RFID Readers
Add to Quote
Datalogic 5500-11201-10000 RFID Reader
Datalogic 5500-11201-10000 RFID Reader
Datalogic 5500-11201-10000 RFID Reader Datalogic 5500-11201-10000 RFID Reader
Full specifications (PDF)

Datalogic Falcon 5500 RFID Reader Model Overview

The new Falcon 5500 will be Datalogic's first EPC mobile terminal, using industrial-strength design elements to maximize durability. Handheld RFID readers like the Falcon 5500 are used throughout the supply chain, including in the warehouse, during transportation and on the sales floor. The Falcon 5500 will use an open system architecture and feature both Class 0 and Class 1 configurations. Check back soon for the official release of the Datalogic Falcon 5500 !
Datalogic 5500-11201-10000 RFID Reader Overview

The Falcon 5500 provides a flexible tool that quickly and accurately inventories RFID tagged merchandise at the item level. The device is targeted at specialty retailers implementing new ways of improving the consumer experience through inventory management. Process innovation allows this device to aid in reducing of out-of-stocks, increasing inventory turns, and improving order-fill rates. The Falcon 5500 is a Mobile Hybrid Computer combining bar code and multi protocol UHF RFID data capture capabilities in a flexible wireless device.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • UPC-A
  • UPC-E
  • MSI
  • Trioptic
  • Matrix 2 of 5
  • RSS-14
  • RSS-Expanded
  • RSS-Limited
  • Interleaved 2 of 5
  • Pharmacode 39
  • Standard 2 of 5
  • UPC/EAN Extensions
Drop Specification (To Concrete):
48"
RFID
Maximum Read Distance:
60"
Maximum Write Distance:
12"
Maximum Coverage Angle:
180°
Minimum Operating Frequency:
902 MHz
Maximum Operating Frequency:
928 MHz
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
400 MHz
Memory
Standard Memory:
64 MB
Flash Memory:
64 MB
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
320 x 240
Display Color:
Color
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
26
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b
I/O Expansions
Expansion Slot Type:
  • PC Card Type I
  • PC Card Type II
Software
Operating System:
Windows CE .NET 5.0
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Height:
1.7"
Width:
3.4"
Length:
9.2"
Weight (Approximate):
2.69 lb
Miscellaneous
Additional Information:
  • RFID Rechargeable Captive Lithium Ion Battery Pack (2200 mAh)

Radio Support:

  • Cisco Aironet

Communication Ports:

  • USB 1.1
  • RS-232
Certifications & Standards:
  • EPC Class 0
  • EPC Class 1
  • EPC Class 1 Generation 2

Electrical:

  • EN60950
  • UL60950
  • CSA60950

Battery:

  • IATA/UN

Emissions:

  • FCC Part 15C
  • FCC Part 15B

Radio:

  • FCC Part 15: 247

RFID:

  • FCC Part 15C Rules and IC

Laser Classification:

  • CDRH Class II
  • IEC 60825-1, Class 2
Item Numbers
UNSPSC: 43211715
