You've just added this product to the cart:

Datalogic 4420-11221 Mobile Handheld Computer

Datalogic Falcon 4420 - Falcon 4420 Mobile Computer - Intel XScale 400 MHz - 64 MB RAM - 64 MB Flash - 3.5" LCD - 52 Keys - Alphanumeric Keyboard - Wireless LAN
  • Improve work efficiency with laser scanning engine
  • 64 MB RAM / 64 MB flash memory increases business esteem significantly by guaranteeing greatest user efficiency
  • 3.5" QVGA display screen allows you to execute two applications at the same time
  • Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices
Read More

Full specifications (PDF)

Datalogic 4420-11221 Overview

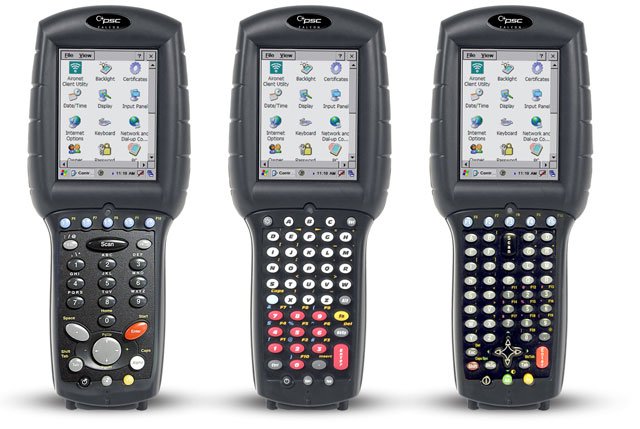

The Falcon 4420 mobile computer is an ergonomic, rugged portable data terminal combining the flexibility of the Windows CE.NET operating system with bar code scanning and the highest performing Intel PXA255 XScale microprocessor. The Falcon 4420 with its overmolded enclosure is designed for warehouse, distribution center, and retail in store environments, where maximum performance is required in a rugged yet ergonomic form fact.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI/PLESSEY
  • Pharmacode 39
  • Standard 2 of 5
  • Trioptic
  • UPC-A
  • UPC-E
  • UPC/EAN Extensions
  • Code 32
  • Code 16K
  • Code 39 Full ASCII
  • EAN-UCC Composite
  • RSS-Limited
  • RSS-14
  • Matrix 2 of 5
Electrostatic Discharge (ESD):
  • 15 kV DC Air Discharge
  • 8 kV DC Contact Discharge
Drop Specification:
60" To Concrete
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
400 MHz
Memory
Standard Memory:
64 MB
Flash Memory:
64 MB
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
320 x 240
Display Color:
Color
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
52
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b
Antenna Form Factor:
Internal
Wireless Security:
  • Cisco Leap
  • Cisco Peap
  • EAP-TLS+ Microsoft PEAP
  • EAP-FAST
I/O Expansions
Expansion Slot Type:
PC Card Type II
Software
Operating System:
Windows CE .NET
Battery Information
Battery Capacity:
2000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
7.2"
Width:
3.4"
Length:
8.9"
Weight (Approximate):
1.21 lb
Miscellaneous
Package Contents:
  • Falcon 4420 Mobile Computer
  • Battery
  • Falcon Management Utility
  • Falcon Desktop Utility Software<
Certifications & Standards:

Electrical:

  • EN60950
  • UL60950
  • CSA60950

Battery:

  • IATA/UN

Emissions:

  • FCC Part 15C
  • EN55022
  • VCCI
  • ICES-003
  • CNS 13438
  • AS/NZS 3548

Laser classification:

  • CDRH Class II
  • IEC 60825-1 Class 2
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
