Datalogic 42-011-TG Mobile Computer

The Datalogic 42-011-TG Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

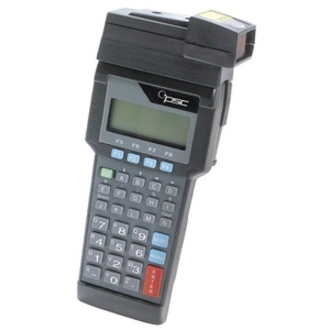

Datalogic Topgun - Datalogic Falcon TopGun Portable Data Terminal - 2 MB RAM - 128 KB Flash - LCD - 34 Keys - Alphanumeric Keyboard
  • Alphanumeric keypad allows prompt data input
  • Laser scan engine guarantees rapid error free data entry
  • Proprietary OS OS makes you more productive and creative
  • 2 MB RAM / 128 KB flash
  • Batch connectivity - Gathers data and uploads it back to the network all at once
Read More
Discontinued Need Assistance?
Add to Quote
Datalogic Topgun Mobile Computer Model Overview

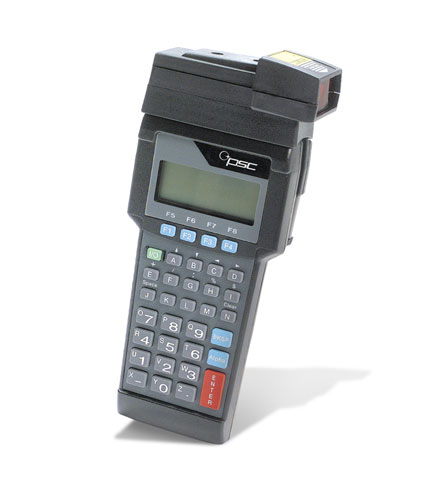

Scanning barcodes on flat, curved, or irregular surfaces at distances from 2.5 to 36.0"/6.0 to 91.0 cm is easy with Topgun. Its rugged one-handed design gives you durability, reliable performance, and freedom of movement, even in the most demanding industrial work environments. Topgun consists of a PT 2000 portable data collection terminal integrated with a TopGun laser module. Weighing 16 oz./480 g, including three AA batteries, Topgun is lightweight and easy to use. It operates like any other handheld laser - just aim it and pull the trigger.
Datalogic 42-011-TG Mobile Computer Overview

Scanning bar codes on flat, curved, or irregular surfaces at distances from 2.5 to 36.0"/6.0 to 91.0 cm is easy with TopGun. Its rugged one-handed design gives you durability, reliable performance, and freedom of movement, even in the most demanding industrial work environments.TopGun's balanced, ergonomic design quickly adapts for either right-or left-handed use. TopGun Portable Data Terminal is a cost-effective integrated laser scanning solution.

Technical Information
Connectivity Technology:
Batch
Light Source:
Laser
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • JAN-13
  • JAN-8
  • Code 128
  • Code 39
  • Code 93
  • Code 39 Full ASCII
  • Codabar
  • Interleaved 2 of 5
Drop Specification (To Concrete):
48"
Memory
Standard Memory:
2 MB
Flash Memory:
128 KB
Display & Graphics
Display Screen Type:
LCD
Number of Lines:
4
Number of Characters:
16
Keyboard/Keypad
Number of Keys:
34
Keyboard Type:
Alphanumeric
Software
Operating System:
Proprietary OS
Physical Characteristics
Width:
4"
Depth:
1.8"
Length:
9"
Weight (Approximate):
16 oz
Miscellaneous
Package Contents:
  • Falcon TopGun Portable Data Terminal
  • Alkaline Batteries
  • PAL Software
  • 9-Pin Serial Cable<
Additional Information:
  • 16-bit proprietary operating system
  • 16-bit CMOS Microprocessor
  • Four programmable function keys
Certifications & Standards:

Electrical:

  • Complies to CE

Emissions:

  • FCC Part 15 -Class A

Laser:

  • CDRH Class 2
  • IEC Laser Class 2
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Datalogic 42-011-TG Mobile Computer is also known as PSC-TG2MB or 42-011-TG.
