Datalogic 42-000-00 Mobile Handheld Computer
Datalogic 42-000-00 Mobile Handheld Computer
Datalogic PT2000 -
128KB RAM, 34 key, 4 line display. Includes alkaline batteries & 9-pin serial communications cable. Order cradle, cables & power supply separately. See accessories.
Full specifications (PDF)The flexibility to choose the appropriate input device for your application.

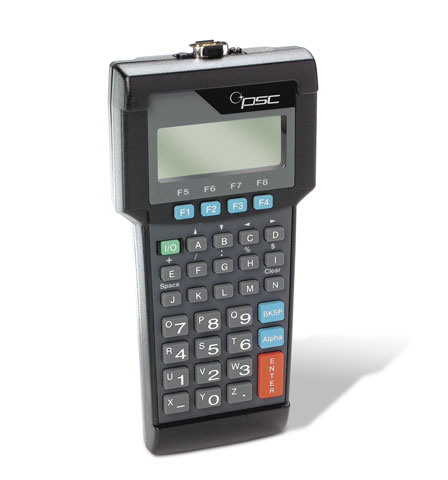

Small and lightweight, the PT 2000 is your answer to portable data collection. Its convenient size fits comfortably in your hand. Better yet, it weighs only 12 ounces (including batteries)! and it's loaded with all the features you require in a portable. Flexibility puts you in control. The PT 2000 gives you the flexibility to choose the appropriate input device for your application, whether it's a wand, CCD, 5V laser or I.D. badge scanner. Its 4-line-by-16-character LCD display provides easy readability, and 34 splash-resistant alphanumeric keys, including 4 programmable keys, give you the option of keying in data.
General Information
- Manufacturer:
- Product Line: PT2000
- Product Name:
- PT2000 Handheld Terminal
- PT2000 Portable Data Terminal
Technical Information
- Operating System: Proprietary 16-bit Proprietary
- Processor: 16-bit CMOS
- Data Collection Type: Batch
Physical Characteristics
- Display: Monochrome - 4 Lines x 16 Characters - Supertwist LCD
- Keyboard: 34 Key Alphanumeric Integrated
- Battery Type:
- Alkaline - Not Included
- Nickel Cadmium - Not Included
- Dimensions: 3.7" (94mm) x 7.4" (188mm) x 1.3" (33mm)
- Weight: 12 oz - With batteries
Other
- Package Contents:
- PT2000 Handheld Terminal
- Alkaline Batteries
- PAL Software
- 9PIN Serial Cable
- PSC Program Generator (PPG)
- PT2000 Portable Data Terminal
Environmental Conditions
- Environmental Sealing: None
- Temperature:
- -10°C (14°F) to 50°C (122°F) Operating
- -20°C (-4°F) to 70°C (158°F) Storage
- Humidity: 5 to 95% Non-condensing
- Drop Spec: 4' To Concrete multiple
Agency Approvals
- Agency Approvals:
- CE
- FCC Part 15 - Class A
Memory
- RAM Memory: 128KB
- Flash Memory: 128KB
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
| Brand | Datalogic |
| Model | PT 2000 |
| Operating System | Proprietary |
| RAM Memory | 128 KB |
| Display Resolution | 96 x 48 |
| Scanner Type | No Scanner |
| Data Collection Type | Batch |
The Datalogic 42-000-00 is also known as Data Logic PSC-PT2/128 or 4200000 .
