Datalogic 345-1101-015 Mobile Computer

The Datalogic 345-1101-015 Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Falcon 345 - Datalogic Falcon 345 Portable Data Terminal - 33 MHz - 8 MB RAM - 2 MB Flash - LCD - 25 Keys - Numeric Keyboard - Wireless LAN
  • Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices
  • Features numeric keypad to meet different client and application needs
  • Improve work efficiency with laser scanning engine
  • DOS OS offers free and complete DOS-compatible environment to run legacy softwares and support embedded systems
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
Read More
Discontinued Need Assistance?
Add to Quote

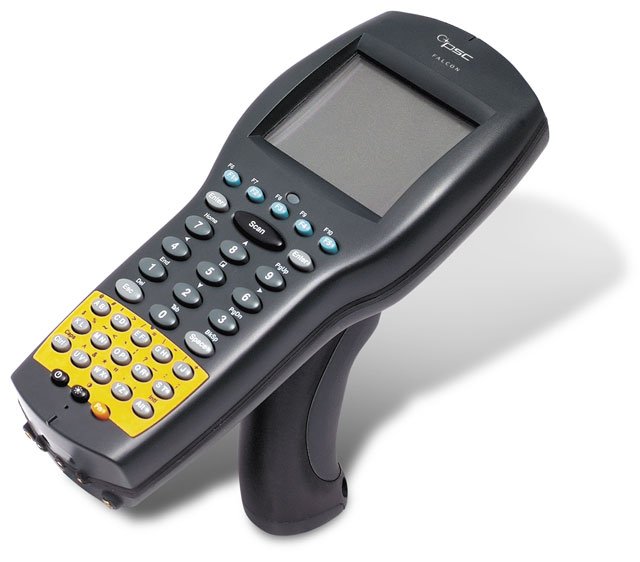

Datalogic Falcon 345 Mobile Computer Model Overview
The Falcon 345 sets the standard for flexibility when it comes to wireless communications, providing connectivity for data collection applications where real-time information is critical. These sleek new portable terminals were ergonomically designed with the end-user in mind. They are the lightest weight unit in their class, only 16.3 oz./465 g. Engineered to reduce fatigue, this weight is ideally balanced over the hand using a form-fit rubber-grip handle. Combine this with an integrated scan trigger, a large 16-line back-lit display and a complete 38 key alphanumeric keypad and the user enjoys hours of high performance data collection.
Datalogic 345-1101-015 Mobile Computer Overview

The Falcon 345 Portable Data Terminal is the most feature-rich members of the growing family of Falcon industrial handheld data collection terminals from PSC. It was designed for easy integration in the supply chain of companies involved in logistics, manufacturing, warehousing and distribution, and in-store retail. This sleek portable terminal was ergonomically designed with the end-user in mind. It is the lightest weight unit in it's class, only 16.3 oz. / 465 g. Engineered to reduce fatigue, this weight is ideally balanced over the hand using a removeable form-fit rubber-grip handle. Combine this with an integrated scan trigger, a large 16-line back-lit display, three keypad options, and the user enjoys hours of high performance data collection.

Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN Add-ons
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • Standard 2 of 5
  • Code 39 Full ASCII
  • Matrix 2 of 5
  • Code 93
  • MSI/PLESSEY
  • Code 11
  • Codabar
  • ISBN Conversion
  • Label Codes 4/5
  • Ames
Drop Specification (To Concrete):
48"
Processor & Chipset
Processor Speed:
33 MHz
Memory
Standard Memory:
8 MB
Flash Memory:
2 MB
Display & Graphics
Screen Resolution:
128 x 160
Display Screen Type:
LCD
Number of Lines:
16
Number of Characters:
26
Keyboard/Keypad
Number of Keys:
25
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b
Antenna Form Factor:
Internal
I/O Expansions
Expansion Slot Type:
PC Card Type II
Software
Operating System:
DOS
Physical Characteristics
Height:
1.6"
Width:
3.4"
Length:
7.8"
Weight (Approximate):
1.08 lb
Miscellaneous
Additional Information:
  • RF Card

IR Communication Ports:

  • Communication with Falcon IR dock
  • Supports IR portable printer
  • IrDA compatible

Speaker:

  • Programmable for volume, duration and pitch
  • 84 dB @ 24"
Certifications & Standards:

Electrical:

  • CE

Emissions:

  • FCC Part 15 - Class A

Laser Classification:

  • CDRH Class II
  • IEC 60825 Class 2
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Datalogic 345-1101-015 Mobile Computer is also known as PSC-3451101015 or 345-1101-015.
