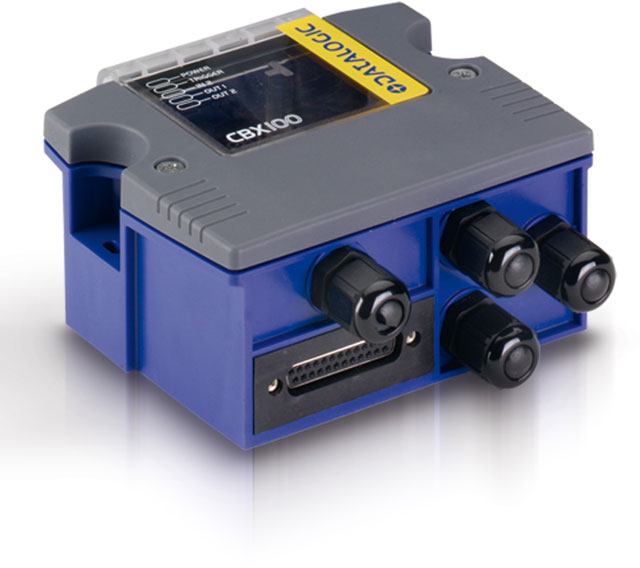

Datalogic CBX Series Fixed Barcode Scanner

Datalogic CBX Series  -  The Datalogic CBX Series is a connectivity device designed to simplify and speed-up cabling operations during the installation of Datalogic Automation devices. Thanks to its modular concept and the complete range of optional modules, any installation, configuration and maintenance operation is now accomplished faster than ever.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$308.75
Item on backorder — chat for lead time
Datalogic CBX Series Fixed Barcode Scanner
Datalogic CBX Series Fixed Barcode Scanner
Datalogic CBX Series Fixed Barcode Scanner Datalogic CBX Series Fixed Barcode Scanner
Accessories For Datalogic CBX Series Fixed Barcode Scanner

Category

Datalogic CBX Series Fixed Barcode Scanner Options

Frequently Asked Questions

The DataLogic CBX Series is an industrial connection box designed to simplify and speed up installation, configuration, and maintenance tasks for DataLogic Automation's 1D/2D barcode code readers. It features a modular concept with optional connectivity modules that support the most common fieldbus systems while extending communication capabilities and reducing overall cost of ownership.

The CBX Series supports multiple communication interfaces including Ethernet 10/100/1000 Mbit/s with TCP/IP, UDP, FTP, and fieldbus protocols like PROFINET IO, Ethernet IP, and Modbus TCP. It also includes Serial RS232/RS422FD up to 115.2 Kbit/s plus an auxiliary Serial RS232 interface, along with OPC UA and DataLogic ID-NET™ networking capabilities.

Yes, the CBX Series is built for industrial environments with IP65 (NEMA 4) protection class rating and an operating temperature range up to +50°C (+122°F). It features industrial-grade plastic and rubber materials designed to withstand demanding warehouse and manufacturing conditions.

The CBX Series includes 2 opto-coupled digital inputs (polarity insensitive, max 30 Vdc, max 10 mA input current) and 3 configurable digital outputs that support NPN, PNP, and PP configurations with short-circuit protection (max 24 Vdc, max 100 mA load current). The first 2 outputs are opto-coupled when using the CBX connection box.

The CBX Series reduces installation time through standardized pinout wiring, accessible spring clamps for easy cabling, and optional adapters for fast mounting to Bosch profiles and DIN rail systems. For maintenance, it offers fast access to service interfaces and an optional Backup module that simplifies configuration backup and restore procedures while minimizing system downtime during replacements.

We offer DataLogic CBX Series Service Contracts to protect your investment and ensure optimal scanner performance. For help choosing the right service plan for your CBX Series fixed barcode scanner, contact us today via phone or use our online chat—our expert team is ready to assist with your specific needs.

Full specifications (PDF)

Datalogic CBX Series Fixed Barcode Scanner Model Overview

Datalogic's CBX Series Industrial Connection Boxes are the ideal connectivity solution designed to enhance the installation, configuration, and maintenance of 1D/2D code readers. With their extremely low cost of ownership, these boxes significantly minimize installation time and reduce system downtime during replacements. The rugged design features IP65 protection, ensuring reliable performance even in harsh industrial environments. Easy access to through-holes and standard pinout configurations allow for quick installation and wiring, making the CBX Series a smart choice for manufacturing and warehousing applications.
Key features:
  • Cost-effective with low ownership costs
  • Ease of installation with accessible mounting options
  • Simplified wiring through standard pinouts and spring clamps
  • Reliable Backup and Restore feature for quick replacements
  • Open architecture supporting common networks like Ethernet TCP/IP and Profibus
  • Multilanguage Display for efficient monitoring and troubleshooting
  • Visible Power and I/O indicators with a convenient power switch

Specifications:
  • Models: CBX100, CBX500, CBX100LT
  • Dimensions: CBX100 (128 x 137 x 62 mm), CBX500 (193 x 180 x 71 mm)
  • Weight: CBX100 (380 g), CBX500 (780 g)
  • Power Supply: 10 to 30 VDC
  • Power Consumption: 2.5 W max
  • Operating Temperature: CBX100 (0 to 50 °C), CBX100LT (-35°C to +50 °C)
  • Protection Class: IP65 (NEMA 4)
  • Communication Protocol: Datalogic Application Driver (DAD Driver)
  • Compatibility: Supports various Datalogic devices
