Datacard 512648-002 ID Card Printer
Full specifications (PDF)

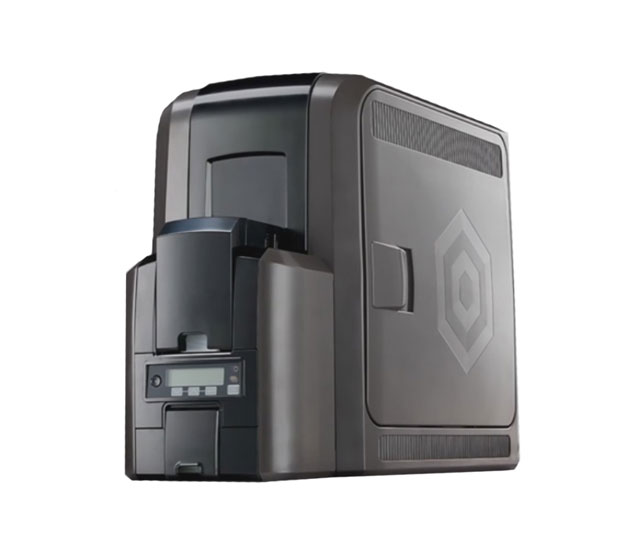

Datacard Artista CR805 ID Card Printer Model Overview
The Datacard (Entrust) CR805 is a pigment-ink retransfer ID card printer engineered for premium, photo-quality credentials and long-life durability. With true 600 dpi printing, over-the-edge coverage, and fine-line reproduction, the CR805 delivers lifelike images, crisp microtext, and accurate spot colors for corporate IDs, student badges, and high-assurance government cards. Modular options—including inline lamination, a tactile impression module, and multi-hopper input—let you scale durability, security, and throughput as your program grows, while issuance-security features such as secure boot and a TPM help protect keys, certificates, and the device itself.
Key features:
- Premium retransfer output: 600 dpi pigment ink with over-the-edge coverage for vibrant, long-lasting images on a wide range of card materials.
- Scalable durability & security: Add inline lamination (patch/overlay) and tactile impression to boost card life and anti-tamper/anti-counterfeit protection.
- Program-ready modularity: Single- or dual-sided printing, optional multi-hopper input, and field-upgradable mag-stripe and smart-card encoders.
- Issuance security architecture: Secure boot chain, TPM-based key storage, and locked supplies workflows to help safeguard the issuance environment.
- Desktop simplicity: Intuitive LCD interface, certified supplies, and standard USB/Ethernet connectivity for fast deployment and support.
Specifications:
- Print technology: Pigment-ink retransfer (CMYKP, with optional K or UV panels depending on ribbon)
- Resolution: 600 dpi; over-the-edge (full-bleed) coverage
- Print modes: Single-sided or dual-sided
- Throughput (typical): Single-sided CMYKP up to ~100 cards/hour; dual-sided CMYKP-KP up to ~66 cards/hour
- Color management: ICC “True Color” and legacy SR/CR modes
- Connectivity: USB; 10/100 Ethernet (IPv4/IPv6)
- Encoding options: Magnetic stripe; contact/contactless smart-card encoders (field upgradable)
- Security: Secure Boot, Trusted Platform Module (TPM), Kensington® lock support; optional printer lock
- Supplies: Certified pigment ribbons and retransfer film; cleaning cards/sleeves included with supply kits
- Modular add-ons: Card Lamination Module (CLM), Tactile Impression Module (TIM), multi-hopper input
- Use cases: Corporate ID, campus cards, driver/visitor credentials, healthcare, government, and financial instant issuance
Recommended Accessories
Category
- ID Card Laminate and Film (18)
Recommended Accessories for Model: Datacard 512648-002 ID Card Printer
Top ID Card Laminate and Film Purchased With Datacard 512648-002
-
Datacard 515626-003 Laminate and FilmLaminates and Films, Datacard, Retransfer Commercial Lamination Module, Single Laminator, Tactile Impressor (TI) Module for the CR805 PrinterShips from vendor — chat for lead time$4,095.00 -
Datacard 515626-004 Laminate and FilmLaminates and Films, Datacard, Retransfer Commercial Lamination Module, Dual Laminator, Tactile Impressor (TI) Module for the CR805 PrinterShips from vendor — chat for lead time$5,095.00 -
Datacard 515626-009 Laminate and FilmLaminates and Films, Datacard, Retransfer Commercial Lamination Module, Single Laminator, Locks, Tactile Impressor (TI) Module for the CR805 PrinterShips from vendor — chat for lead time$4,195.00
Frequently Asked Questions
What printing technology does the Datacard 512648-002 use?
The Datacard 512648-002 uses dye sublimation retransfer printing technology, which delivers photo-quality imagery with stunning resolution and extreme precision. This method allows for pigment-based inks that produce brilliant, eye-catching card designs with accurate color representation, including lifelike skin tones for professional photo IDs.
Can the Datacard 512648-002 print on both sides of a card?
Yes, the Datacard 512648-002 supports both one-sided and two-sided printing capabilities with over-the-edge full-card printing. This versatility allows you to create comprehensive ID cards with information and security features on both the front and back of the card.
What types of cards can this printer accept?
The Datacard 512648-002 accepts ISO ID-1/CR-80 size cards (3.370 in. x 2.125 in.) made from PVC, ABS, PET, PET-G, or Polycarbonate materials. The printer supports card thickness from 0.25 mm to 1.0 mm (10 mil to 40 mil), making it flexible for various card stock options.
What connectivity options are available for the Datacard 512648-002?
The Datacard 512648-002 offers USB 2.0 connectivity and Ethernet 10/100 Base-T bi-directional networking for flexible integration into your IT environment. It supports Microsoft Windows 2000, XP, and Windows Vista operating systems, with the ability to install up to seven printers per PC.
What security features does the Datacard 512648-002 include?
The Datacard 512648-002 includes IPSEC encrypted networking security to protect data transmission and electronic locks for cards and supplies to prevent unauthorized access. It also features security erase of black panel text on YMCK and YMCK-K ribbons for enhanced data protection.
What warranty coverage does the Datacard 512648-002 provide?
We offer a 24-month standard depot warranty for the printer and a lifetime printhead warranty, ensuring long-term protection for your investment. Contact us today to learn more about our warranty options and support services available from Barcodes Inc.
