Datacard 512643-030 ID Card Printer
Full specifications (PDF)

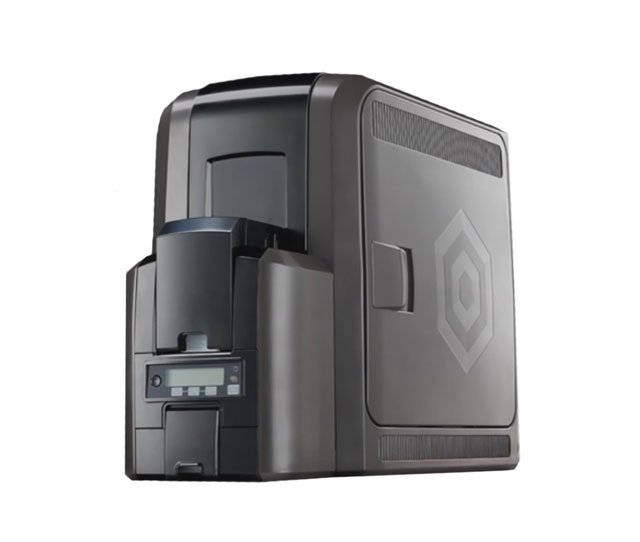

Datacard Artista CR805 ID Card Printer Model Overview
The Datacard (Entrust) CR805 is a pigment-ink retransfer ID card printer engineered for premium, photo-quality credentials and long-life durability. With true 600 dpi printing, over-the-edge coverage, and fine-line reproduction, the CR805 delivers lifelike images, crisp microtext, and accurate spot colors for corporate IDs, student badges, and high-assurance government cards. Modular options—including inline lamination, a tactile impression module, and multi-hopper input—let you scale durability, security, and throughput as your program grows, while issuance-security features such as secure boot and a TPM help protect keys, certificates, and the device itself.
Key features:
- Premium retransfer output: 600 dpi pigment ink with over-the-edge coverage for vibrant, long-lasting images on a wide range of card materials.
- Scalable durability & security: Add inline lamination (patch/overlay) and tactile impression to boost card life and anti-tamper/anti-counterfeit protection.
- Program-ready modularity: Single- or dual-sided printing, optional multi-hopper input, and field-upgradable mag-stripe and smart-card encoders.
- Issuance security architecture: Secure boot chain, TPM-based key storage, and locked supplies workflows to help safeguard the issuance environment.
- Desktop simplicity: Intuitive LCD interface, certified supplies, and standard USB/Ethernet connectivity for fast deployment and support.
Specifications:
- Print technology: Pigment-ink retransfer (CMYKP, with optional K or UV panels depending on ribbon)
- Resolution: 600 dpi; over-the-edge (full-bleed) coverage
- Print modes: Single-sided or dual-sided
- Throughput (typical): Single-sided CMYKP up to ~100 cards/hour; dual-sided CMYKP-KP up to ~66 cards/hour
- Color management: ICC “True Color” and legacy SR/CR modes
- Connectivity: USB; 10/100 Ethernet (IPv4/IPv6)
- Encoding options: Magnetic stripe; contact/contactless smart-card encoders (field upgradable)
- Security: Secure Boot, Trusted Platform Module (TPM), Kensington® lock support; optional printer lock
- Supplies: Certified pigment ribbons and retransfer film; cleaning cards/sleeves included with supply kits
- Modular add-ons: Card Lamination Module (CLM), Tactile Impression Module (TIM), multi-hopper input
- Use cases: Corporate ID, campus cards, driver/visitor credentials, healthcare, government, and financial instant issuance
Recommended Accessories
Category
- ID Card Laminate and Film (18)
Recommended Accessories for Model: Datacard 512643-030 ID Card Printer
Top ID Card Laminate and Film Purchased With Datacard 512643-030
-
Datacard 515626-003 Laminate and FilmLaminates and Films, Datacard, Retransfer Commercial Lamination Module, Single Laminator, Tactile Impressor (TI) Module for the CR805 PrinterShips from vendor — chat for lead time$4,095.00 -
Datacard 515626-004 Laminate and FilmLaminates and Films, Datacard, Retransfer Commercial Lamination Module, Dual Laminator, Tactile Impressor (TI) Module for the CR805 PrinterShips from vendor — chat for lead time$5,095.00 -
Datacard 515626-009 Laminate and FilmLaminates and Films, Datacard, Retransfer Commercial Lamination Module, Single Laminator, Locks, Tactile Impressor (TI) Module for the CR805 PrinterShips from vendor — chat for lead time$4,195.00
Frequently Asked Questions
What types of ID cards can the Datacard CR805 printer produce?
The CR805 delivers a complete on-demand card printing solution capable of producing virtually any type of card, including corporate badges, school IDs, driver's licenses, and other high-assurance IDs. Its versatility in card material handling and security features make it suitable for organizations needing diverse card applications for customers, citizens, and employees.
What encoding capabilities does the Datacard 512643-030 include?
This model features a DUALi Single Wire Contact/Contactless Encoder supporting ISO 7816, ISO 14443, Mifare, Desfire, and Felica standards, plus an ISO Magnetic Stripe encoder. This multi-standard encoding capability allows you to create cards compatible with various security and access control systems.
What print quality does the CR805 deliver?
The CR805 uses pigment ink to deliver photo-quality imagery with stunning resolution and extreme precision. The printer produces brilliant, eye-catching color designs with lifelike skin tones for accurate photo representation, ensuring your branded cards stand out from the crowd.
What is the card input capacity of this Datacard printer?
The Datacard CR805 comes equipped with a 125-card input hopper, providing adequate capacity for moderate to high-volume on-demand card printing operations without frequent reloading.
Is the Datacard CR805 a single-sided or dual-sided printer?
The Datacard 512643-030 is a single-sided retransfer printer, meaning it prints on one side of the card using retransfer technology for enhanced durability and design flexibility compared to direct-to-card printing methods.
