- 48 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
D-Link DXS-3350SR Data Networking
D-Link Networking Accessory Model Overview

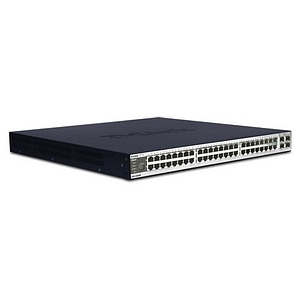

xStack DXS-3350SR Managed and Multilayer Switch is a set of Next Generation high performance stackable switches that deliver high scalability, wire-speed Gigabit performance, high availability, integrated 10-Gigabit stacking, redundant power option, and support for stacking in a ring or startopology. The xStack DXS-3350SR provides 48 built-in copper Gigabit ports, including four Combo SFP ports supporting either copper links or SFP modules for easy, flexible connection to fiber-based Gigabit media. In a ring stack it can provide up to 384 Gigabit ports, up to 40Gbps of stacking bandwidth per switch.
- D-Link SIM (Single IP Management)
- SNMP v.1, v.2c, v.3
- Web-based management
- Web GUI traffic monitoring
- Web-based MAC address browsing
- CLI (command line interface)
- RMON monitoring
- Telnet server (up to 8 sessions)
- CPU utilization monitoring
- Syslog
- Port Mirroring
VLAN:
- Port-based VLAN
- IEEE 802.1Q Tagged VLAN
- GARP/GVRP
- Maximum number of VLANs:
- Dynamic 4k
- Static 255
- 110 V AC
- 220 V AC
QoS/CoS:
- 8 Hardware Queues Strict Priority or Weight Round Robin Queue Scheduling
- Max units in a Stack Up to 12 Units Per Stack
- IEEE 802.3: Ethernet
- IEEE 802.3u: Fast Ethernet
- IEEE 802.3ab: Gigabit Ethernet
- IEEE 802.3z: Gigabit Ethernet
- IEEE 802.1d: Spanning Tree
- IEEE 802.1w: Rapid Spanning Tree
- IEEE 802.1s: Multiple Spanning Tree
- IEEE 802.1p: Priority Tags
- IEEE 802.1q: VLANs
- IEEE 802.1v: IPv6 VLAN
- IEEE 802.3ad: Link Aggregation Control
- IEEE 802.3x: Flow Control
- IEEE 802.1x: Port Based Authentication
- IEEE 802.1x: vMAC Based Authentication
IETF:
- RFC 1157 SNMP
- RFC 1112/2236 IGMPv1/2
- RFC 1757 RMON (4 Groups)
- RFC 1493 Bridge MIB
- RFC 1213 MIB II
- RFC 793 TCP
- RFC768 UDP
- RFC 826 ARP
- RFC 854 Telnet
- RFC 951 Bootp
- RFC 1058 RIP v1
- RFC 2453 RIP v2
- RFC 1850 OSPF
- RFC 2138 RADIUS
- RFC 2030 SNTP
Emissions:
- CE Mark
- FCC Class A
Safety:
- CSA+NRTL/C
