D-Link DSS-24+


0.0

(No reviews)

Be the first to

Write a Review

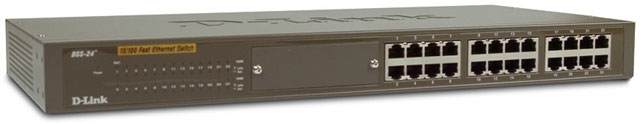

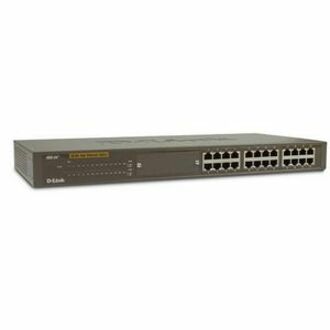

D-Link DSS-24+ - 24-Port, 10/100 Switch, 2 Optional Port 100BASE-FX Uplinks, 5.2Gbps, Auto Cable Detection, Rack Mountable or Desktop
Operational simplicity

The D-Link DSS-24+ is a high performance unmanaged Layer 2 Switch that provides users with 24 10/100Mbps Fast Ethernet ports and optional fiber uplinks for distant connections. The D-Link is designed to increase cable connectivity to distant servers or backbones, targeted for both small offices and small business environments. The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub.

General Information

  • Product Type: Ethernet Switch
  • Brand Name: D-Link
  • Manufacturer: D-Link Systems, Inc
  • Product Model: DSS-24+
  • Product Name: Ethernet Switch

Physical Characteristics

  • Height: 1.7"
  • Width: 17.3"
  • Depth: 8.1"
  • Weight (Approximate): 5.95 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 24
  • Number of SC Ports: 2
  • Total Number of Network Ports: 24

Other

  • Certifications & Standards:
    • FCC Class A
    • CE Mark Class A
    • VCCI Class A
    • BSMI Class A
    • C-Tick Class A<br><br> Safety:
    • UL (UL 1950)
    • CSA (CSA950)
    • TUV/GS (EN60950)
    • IEEE 802.3-LAN
    • IEEE 802.3U-LAN
    • IEEE 802.3x
  • Additional Information:
    • DC Fan: One Built-In 40 x 40 mm DC Fan
    • Half-duplex, full-duplex

Media & Performance

  • Ethernet Technology: Fast Ethernet
  • Media Type Supported:
    • Twisted Pair
    • Optical Fiber
  • Network Technology:
    • 10/100Base-TX
    • 100Base-FX
  • Twisted Pair Cable Standard: Category 5
  • Fiber Mode Supported: Multi-mode

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: Lifetime

I/O Expansions

  • Number of Total Expansion Slots: 1

Full specifications (PDF)
