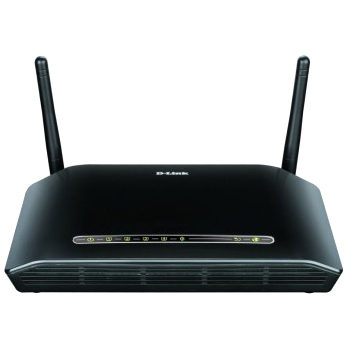

D-Link DSL-2740B

D-Link WirelessProducts - Wireless N300 DSL Modem Router

General Information

  • Product Type: Wireless Router
  • Brand Name: D-Link
  • Manufacturer: D-Link Systems, Inc
  • Product Model: DSL-2740B
  • Product Name: RangeBooster N DSL-2740B ADSL2+ Router
  • Product Line: RangeBooster N

Physical Characteristics

  • Height: 1.3"
  • Width: 8.7"
  • Depth: 5.9"
  • Weight (Approximate): 1.34 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 4
  • Management Port: Yes
  • Number of Broadband (RJ-11) Ports: 1

Management & Protocols

  • Management:
    • Installation Wizard
    • Web-based GUI for configuration, firmware upgrade
    • Code lock to prevent improper firmware upgrade
    • Telnet with SSH support
    • Syslog monitoring
    • SNMP v1, v2c support with built-in MIB-II (RFC 1213)
    • LAN to WAN traffic prioritization/Classification
    • 802.1p (0 to 7) traffic prioritization + Traffic Shaping
    • DHCP server/client/relay
    • Quality of Service (QoS)
  • Security Features:
    • NAT firewall
    • Stateful Packet Inspection (SPI)
    • DoS attacks prevention
    • Packet filtering (IP/ICMP/TCP/UDP)
    • Intrusion Detection System (IDS)
    • DMZ
    • IGMP Snooping with 32 Multicast groups
    • PVC/VLAN port mapping (bridge mode)
    • Virtual private network (VPN)

Wireless Specifications

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • ISM Maximum Frequency: 2.48 GHz
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 300 Mbps
  • ISM Minimum Frequency: 2.40 GHz
  • Antenna Gain: 2 dBi
  • Antenna Type: Dipole
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • 64/128-bit WEP data encryption
    • WPA/WPA2 (Wi-Fi Protected Access)
    • Multiple SSID
    • MAC address-based access control

Other

  • Additional Information: 802.11e Wireless QoS (WMM/WME)
Brand D-Link
Model Wireless Products


The D-Link DSL-2740B is also known as DSL-2740B or DSL2740B .
