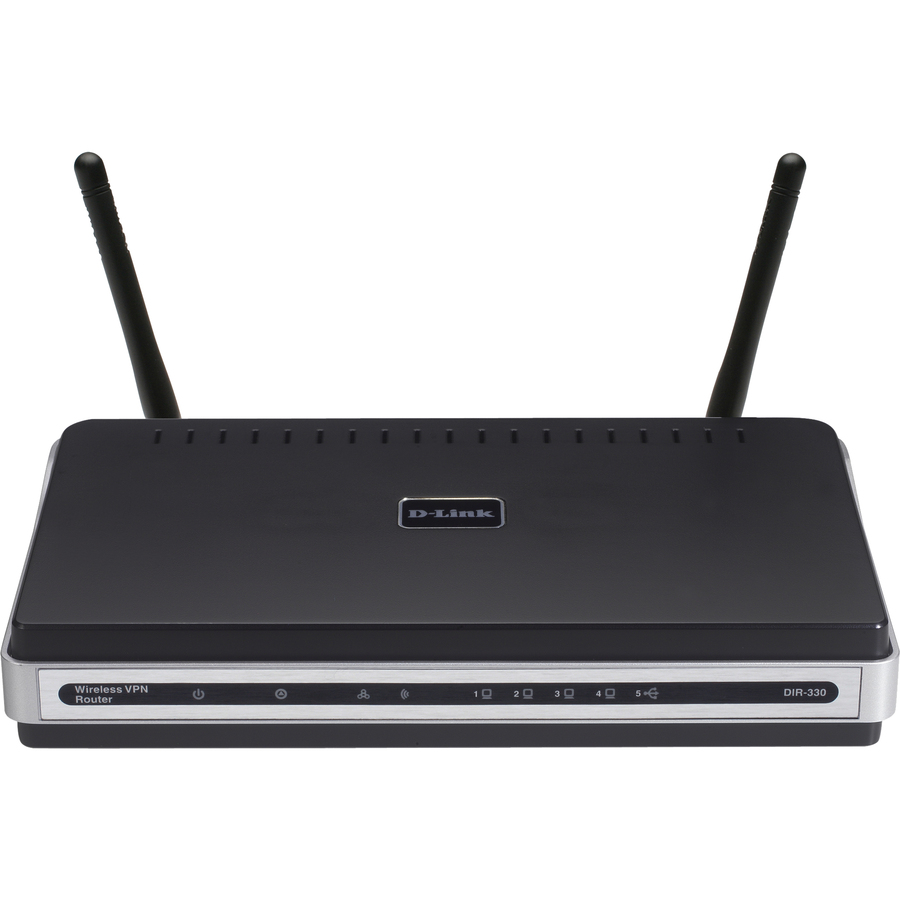

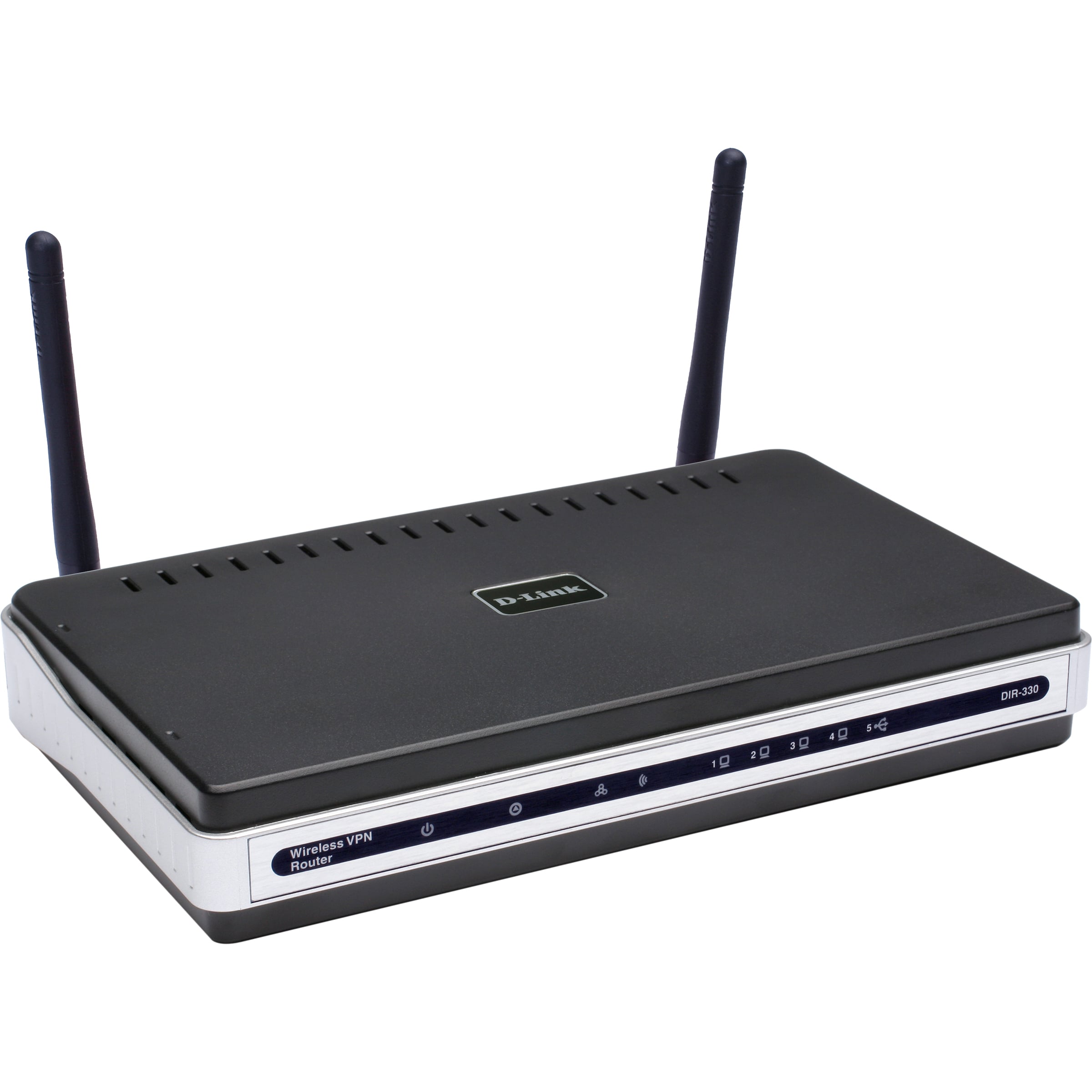

D-Link DIR-330 Data Networking
D-Link DIR-330 Data Networking Model Overview
The DIR-330 is an easy-to-deploy wireless routing, 10/100 switching, VPN, and firewall solution designed specifically for the Small Office / Home Office (SOHO) market that demands superior performance and security.
The DIR-330 can be connected to a cable or DSL modem to share high-speed Internet access. It also doubles as a 4-port full-duplex 10/100 switch to connect up to four Ethernet-enabled devices. the DIR-330 has an integrated VPN Client and Server to support almost any required VPN policy.
- Firewall Policies per VLAN Tag
- DHCP Server/Client
- DHCP Relay
- SysLog Support
- SNMP Management
- Dynamic DNS Support
- Up to 8 VPN Tunnels
- DES, 3DES, AES Encryption
- Automated Key Management via IKE/ISAKMP
- Network Address Translation (NAT)
- Server Load Balancing
- Port Address Translation (PAT)
- Time Scheduled Policies
- Policy-based NAT
- Port Forwarding
VPN Security:
- VPN Tunnels: 8 (IPSec, PPTP, L2TP)
- IPSec NAT-Traversal
- IPSec LAN-to-LAN / Roaming User
- DHCP over IPSec
- PPTP/L2TP Server/Client
- Encryption Transform: DES, AES
- IPSec/PPTP/L2TP Pass-through
- XAUTH (Extended Authentication) for IPSec Authentication
Firewall Security:
- Stateful Packet Inspection (SPI)
- Internal User Database (250 Records)
- Network Address Translation (NAT)
- RADIUS Client
- Policy-based User Authentication
- FCC Class B
- USB 1.1
- USB 2.0
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.3
- IEEE 802.3u
