D-Link DIR-130 Data Networking

D-Link DSR-150 Data Networking A newer version of this item is available.
It is replaced by the D-Link DSR-150 Data Networking.

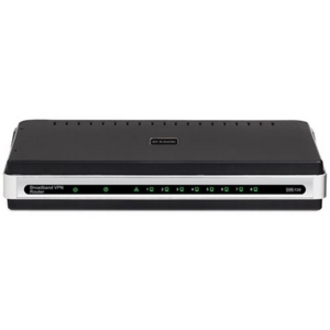

D-Link DIR-130 - D-Link DIR-130 VPN Firewall Router - 1 x 10/100Base-TX WAN, 8 x 10/100Base-TX LAN, 1 x USB
  • Offers high performance and reliable connectivity to the Internet and other offices
  • With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable
  • Link your router traffic to your wired network with the Fast Ethernet port
Read More
Discontinued See Replacement
Add to Quote
D-Link DIR-130 Data Networking Model Overview
D-Link answers the need for a Broadband VPN Router with the DIR-130. The DIR-130 is a simple-to-deploy wired VPN router designed specifically for the Small Office/Home Office (SOHO) market that demands superior performance and security in a compact desktop chassis. Designed with the small business in mind, the DIR-130 switch allows home offices to share their Internet without compromising security.
D-Link DIR-130 Data Networking Overview

D-Link answers the need for a Broadband VPN Router with the DIR-130. The DIR-130 is a simple-to-deploy routing, VPN, and firewall solution designed specifically for the Small Office / Home Office (SOHO) market that demands superior performance and security in a compact desktop chassis.

The DIR-130 can be connected to a cable or DSL line to share high-speed Internet access. It also doubles as an 8-port full-duplex 10/100 switch to connect up to eight Ethernet-enabled devices. Simply add more switches to expand your wired network. In addition, you can create a Virtual Private Network (VPN) with the DIR-130 and allow up to eight off-site or traveling users to securely access your central network through the Internet simultaneously.

Interfaces/Ports
Total Number of Ports:
9
USB:
Yes
Number of Network (RJ-45) Ports:
8
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Network Technology:
10/100Base-TX
Ethernet Technology:
Fast Ethernet
Management & Protocols
Security Features:

Firewall Mode of Operation:

  • Layer 3 Mode: Route Mode, NAT Mode
  • Network Address Translation (NAT)
  • Port Address Translation (PAT)
  • Port Forwarding

VPN Security:

  • VPN Tunnels: 8 (IPSec, PPTP, L2TP)
  • IPSec LAN-to-LAN / Roaming User
  • PPTP/L2TP Server/Client
  • IPSec/PPTP/L2TP Pass-through
  • IPSec NAT-Traversal
  • DHCP over IPSec
  • Encryption Transform: DES, 3DES, AES
  • XAUTH (Extended Authentication) for IPSec Authentication

Firewall Security:

  • Stateful Packet Inspection (SPI)
  • Network Address Translation (NAT)
  • Internal User Database (20 Records)
Physical Characteristics
Height:
1.2"
Width:
4.7"
Depth:
7.5"
Weight (Approximate):
10.72 oz
Miscellaneous
Additional Information:

Network Service:

  • Static IP address
  • PPPoE for xDSL
  • DHCP Client for WAN Interface
  • BigPond Cable, Telia Compliance
  • Internal DHCP Server
  • DHCP over IPSec
  • Static Routes
  • DNS Resolving of Remote Gateway
  • Dynamic DNS Poster
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0790069300523
UPC: 790069300523
EAN: 0790069300523
UNSPSC: 43222609
