You've just added this product to the cart:

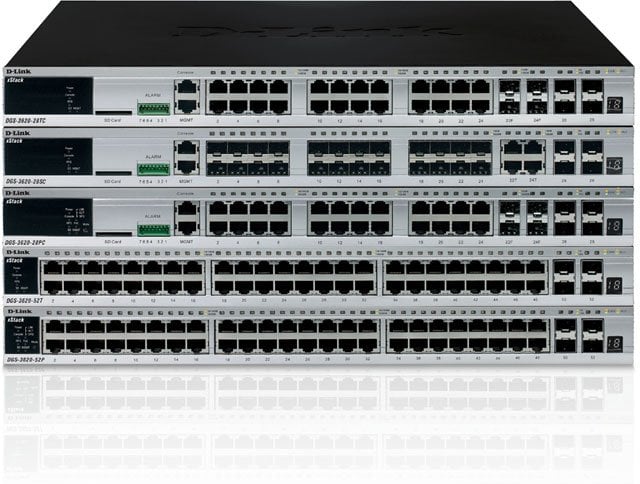

D-Link DGS-3620-28PC/SI

D-Link xStack DGS-3620 Series - XStack DGS-3620-28PC Layer 3 Switch - 24 Ports - Manageable - 3 Layer Supported - PoE Ports - Rack-mountable, Desktop - Lifetime Limited Warranty
  • Features 24 networking ports to meet the requirements of the most demanding workgroups
  • With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
  • Stack port provides an easy and hassle-free way to extend your office network
  • Gigabit Ethernet port for ultra-fast network speeds
  • Can work as layer 3 routing for scalable network design
  • Management capability provides control over setup and configuration of your network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
Read More

Full specifications (PDF)

High performance switching
The latest generation of D-Link xStack Switches supports IPv6 routing and has more advanced features than ever to address today"s security, QoS, and management concerns. The xStack DGS-3620 Series includes five gigabit managed switches with a choice of 24 or 48 port 10/100/1000Base-T models, 24 SFP port model, and PoE + model options. The xStack DGS-3620 Series is equipped with robust features that fulfi ll the most demanding network"s needs for voice and video streaming. Stackable up to 12 units under a single IP, the switches are able to provide a total of up to 576Gbps aggregated bandwidth fixed-in. To help secure your network, the D-Link Safeguard Engine helps prevent Denial-of-Service (DoS) attacks while the Access Control List (ACL) enhances network security.
D-Link DGS-3620-28PC/SI Overview

The xStack DGS-3620 Series of next generation Layer 3 Gigabit switches deliver performance, flexibility, security, multi-layer QoS, and accessibility, along with redundant power solutions for SMBs and enterprises. With high Gigabit port densities, Gigabit SFP and 10-Gigabit SFP+ support, and advanced software solutions, these switches can act as either departmental access layer devices or core switches to form a multilevel network structured with backbone and centralized high-speed servers. Service providers can take advantage of the high SFP density switches to structure the cores of Fiber to the Building (FTTB) networks that are extended to the subscribers' sites.

Protect Your Product

Full specifications (PDF)

Interfaces/Ports
Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Number of PoE+ (RJ-45) Ports:
20
Stack Port:
Yes
Number of Network (RJ-45) Ports:
4
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
  • 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology:
  • Gigabit Ethernet
  • Fast Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
9
Expansion Slot Type:
  • SFP
  • SFP+
Shared SFP Slot:
Yes
Number of SFP Slots:
4
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
  • QoS
  • CLI
  • DHCP
  • Telnet
  • SNMP v1,v2c,v3
  • Syslog
  • MIB
  • RMON 1,2,3,9
  • VLAN
  • Web-based Management
  • sFlow
Memory
Memory Card Supported:
SD
Power Description
PoE (RJ-45) Port:
Yes
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.7"
Width:
17.4"
Depth:
15"
Weight (Approximate):
12.70 lb
Miscellaneous
Package Contents:
  • xStack DGS-3620-28PC Layer 3 Switch
  • 1 x AC Power Cord
  • 1 x RJ-45 to RS-232 Console Cable
  • 1 x Mounting Kit (2 x Brackets and Screws)
  • 4 x Rubber Feet with Adhesive Backing
  • 1 x CD kit for CLI Reference Guide/Web UI Reference Guide/Hardware Installation Guide/D-View Module
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0790069348822, 0790069352911
UPC: 790069348822, 790069352911
EAN: 0790069348822, 0790069352911
UNSPSC: 43222612


The D-Link DGS-3620-28PC/SI is also known as DGS-3620-28PC/SI or DGS362028PCSI .
