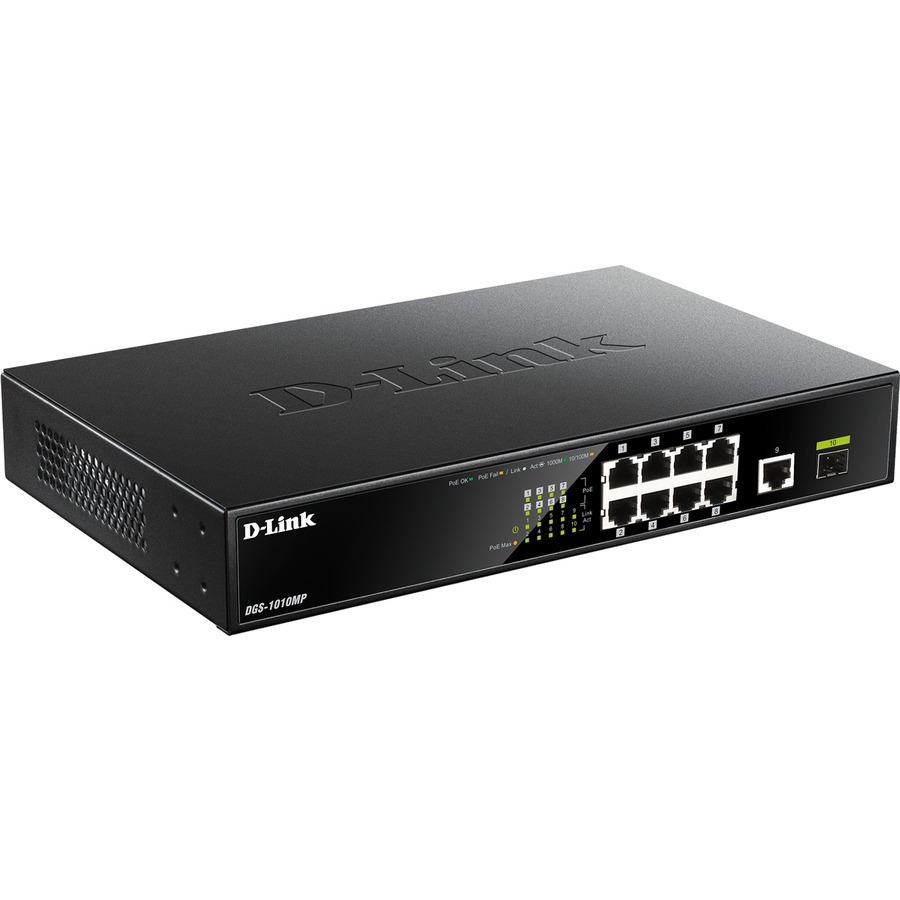

D-Link DGS-1010MP Data Networking

D-Link - D-Link 10-Port Gigabit Rackmount PoE Switch, 8 Ports, 2 Layer Supported, Modular, 1 SFP Slots, Twisted Pair, Optical Fiber, 1U High, Desktop, Rack-mountable, Lifetime Limited Warranty
  • Eight (8) 10/100/1000 Mbps Gigabit Ethernet PoE ports
  • One (1) 10/100/1000 Mbps Gigabit Ethernet uplink port
  • One (1) 1000 Mbps Gigabit SFP uplink port
  • IEEE 802.3af/at compliant PoE on ports 1 - 8
  • 125W PoE power budget
  • Fanless design provides noise free operation
  • Rackmount or Desktop
Read More
$171.51
Add to Quote
D-Link Parts Security Camera Model Overview
Products and parts from D-Link.
D-Link DGS-1010MP Data Networking Overview

The D-Link DGS-1010MP 10-Port Gigabit PoE Switch is an ideal solution for small offices and enterprise environments looking to expand the network with a set of Power over Ethernet devices such as wireless access points, IP cameras, and IP phones. Built with small business and enterprise users in mind, the DGS-1010MP is a high-speed, flexible switch that features a fanless, quiet design so it can be conveniently placed anywhere in a working environment.

Power over Ethernet

The DGS-1010MP features eight 10/100/1000BASE-T ports that support the IEEE 802.3at Power over Ethernet (PoE) standard. Each of the eight PoE ports can supply up to 30 W, with a total combined PoE budget of 125 W, allowing users to power up to four IEEE 802.3at-compliant devices without requiring an additional power supply. This allows devices to be installed in locations without any power outlets, saving on installation costs and reducing the time it takes to install new devices.

Superior Performance

The DGS-1010MP is fully plug and play, meaning installation is quick and easy and requires no additional configuration. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for optimal compatibility and performance. With store-and-forward switching, the DGS-1010MP also maximizes network performance while minimizing packet loss during data transmission. In addition, the DGS-1010MP features one Gigabit Ethernet and one SFP uplink port for high-speed connections to remote storage or for long distance fiber connections to
an uplink network. Combining the convenience of PoE, superior performance, and ease of use, the DGS-1010MP is the ideal choice for flexibly expanding your network while remaining cost efficient.

Compact and Silent Design

The DGS-1010MP has a compact 11" design, so that it can be deployed in any easily accessible location on the work floor, allowing you to power a set of PoE-powered devices while avoiding additional cable clutter. Alternatively, the standardized 1U-sized housing means the switch can also be mounted in a standard 19" rack and be integrated in a server infrastructure. The DGS-1010MP is furthermore built around a fanless design. This makes the switch suitable to be used closer to, or in populated areas where it works efficiently while guaranteeing a quiet working environment.

Green Technology

The DGS-1010MP supports IEEE 802.3az Energy-Efficient Ethernet (EEE), reducing power consumption of the switch when network utilization is low and minimizing operating costs during periods of inactivity. By using EEE-compliant devices with the DGS-1010MP, organizations can noticeably reduce power consumption by having the switch automatically put ports into sleep mode when they are not being used.

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DGS-1010MP to further its commitment to product quality and long-term customer confidence.

Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
  • 8 x Gigabit Ethernet Network
  • 1 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
SFP
Number of SFP Slots:
1
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Desktop
  • Rack-mountable
Height:
1.7"
Width:
11"
Depth:
7.1"
Miscellaneous
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • EU WEEE
  • EU RoHS
  • RoHS
Country of Origin:
China
TAA Compliant:
No
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0790069439889, 0999557408608
UPC: 790069439889, 999557408608
EAN: 0790069439889, 0999557408608
UNSPSC: 43222612
