Number of IR LEDs:
12

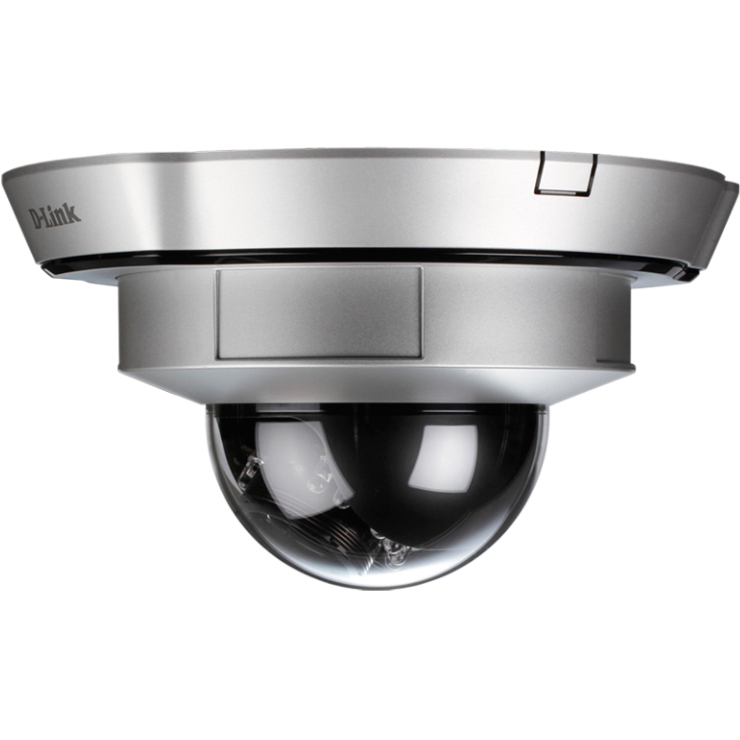

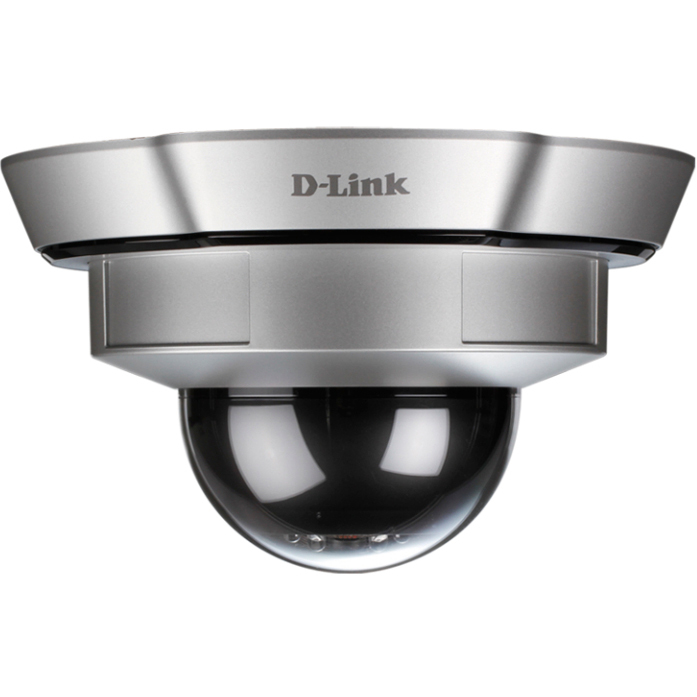

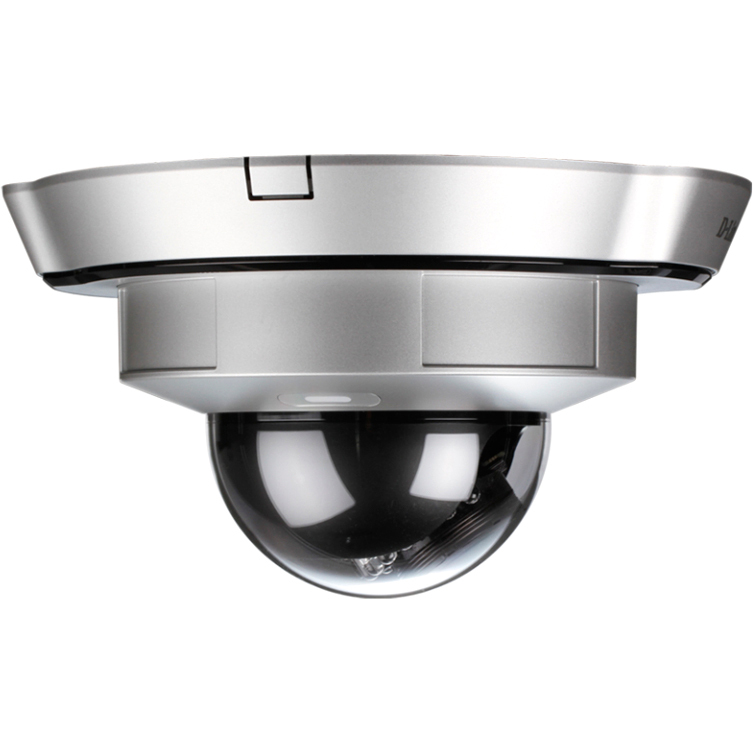

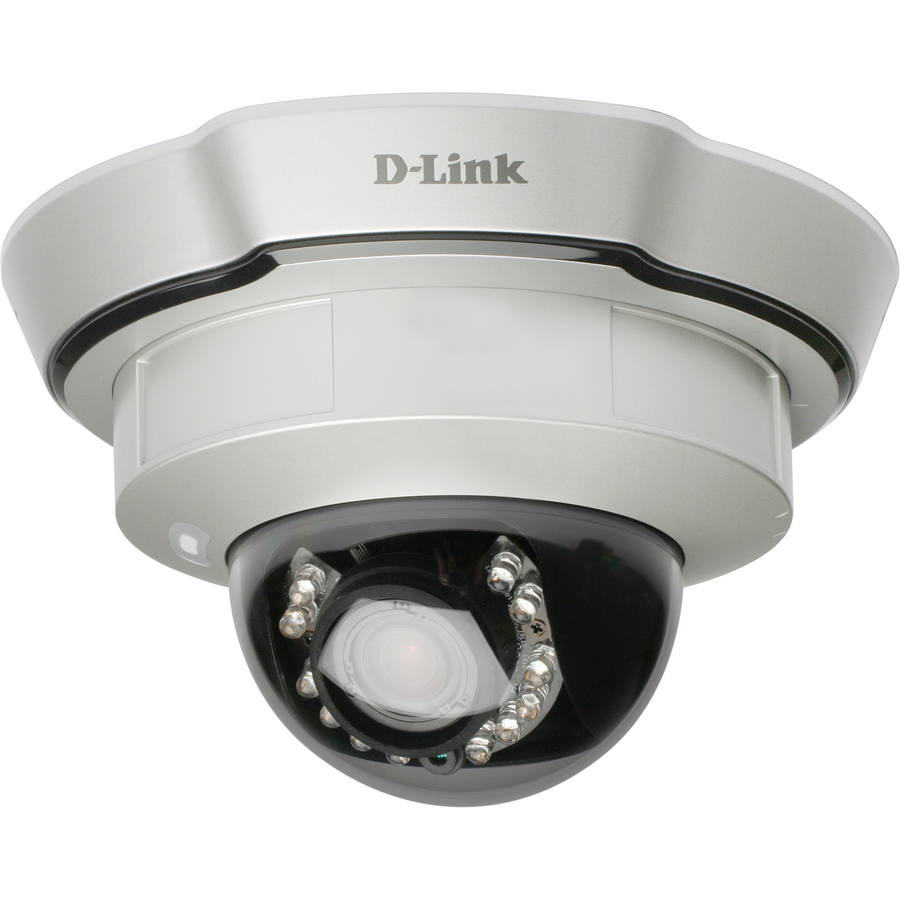

D-Link DCS-6111 Telecommunication Equipment
Part Number:
DCS-6111
Model:
Wireless Products
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
13.5? to 82.7?
Viewing Angle:
13.5° to 82.7°
Video
Maximum Video Resolution:
640 x 480
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.30 mm
Maximum Focal Length:
12 mm
Lens Included:
Yes
Optical Zoom:
3.6x
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP/IP
- RTP
- RTSP
- RTCP
- HTTP
- SMTP
- FTP
- NTP
- DNS
- DHCP
- UPnP
- DDNS
- PPPoE
- IGMP
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Height:
4.2"
Width:
7.6"
Depth:
7.1"
Weight (Approximate):
1.43 lb
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Miscellaneous
Features:
- Day/Night
- Built-in IR LED
- Built-in Infrared Illuminator
- Light Sensor
Indoor/Outdoor:
Indoor
Additional Information:
- 20M illumination distance with 12 LEDs and light sensor
- Supports 3GPP mobile surveillance
- D-ViewCam software is used to manage up to 32 cameras simultaneously from your computer
System Requirements:
- Operating System: Microsoft Windows 2000, XP, Vista
- Browser: Internet Explorer, Firefox, Netscape, Mozilla, Opera
Security Features:
- Administrator and user group protected
- Password authentication
- HTTP and RTSP digest encryption
- HTTPS streaming
- Remote client access allow/deny list
Platform Supported:
PC
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0790069318412, 0790069331893
UPC:
790069318412, 790069331893
EAN:
0790069318412, 0790069331893
UNSPSC:
46171610
