Image Sensor Type:
CCD
White Balance Modes:
Auto
Maximum Illumination:
1 lux
Color Supported:
Color
Swivel:
135° to 135°
D-Link Security Cameras Security Camera Model Overview
Security cameras from D-Link.

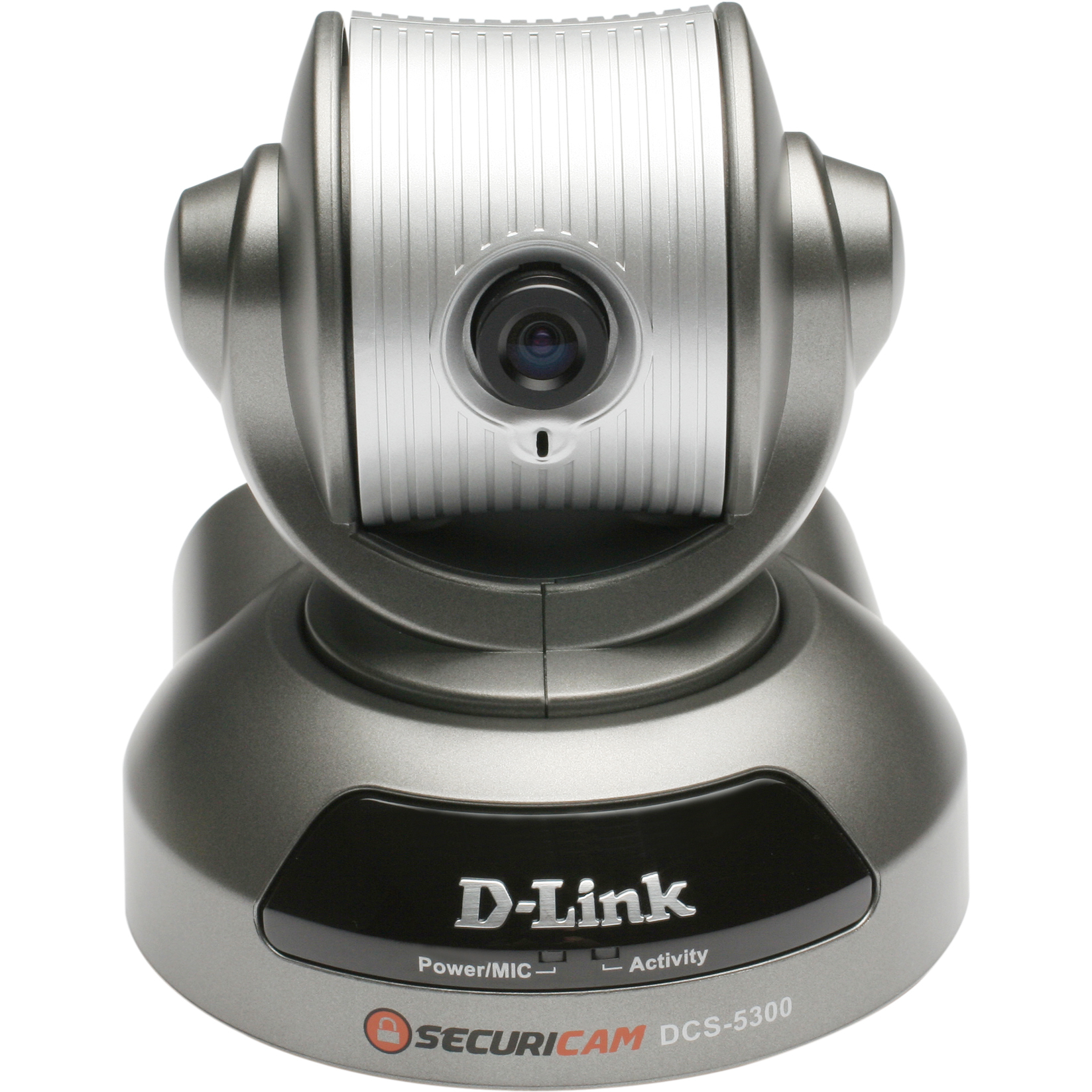

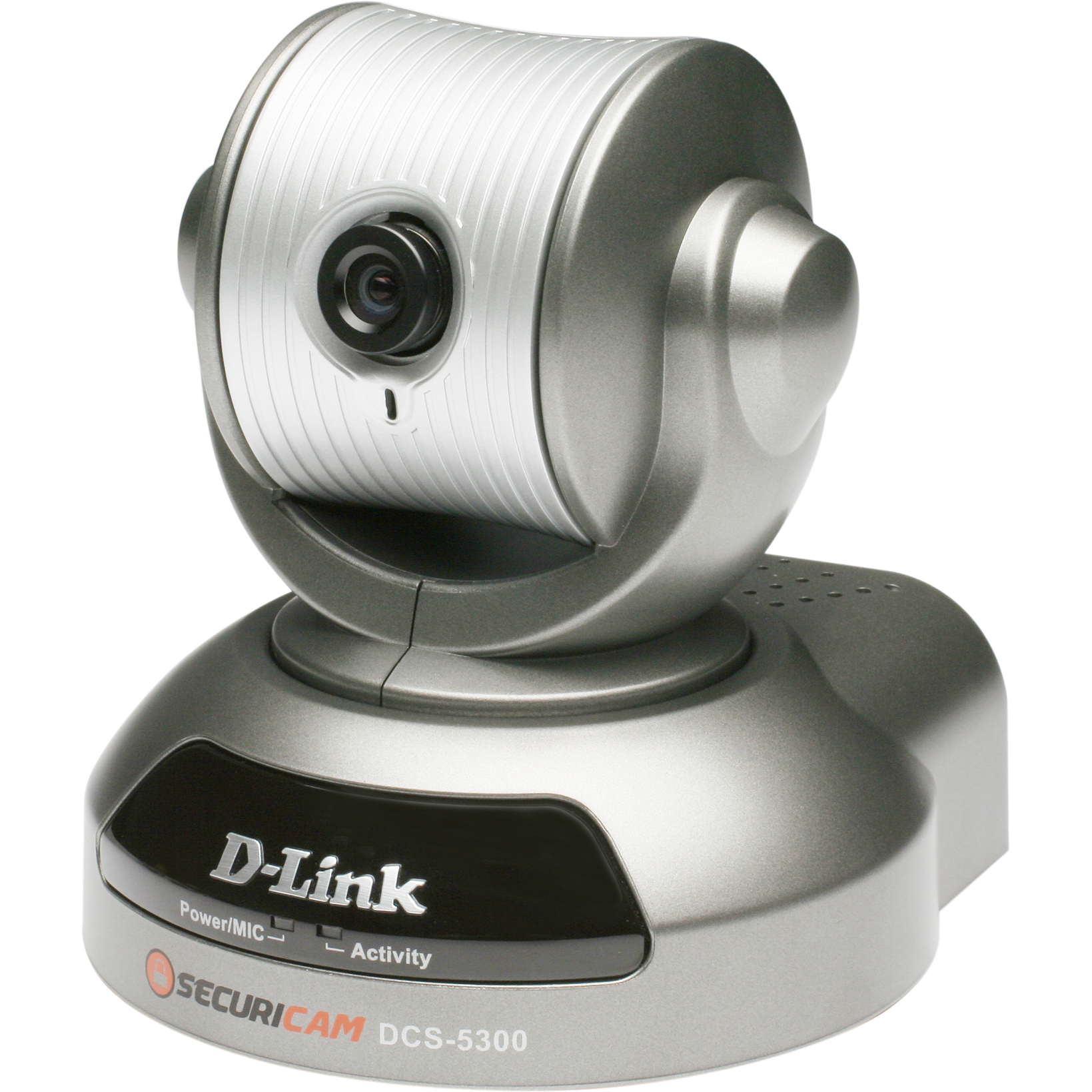

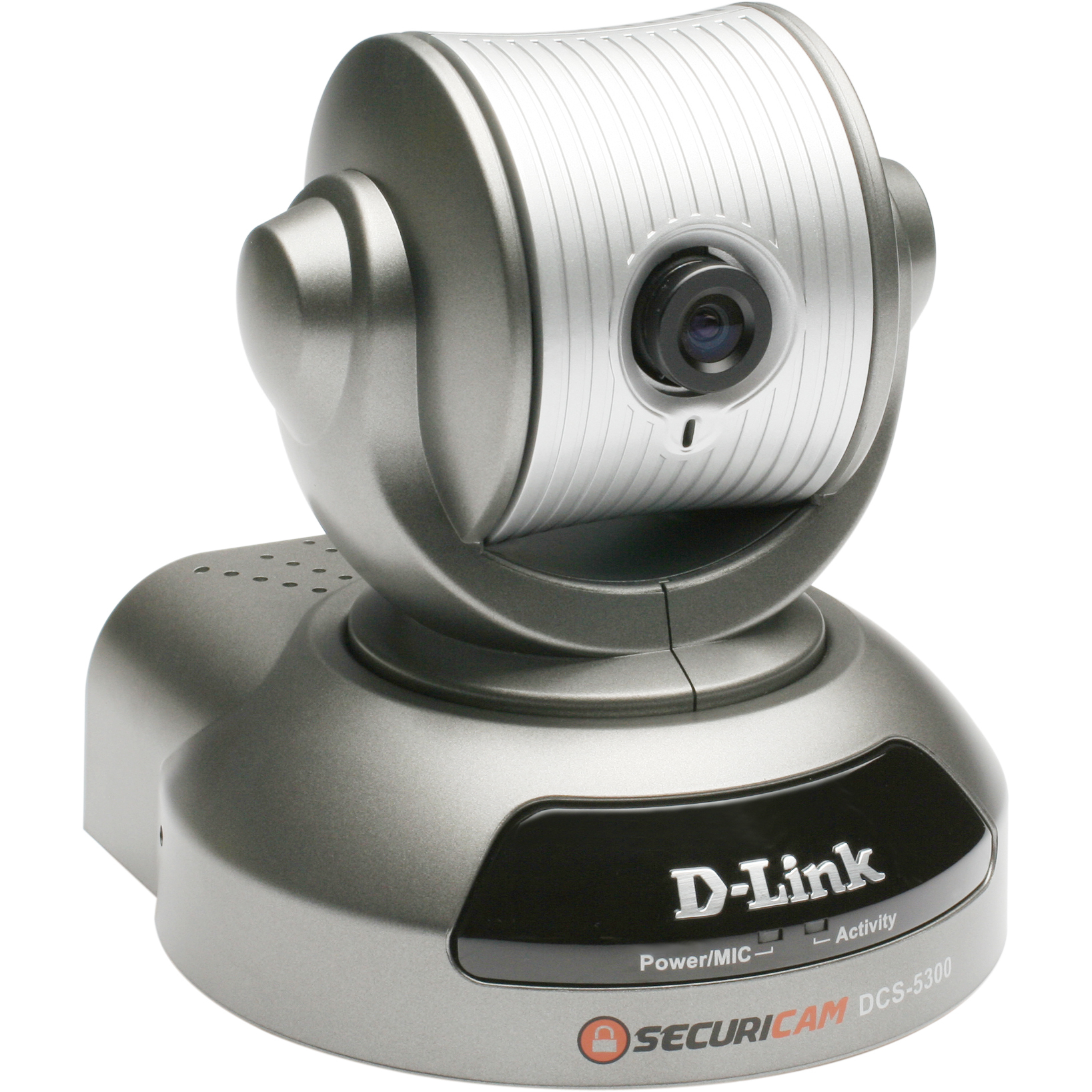

D-Link DCS-5300 Security Camera Overview
D-Link is pleased to introduce the newest product in Internet camera technology. Remotely watch and listen with the D-Link SecuriCam DCS-5300 Internet Camera. The DCS-5300 Internet Camera is a full featured surveillance system that connects to an Ethernet or Fast Ethernet connection to provide high quality video and audio over the Intranet or the Internet.
Display & Graphics
Video
Video Formats:
MPEG-4
Maximum Video Resolution:
320 x 240
Image Formats:
Compressed JPEG
Lens
Maximum Aperture:
f/2
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP/IP
- HTTP
- SMTP
- FTP
- Telnet
- NTP
- DNS
- DHCP
Controls/Indicators
Status Indicators:
- 2 Status indicators
- (1) Power
- (2) POST, connection, and heartbeat
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
4.4"
Width:
4.1"
Depth:
4"
Weight (Approximate):
12.20 oz
Miscellaneous
Additional Information:
- CCD Sensor for Superior Quality Image
- Built-In Microphone for Audio Monitoring
- Built-In Motion Detection & Email Notification
- 1 Opto-isolated sensor input
- 1 relay output
- External microphone input
System Requirements:
Operating System:
- Microsoft Windows XP, 2000, Me or 98SE Browser:
- Internet Explorer 5.x or above
- Viewing System Requirement Protocol:
- ActiveX
Security Features:
- Administrator and user group protected
- Password authentication
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0007900692632, 0790069263279
UPC:
007900692632, 790069263279
EAN:
0007900692632, 0790069263279
UNSPSC:
46171610
