D-Link DAP-3520 Telecommunication Equipment

Part Number: DAP-3520
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

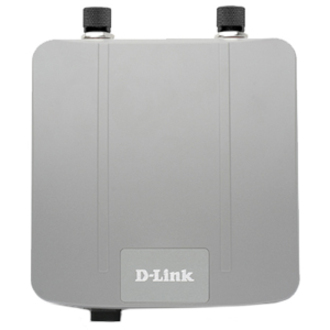

  D-Link AirPremier N DAP-3520 Dual Band Exterior Wireless Access Point - IEEE 802.11n (draft) 300Mbps - 1 x 10/100Base-TX PoE
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • 64/128-bit WEP
  • WPA-Personal
  • WPA-Enterprise
  • WPA2-Personal
  • WPA2-Enterprise
  • SSH
  • RADIUS
  • IEEE 802.11i
  • MAC Address Filtering
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
  • Telnet
  • CLI
  • SNMP v1/2c/3
  • HTTP/HTTPS
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Height:
6.4"
Depth:
2.3"
Weight (Approximate):
1.58 lb
Miscellaneous
Additional Information:

UNII Band Frequencies:

  • 5.15GHz to 5.25GHz
  • 5.725GHz to 5.85GHz
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0790069320477, 0790069323553
UPC: 790069320477, 790069323553
EAN: 0790069320477, 0790069323553
UNSPSC: 43222631
