D-Link ANT24-0700 Data Networking

Part Number: ANT24-0700
Model: ANT24-0700
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Directivity
Omni-directional
Frequency Band Type
UHF
Operating Frequency Range
2.4 GHz to 2.5 GHz
Antenna Gain
7 dBi

Product Description:

  D-Link ANT24-0700 2.4GHz Omni-Directional 7dBi Indoor Antenna - 7 dBiOmni-directionalOmni-directional
Explore all D-Link ANT24-0700 Data Networkings
Add to Quote
D-Link ANT24-0700 Data Networking
D-Link ANT24-0700 Data Networking
D-Link ANT24-0700 Data Networking D-Link ANT24-0700 Data Networking
Full specifications (PDF)

D-Link ANT24-0700 Data Networking Model Overview

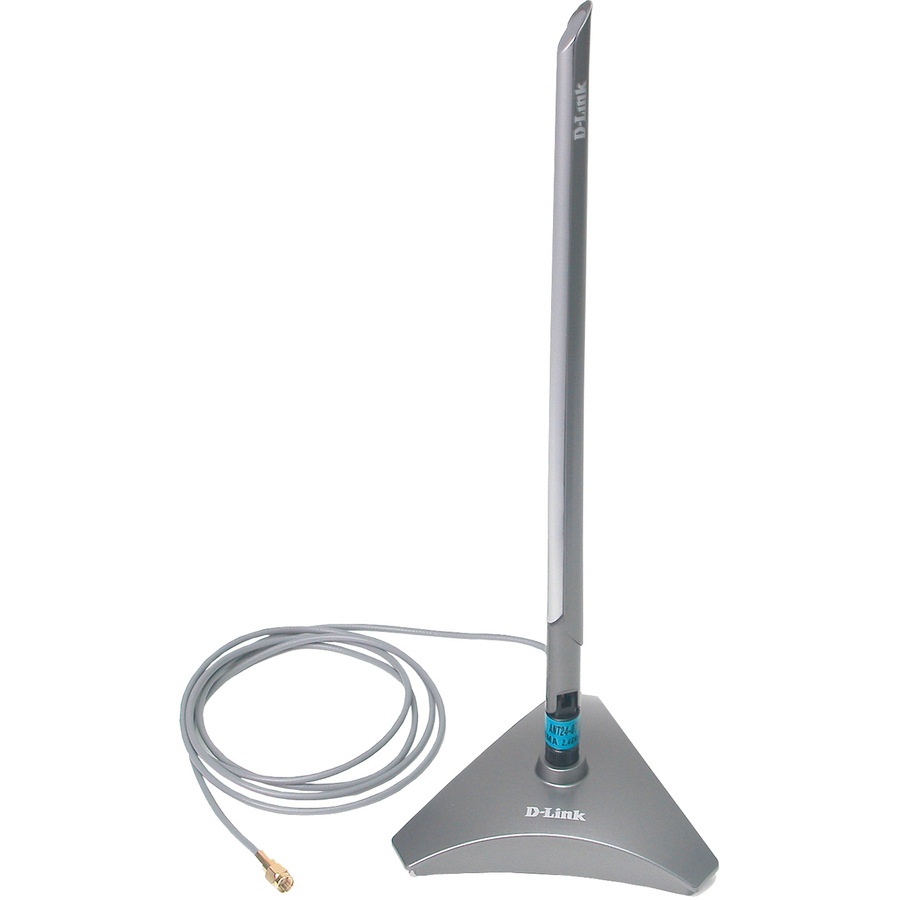

D-Link introduces the ANT24-0700 Omni-Directional 7dBi Indoor Antenna designed to provide extended coverage for an existing 802.11b/g wireless network. The omni-directional design of the ANT24-0700 offers dramatically increased wireless signal coverage in all directions. With 360° of better signal reception, this high-gain antenna will also improve data throughput at farther distances. The D-Link ANT24-0700 connects to a variety of wireless routers and access points on the market today. Whether the wireless router or access point has an SMA or TNC connector, the ANT24-0700 comes with an RP-SMA to RP-TNC conversion adapter to accommodate either connector type.
D-Link ANT24-0700 Data Networking Overview

D-Link, an industry leader in networking, introduces the ANT24-0700 Omni-Directional 7dBi Indoor Antenna designed to provide extended coverage for an existing 802.11b/g wireless network. The omni-directional design of the ANT24-0700 offers dramatically increased wireless signal coverage in all directions. With 360° of better signal reception, this high-gain antenna will also improve data throughput at further distances.

Full specifications (PDF)
Technical Information
Directivity:
Omni-directional
Frequency Band Type:
UHF
Operating Frequency Range:
2.4 GHz to 2.5 GHz
Antenna Gain:
7 dBi
Impedance:
50 Ohm
Polarization:
Linear Vertical
Cable Length:
4.92 ft
Interfaces/Ports
Connector Type:
RP-SMA
Miscellaneous
Application/Usage:
Wireless Data Network
Package Contents:
  • Magnetic Base* with Extension Cable and Mounting Kit for Flexible Placement
Additional Information:
  • RP-SMA to TNC Adapter
  • Cable: 1.5m RG-178 50 Ohms
  • * Warning: The base unit is magnetic. Keep magnetic base at least 6 inches away from electronic devices; computers, TV's, video equipment, and tapes. Exposure to magnetic base may cause device or data on disks to become corrupted.
Certifications & Standards:

IEEE:

  • IEEE 802.11b
  • IEEE 802.11g
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0790069273643, 0790069273667, 0790069306433
UPC: 790069273643, 790069273667, 790069306433
EAN: 0790069273643, 0790069273667, 0790069306433
UNSPSC: 43221706
