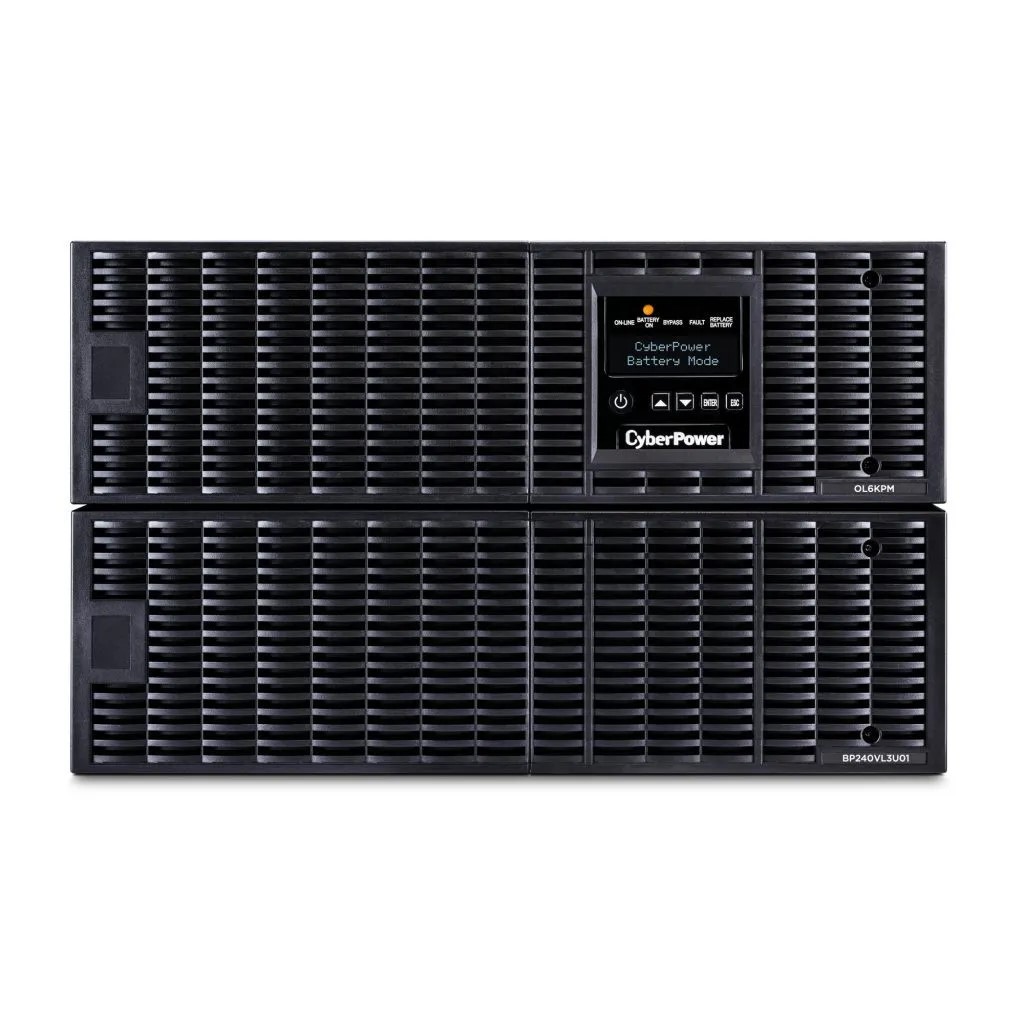

CyberPower OL6KRT Power Device

Part Number: OL6KRT
Model: Parts
Add to My Shopping List Add to Compare
$6,580.61
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA L6-20R
Receptacle Detail
2 x NEMA L6-20R
Transfer Time
0 ns

Product Description:

  Power Device, CyberPower, 6KVA/5.4KW, online double-conversion UPS, Sine wave output, 6U rack/tower convertible, 200-240V input and output, 10ft NEMA L6-30P input power cord, (2) NEMA L6-20R and (2) NEMA L6-30R outlets, LCD control panel, RMCARD205 pre-installed, EPO, RS-232/USB, 3 year warranty
Explore all CyberPower Parts Accessories
Add to Quote
CyberPower OL6KRT Power Device
CyberPower OL6KRT Power Device
CyberPower OL6KRT Power Device CyberPower OL6KRT Power Device
Full specifications (PDF)
Technical Information
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
NEMA L6-20R
Receptacle Detail:
2 x NEMA L6-20R
Transfer Time:
0 ns
Dataline Protection:
  • RJ-11
  • RJ-45
Protection Type:
  • Backfeed
  • Short Circuit
Overload Protection:
Yes
EMI/RFI Noise Filter:
Yes
Energy Saving:
ECO Mode Efficiency >96%
Application/Usage:
  • IT Infrastructure
  • Network
  • Server Room
  • Generator
Cord Length:
10 ft
Crest Factor:
3:1
Circuit Breaker Current Rating:
30 A
Power Description
Load Capacity (VA):
6000 VA
Load Capacity (Watt):
5400 W
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
  • 120 V AC - 139 V AC
  • 200 V AC - 240 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC
Input Frequency:
  • 50 Hz
  • 60 Hz
Output Frequency:
  • 50 Hz
  • 60 Hz
Waveform Type:
Sine Wave
Surge Energy Rating:
2430 J
Input Power Factor:
0.99
Output Power Factor:
0.9
Display & Graphics
Display:
LCD
Management
Network Management:
Dry Contact
Alarm:
Battery Mode
Controls/Indicators
Status Indicators:
Power On (White)
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Yes
USB (HID Compliant) Port:
Yes
EPO Port:
Yes
Battery Information
Number of Batteries:
20
Battery Characteristics:
Sealed
Battery Chemistry:
Lead Acid
Battery Size:
12V
Battery Capacity:
7000 mAh
Backup/Run Time (Full Load):
5.40 Minute
Backup/Run Time (Half Load):
15 Minute
Typical Battery Recharge Time:
4 Hour
Replaceable Battery:
Yes
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Storage Temperature:
-4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation:
10000 ft
Maximum Storage Elevation:
50000 ft
Operating Humidity:
0% - 90%
Storage Relative Humidity:
0% - 95%
Sound Emission (A-Weighted):
65 dB(A)
Thermal Dissipation:
560.35 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Rack/Tower
Rack Height:
6U
Height:
10.5"
Width:
17"
Depth:
26"
Weight (Approximate):
222.20 lb
Miscellaneous
Package Contents:
  • Smart App Online OL6KRT 6000VA Tower/Rack Mountable UPS
  • Rack Mounting Hardware
  • USB Cable
  • Serial Cable
  • Phone Cable
Additional Information:
  • Bypass: Internal Bypass (Automatic and Manual)
  • Dry Contacts: Yes
  • ECO Mode Voltage Regulation: ±10%, ±15% (configurable)
  • ECO Mode Thermal Dissipation: 728 BTU/hr
  • Harmonic Distortion: < 3% at Linear Load
  • Management Cable: USB Cable
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • Nominal Output Voltage: 19292 V AC
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Serial Port: 1 Serial
  • Short Circuit Protection: UPS Output Cut off Immediately
  • Software (Free Download): PowerPanel&reg; Business
  • Upgradeable firmware: Yes
  • USB Charge Port: No
  • Voltage Range: 120 V to 139 V, 0% to 25% load
  • VA by Input Type: 6,000 (6 kVA) at 220, 230, 240 V input
  • Watts by Input Type: 5,400 (5.4 kW) at 220, 240 V input
    • Certifications & Standards:
    UL1778 5th Ed.
    Energy Star:
    No
    Country of Origin:
    China
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    3 Year
    Directly Connected Equipment Guarantee:
    $300000 Lifetime
    Item Numbers
    GTIN: 0649532620210
    UPC: 649532620210
    EAN: 0649532620210
    UNSPSC: 39121011
    The CyberPower OL6KRT Power Device is also known as CPS-OL6KRT or OL6KRT.
