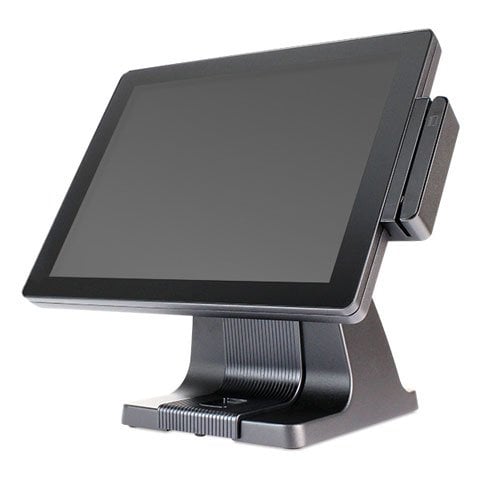

Custom America EVO TP4 TouchPC POS Touch Terminal Model Overview
Experience the future of point-of-sale technology with the EVO TP4A TouchPC from POS-X. This state-of-the-art touch computer merges enterprise-class build quality with the latest fanless processing and advanced touchscreen technology, all housed in a robust aluminum alloy frame that dissipates heat efficiently. With an IP54 rating, it is designed to withstand dust and splashes, making it an ideal choice for demanding business environments. The TP4A combines reliability and performance, ensuring your operations run smoothly while keeping your workspace neat with built-in cable management.
Key Features:
15" 5-Wire Resistive Touchscreen for versatile interaction.
IP54 Rating for protection against dust and splashing water.
Built-in cable management to keep cords hidden and organized.
EZHD Slot for quick and easy HDD or SSD replacement.
Die-cut aluminum alloy frame ensures durability and bump-free operation.
3 Year Advanced Replacement Protection included for peace of mind.
Specifications:
Part Number: EVO-TP4A-A / EVO-TP4A-B
Motherboard: B68 / C48
CPU: Intel® Atom N270 1.6Ghz / Intel® Atom D525 1.8Ghz Dual-Core
System Memory: 1~2 GB DDRII / 1~4 GB DDRIII
Video: Integrated Intel® GMA® 3150
Ports:
1 x Parallel Port
4 x USB2
4 x RJ 45 COM
1 x 10/100/1000 BaseT LAN
1 x Additional VGA Port
1 x RJ11 (cash drawer)
2 x 2W Speakers
Hard Drive: 2.5" Easy Access Slot: 160GB+ HDD, 30GB-80GB+ SSD
Weight: 15.4 lbs
Dimensions: 14.21" (W) x 9.76" (D) x 13.27" (H)
VESA Wall Mountable: Yes
Temperature: 41°F to 95°F operating
Humidity: 20%-80% non-condensing
Warranty: 3 Year Limited
Certifications: FCC, Class A, CE, LVD, RoHS
Operating System: None/XP Pro / POSReady / Windows 7
Custom America EVO-TP4D-G4HG POS Touch Terminal Overview
POS-X EVO TP4D : EVO TP4 POS Terminal (Intel Celeron 2.7GHz quad core, 4GB DDR3, 500GB HDD, Win 10 Pro x64) Elevate your business with the highly configurable, enterprise-class EVO TP4. Being as unique as your business, this all-in-one can be outfitted with numerous peripherals or even mounted to a wall.
3 YEAR ADVANCE REPLACE WARRANTY: Call POS-X 24/7 US based support and if we can't fix it over the phone, we will ship you a replacement unit to arrive within two days. Upgrades to overnight and/or 5 years are available (Part #s: ZOE-TPC3, ZOE-TPC5, ZWE-TPC).
VERSATILE PERFORMANCE: Powered by Intel's most robust processors (From Quad Core Celeron to 4th Gen Core i7) the EVO TP4 POS Terminal offers the power to meet the demands of any application.
SPLASH RESISTANT HOUSING: The EVO TP4 has earned an IP54 Ingress Protection Rating. Resistant to internal dust build up as well as splashing water, the TP4 has been built to withstand harsh environments.
ALUMINUM ALLOY CONSTRUCTION: The EVO TP4 POS Terminal features enterprise-class build quality and is built to last. The ultra-rigid die-cast aluminum alloy frame extends from the body through the stand, providing smooth bump-free touch operation.
MAXIMUM CONFIGURABILITY: Outfit your EVO TP4 POS Terminal with a plethora of accessories including three types of rear displays, MSR, bio reader and/or custom wall mount bracket.
Full specifications (PDF)
