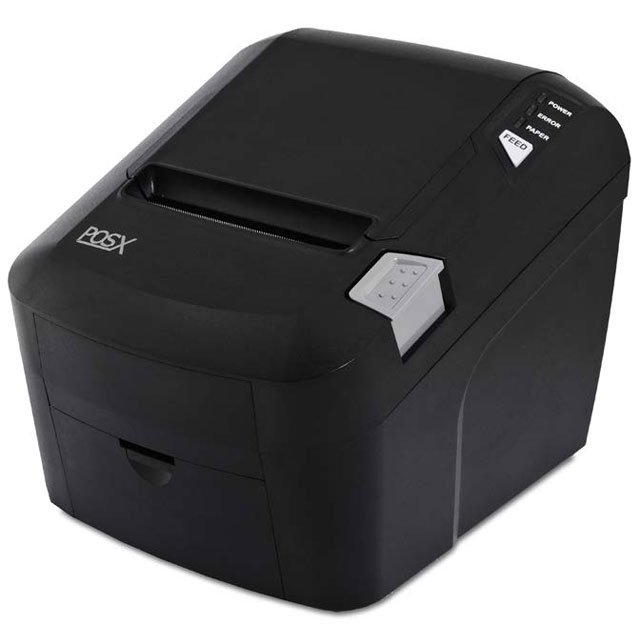

Custom America EVO-PT3-1HU Receipt Printer

Part Number: EVO-PT3-1HU
Model: EVO HiSpeed
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
USB

Product Description:

  Receipt Printer - EVO HiSpeed - 180 dpi - Direct Thermal - Color: Black - 3.15" Max Print Width - 11.81" per Second Print Speed - USB Interface
Explore all Custom America EVO HiSpeed Receipt Printers
Add to Quote
Custom America EVO-PT3-1HU Receipt Printer
Custom America EVO-PT3-1HU Receipt Printer
Custom America EVO-PT3-1HU Receipt Printer
Custom America EVO-PT3-1HU Receipt Printer Custom America EVO-PT3-1HU Receipt Printer Custom America EVO-PT3-1HU Receipt Printer
Full specifications (PDF)

Custom America EVO HiSpeed Receipt Printer Model Overview

The EVO HiSpeed Thermal Receipt Printer is the ultimate solution for high-volume retail and hospitality environments, delivering unmatched speed and reliability. With a rapid printing speed of 300 mm/sec, this printer is built to endure the toughest conditions, ensuring you stay productive throughout the day. It boasts innovative JamFree Autocutter Technology and an industry-leading 5-Year Warranty, making it a dependable partner for your business operations.
Key Features
  • Extreme performance 300 mm/sec print speed
  • Power supply and interface cable(s) included
  • Drop-in easy thermal paper loading
  • JamFree AutoCutter technology
  • ESC/POS and OPOS compatible
  • Wall-mountable
  • 5-Year Warranty includes 2-Day Advance Exchange service

Specifications
  • PART NUMBER: EVO-PT3-1HU, EVO-PT3-1HUP, EVO-PT3-1HUS, EVO-PT3-1HUE
  • Interfaces: USB, USB/Parallel, USB/Serial, USB/Ethernet
  • Print Method: Direct Thermal
  • Printing Speed: 11.81"/sec (300mm/sec)
  • Dot Density: 180 DPI x 180 DPI
  • MCBF: 60,000,000 Lines
  • Dimension: 6.1"(w) x 8"(D) x 6.1"(H)
  • Weight: 3.7 lbs
  • Temperature: 41°F to 104°F operating, -4°F to 140°F storage
  • Warranty: 5-Year with 2-Year on Autocutter and Print Head
Custom America EVO-PT3-1HU Receipt Printer Overview
"POS-X EVO PT3 : EVO PT3 HiSpeed (USB Only) The EVO HiSpeed Thermal Receipt Printer sets the bar in both speed and reliability. Engineered to operate day-in and day-out in the harshest of environments, the EVO HiSpeed provides the steadfast performance you need. Perfect for high-volume retail and hospitality operations, the EVO HiSpeed features lightning quick receipt printing, JamFree Autocutter Technology, and is backed by the best warranty in the industry.
  • 5 YEAR ADVANCE REPLACE WARRANTY: Call POS-X 24/7 US based support and if we can't fix it over the phone, we will ship a replacement unit to arrive within two days. Upgrades to overnight available (Part #: ZOE-CRW5, ZOE-CRW3).
  • TOP RATED PERFORMANCE: Our flagship printer, the EVO HiSpeed not only comes standard with industry leading specifications, it also beats the competition in price and value.
  • INCREDIBLY FAST PRINTING: Output receipts at at incredible 12 inches per second (300mm), saving valuable time at checkout.
  • COMPATIBILITY: With the ability to connect via USB, Serial, Ethernet or Parallel, the EVO HiSpeed is fully ESC/POS and OPOS compatible.
  • WALL MOUNTABLE: Convenient mounting capabilities allow for optimal printer placement.
  • EASY PAPER LOADING: Easy drop-in thermal paper loading
Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
11.81 in/s
Maximum Print Resolution (dpi):
180 x 180
Maximum Print Width:
2.84"
Barcode Symbology Supported:
  • EAN-8
  • EAN-13
  • Code 39
  • ITF
  • UPC-A
  • Codabar
  • Code 93
  • Code 128
  • PDF-417
Interfaces/Ports
USB:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Receipt
  • Thermal Paper
Media Sensor:
  • Out Of Paper Sensor
  • Paper Low Sensor
Media Thickness:
3.54 mil
Maximum Roll Diameter:
3.27"
Maximum Label Width:
3.25"
Label Core Size:
0.49"
Fonts & Emulation
Language Emulation:
  • ESC/POS
  • OPOS
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Form Factor:
Wall Mount
Product Color:
Black
Height:
5.8"
Width:
6"
Depth:
7.6"
Weight (Approximate):
3.53 lb
Miscellaneous
Package Contents:
  • EVO PT3 : EVO HiSpeed Thermal Receipt,USB
  • Quick Start Guide
  • AC Power Adapter
  • Interface Cable(s)
  • Sample Paper Roll
Power Adapter Included:
Yes
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • UL/cUL
  • CE-LVD
  • CE-EMCD
  • MIC
  • CE
  • CCC
  • NOM
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0016853822898, 0053926307814, 0818283715685, 0826635700371
UPC: 016853822898, 053926307814, 818283715685, 826635700371
EAN: 0016853822898, 0053926307814, 0818283715685, 0826635700371
UNSPSC: 45101512
Questions? Get help from
a POS Expert!

What is your POS application?

The Custom America EVO-PT3-1HU Receipt Printer is also known as PXI-EVO-PT3-1HU
