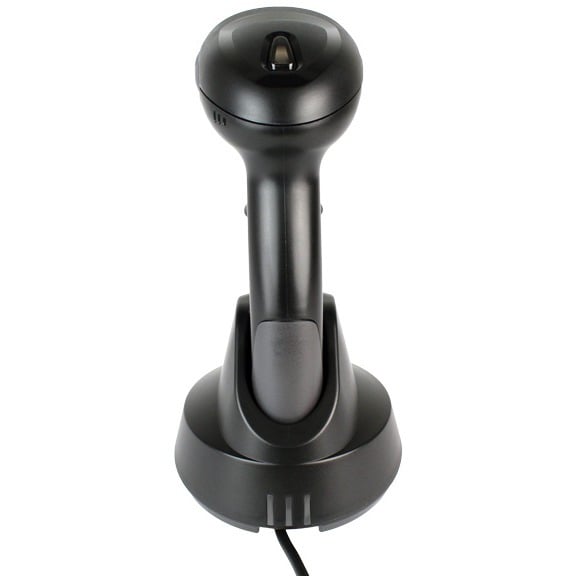

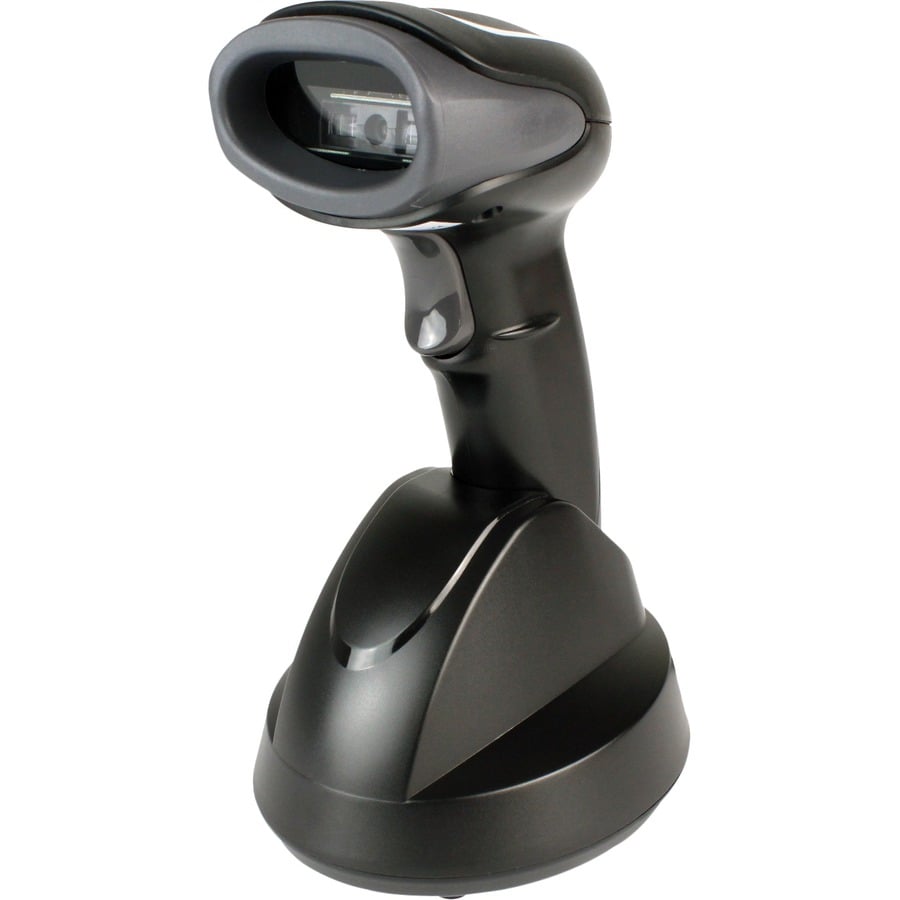

Custom America ION 2D Bluetooth Barcode Scanner Model Overview
Experience seamless data collection with the ION 2D Bluetooth Barcode Scanner, designed for efficiency and ease of use. Utilizing advanced Bluetooth technology and a powerful 2D scanning engine, it quickly reads all standard 1D and 2D barcodes, including those displayed on mobile screens. The scanner operates from a wireless range of up to 295 feet and delivers fast performance with a scan rate of 60 frames per second, making it ideal for retail environments and inventory management. With its plug-and-play setup, you can begin using the scanner immediately, ensuring minimal downtime and maximum productivity.
Key Features
Decode Capabilities: Reads all standard 2D and 1D barcodes
Scan Rate: 60 frames per second
Reading Distance: From 2.9" to 8" (74mm to 203mm)
Wireless Technology: Bluetooth Version 4.0
Operating Time: Approximately 50,000 scans per charge
Specifications
Performance:
Optical Sensor: 640x480 Pixels
Light Source: 630 nm ±20 nm CCD
Visual Indicators: Blue LED (Connected), Orange LED (Charging), Red LED (Power ON)
Electrical:
Power Input: 3.3V
Current: <110mA
Battery:
Type: Rechargeable Li-Ion 3.7V
Capacity: 2600mAh
Recharge Time: 5 Hours
Environmental:
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-40°C to 70°C)
Humidity: 10% to 95% relative humidity, non-condensing
Shock Resistance: Withstands multiple drops from 4.9' (1.5m)
Physical:
Dimensions: 3.3" x 2.6" x 6.4" (84mm x 66mm x 162mm)
Weight: 0.4 lb (190g) without Cradle
Color: Black
Housing: ABS
Custom America 995ED048500333 Barcode Scanner Overview
2D BARCODE SCANNING
The 2D scan engine supports all common 2D barcode types including QR, PDF417 and Data Matrix
OUTSTANDING WIRELESS RANGE
Never feel tied down by wires with up to 300 feet of usable Bluetooth range
INCREDIBLE BATTERY LIFE
Scan 50,000 barcodes in a single charge, and quickly recharge with the simple drop and charge cradle design
UNIVERSAL PLUG AND PLAY
By utilizing universal HID technology, the ION 2D Bluetooth can easily connect to any Bluetooth enabled device including iOS and Android
Full specifications (PDF)
