Custom America EVO-MR6 Smart Card Reader Model Overview
The EVO-MR6 3-track Magnetic Stripe Reader (MSR) is your ultimate solution for efficiently reading magnetically encoded cards. Designed with an integrated gold contact USB interface, it offers a true plug-and-play experience right out of the box. With its smooth bi-directional operation, the EVO-MR6 ensures a high success rate on every swipe, making it an essential tool for businesses that require reliable card reading capabilities.
Key Features:
Reads card tracks 1, 2, and 3

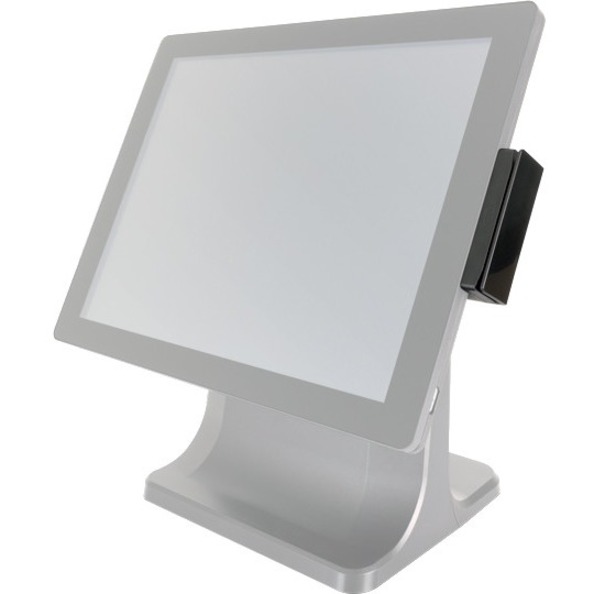

Fully integrates with EVO TP6
USB interface for seamless connectivity
Easy installation with plug'n'play operation
Specifications:
Performance:
Interface: Cable-free USB
Swipe Speed: 3 to 60 inches (76 to 1524mm) per second, bi-directional
Tri-colored LED indicators
Head Life: 1,000,000 card swipes
Environmental:
Operating Temperature: 32° F to 131°F (0°C to 55°C)
Storage Temperature: -22° F to 158° F (-30°C to 70°C)
Maximum Humidity: 95% non-condensing
Media Thickness: 0.015" - 0.045" (0.38mm - 1.1mm)
Slot Width: 0.050" (1.3mm)
Media Formats: ISO 7811, AAMVA, and other F2F formats
Full specifications (PDF)
