Custom America 915CH030100300 Receipt Printer

Part Number: 915CH030100300
Model: TG2480HIII
Add to My Shopping List Add to Compare
$418.89

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Receipt Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
5.91 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Receipt Printer, Custom America TG2480HIII, TG2480 HIII Rs232/USB, Paper Roll Holder And Near Paper End Sensor Included
Explore all Custom America TG2480HIII Receipt Printers
Add to Quote
Custom America 915CH030100300 Receipt Printer
Custom America 915CH030100300 Receipt Printer
Custom America 915CH030100300 Receipt Printer
Custom America 915CH030100300 Receipt Printer Custom America 915CH030100300 Receipt Printer Custom America 915CH030100300 Receipt Printer
Full specifications (PDF)

Custom America TG2480HIII Receipt Printer Model Overview

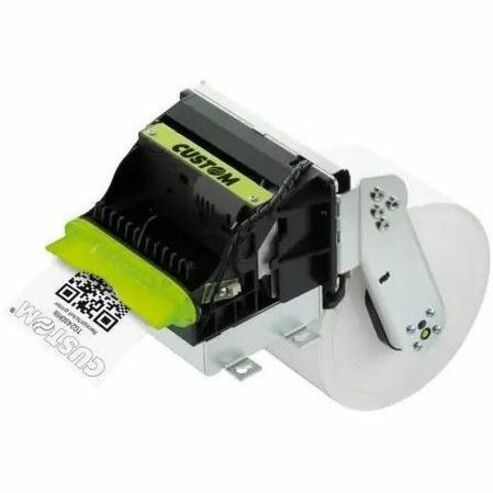

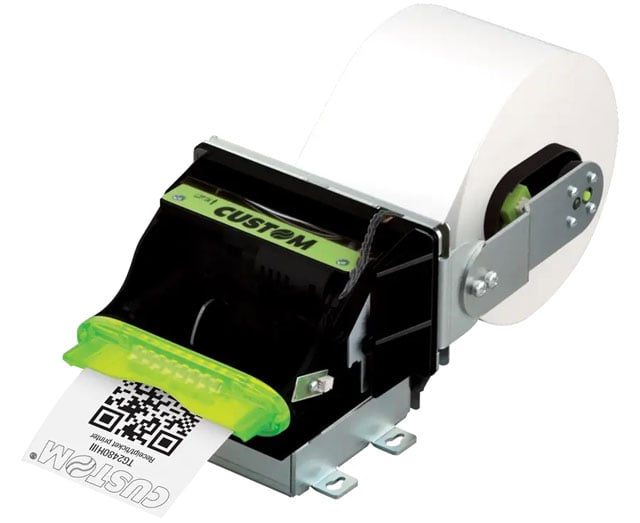

The CUSTOM TG2480HIII is a high-performance 80mm ticket and receipt printer designed for a variety of applications, including self-service kiosks, banking machines, and vending systems. With a robust metal frame and a print speed of over 150 mm/sec, it ensures quick, reliable printing with exceptional quality at 200 DPI. This versatile printer supports a wide range of barcodes and character sets, making it ideal for businesses that demand versatility and reliability in their printing solutions.


Key Features:

  • Robust metal frame for enhanced durability
  • High print quality of 200 DPI
  • Fast printing speed of over 150 mm/sec
  • Compatible with various interfaces: RS232 and USB
  • Patented anti-jamming system for seamless operation
  • Over 1,000,000 cuts for reliable ticket handling

Specifications:

  • Printing Method: Thermal with fixed head
  • Resolution: 203 DPI (8 dots/mm)
  • Print Speed: 150 mm/sec
  • Paper Width: 80 mm
  • Paper Thickness: 63 to 85 µm
  • Temperature Range: 0°C to +50°C
  • Dimensions: 271.5(L)x102(H)x130.2(W) mm (without ejector)
  • Weight: 1130 g (without ejector)
  • Character Sets: Multiple including European, Arabic, Chinese, and more
  • Interfaces: RS232 + USB
  • Flash Memory: 1 MB
Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.91 in/s
Maximum Print Resolution (dpi):
203
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • ITF
  • Code 128
  • Code 32
  • QR Code
Application/Usage:
  • Kiosk
  • Queue Management System
  • Parking
Mean Time Between Failures (MTBF):
51.3 Year
Character Sets:
  • PC437
  • PC860
  • PC850
  • PC863
  • PC865
  • PC858
  • PC866
Print Head Life:
50Km
Print Technology:
Direct Thermal
Memory
Flash Memory:
1 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Cutter
Cutter:
Yes
Cutter Life:
1000000 Cuts
Media Types & Handling
Media Type:
  • Receipt
  • Ticket
  • Roll Paper
Media Sensor:
  • Paper Presence Sensor
  • Paper End Sensor
  • Paper Near End Sensor
  • Anti-paper Jamming Sensor
  • Head Temperature Sensor
Media Thickness:
3.35 mil
Maximum Roll Diameter:
3.54"
Fonts & Emulation
Language Emulation:
  • Custom/POS
  • TGH
Physical Characteristics
Height:
4"
Width:
5.1"
Depth:
10.7"
Weight (Approximate):
2.49 lb
Miscellaneous
Platform Supported:
  • PC
  • SPARC
Item Numbers
GTIN: 0826635719441
UPC: 826635719441
EAN: 0826635719441
