Cubiscan 15211 Dimensioning System
Part Number:
15211
Model:
100

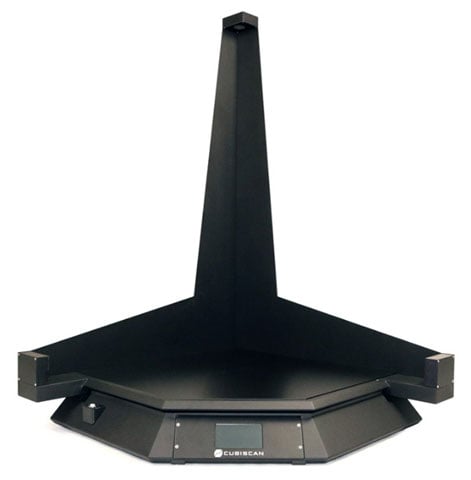

Cubiscan 100 Scale Model Overview
The CubiScan 100 is the ideal solution for optimizing space and increasing efficiency in your warehousing and distribution operations. This integrated cubing and weighing system eliminates the need for manual data entry and minimizes errors by providing accurate dimensional and weight data. Certified as a legal-for-trade device, it enables quick and reliable freight manifesting with user-defined dimensional weight calculations. Its versatile design allows for easy mobility and seamless integration with warehouse management systems and manifesting software, making it a valuable tool for streamlining shipping processes.
Key Features
Specifications
Key Features
- Integrated cubing and weighing system for precise dimension and weight data
- Eliminates manual data entry to protect data integrity
- Mobile workstation with sturdy metal cart and long battery life
- Compatible with case packing and load optimization software
- Real-time data transfer to host systems via QBIT™ software
Specifications
- Physical Specifications:
- Length: 32 in (813 mm)
- Width: 32 in (813 mm)
- Height: 48 in (1,220 mm)
- Weight: 70 lbs (32 kg)
- Performance Specifications:
- Measurement Range: Length 0.5 in (13 mm) to 24 in (610 mm)
- Weight Capacity: 100 lbs (50 kg)
- Measurement Increment: 0.1 in (2 mm)/0.2 in (5 mm)*
- Weight Increment: 0.05 lbs (0.02 kg)
- Measuring Sensor: Ultrasonic
- Weight Sensor: Load cell
- Data Output: EIA RS-232-C, bi-directional
- User Interface: Integrated display & keypad/QBIT™ software
- Minimum PC Specifications: Windows 7/XP/95/98/NT/2000, Pentium II processor, 20 MB Disk Space
- Power Requirements: 25-250 VAC, 95-250 VAC, 47-63 Hz
- Operating Temperature: 40° - 104° F (5° - 40° C)
- Humidity: 0-90% non-condensing
Brand
Cubiscan
Model
100
