Crestron UC-MX50-NC-Z Video Conferencing Equipment

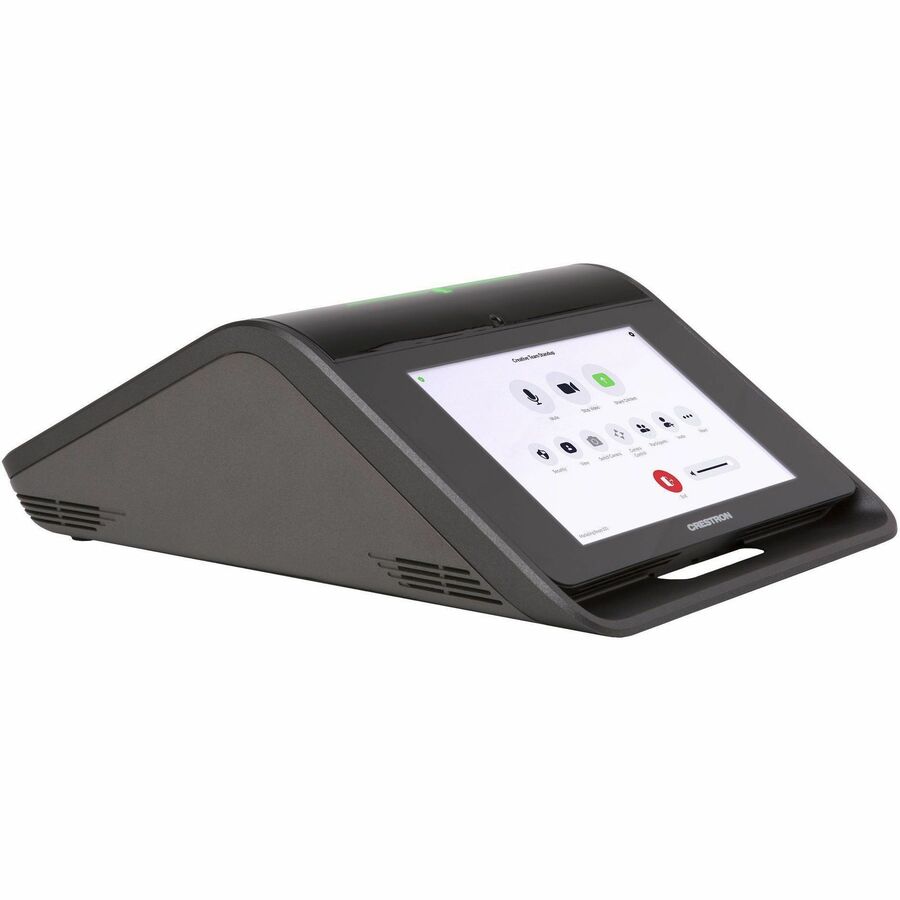

Crestron Flex Tabletop Conferencing Device

• Mic Mute Symbol and Light Bar: (2) Capacitive buttons with bi-color LEDs

UC Bracket Assembly Construction

• Black

UC Bracket Assembly Construction:Metal mounting Bracket

Crestron Flex Tabletop Conferencing Device | Dimensions:

• Screen 7 in. (178 mm)
• Microphones Pickup Range (typical): 20 ft (6 m)
• Occupancy Sensor: 6 ft (1.83 m) PIR range in front of touch screen
• Height: 4.1

• Crestron Flex Tabletop Conferencing Device Weight:5.5 lb (2.5 kg)
• Crestron Flex Tabletop Conferencing Device Weight:8.0 lb (3.7 kg)

• Table
• Wall

Crestron Flex Tabletop Conferencing Device

• Touch Screen 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
• UI Zoom Rooms UI
• Mic Mute Symbol and Light Bar (2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute
• AEC Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant
• Speaker Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz
• Microphones 360° quad mic array; Pickup Range (typical): 20 ft (6 m)
• Extension Microphones Supports two mic pods, model CCS-UCA-MIC (sold separately)
• Occupancy Sensor 6 ft (1.83 m) PIR range in front of touch screen
• Ethernet 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/ IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, digest access authentication, password login, XiO Cloud service, Microsoft Intune® client
• USB USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included)
• Power 24VDC via external 100-240VAC, 50/60 Hz power pack, model PW-2420RU (NOTE: The CCS-UC-1-X cannot be powered by Power over Ethernet or PoE+.)

UC Bracket Assembly

• UC Engine Mini PC, Intel Core® processor, with Windows® 11 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
• UC Client Zoom Rooms software
• Management Client XiO Cloud Service
• Content Ingest HDMI input via CAT5 to USB 3.0 converter
• Display Output Single or dual displays supported
• Display Output Resolution 1080p
• Power UC Engine: 100-240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100-240VAC, 50/60 Hz power pack (included)

https://www.crestron.com/Products/Catalog/Unified-Communications/Flex-Conferencing/Room-Kits/UC-MX50-NC-Z

• Tabletop
• Wall Mountable
• Surface Mount
