Wi-Fi Generation:
Wi-Fi 6
Network Band:
Dual Band
CradlePoint MBA3-2105-5GB-GA Wireless Router
Part Number:
MBA3-2105-5GB-GA
Model:
Parts
CradlePoint Parts Accessory Model Overview
Products and parts from CradlePoint.

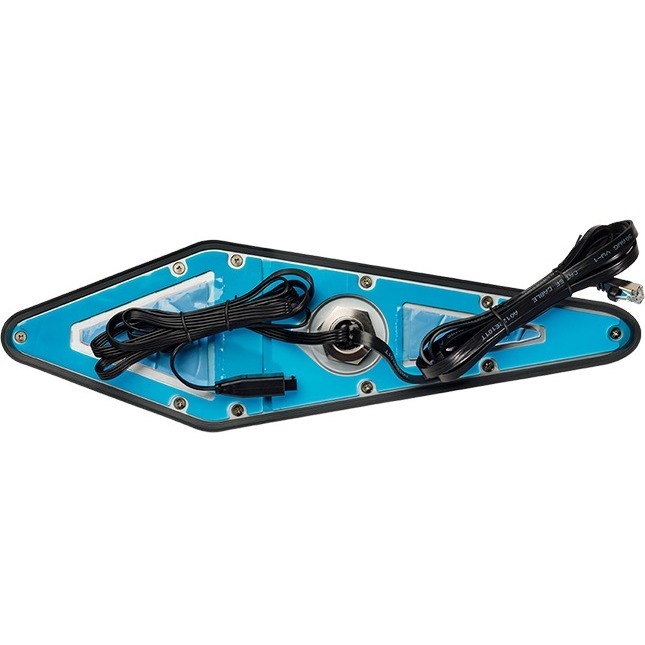

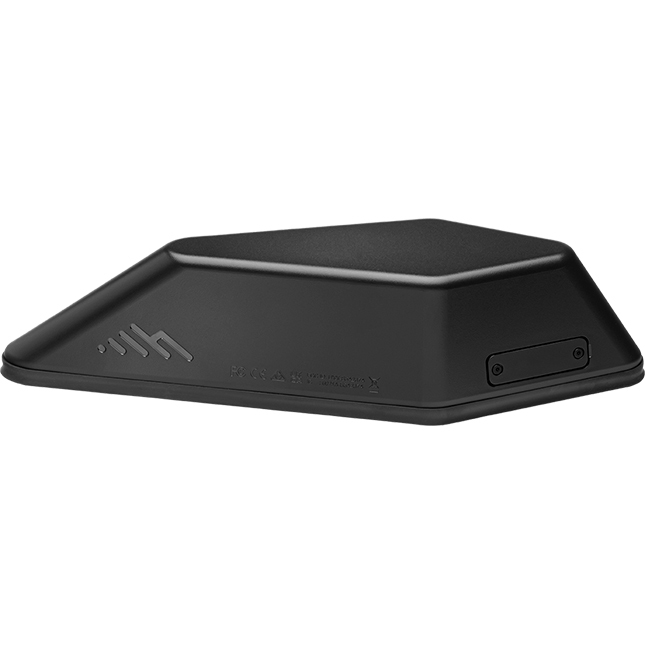

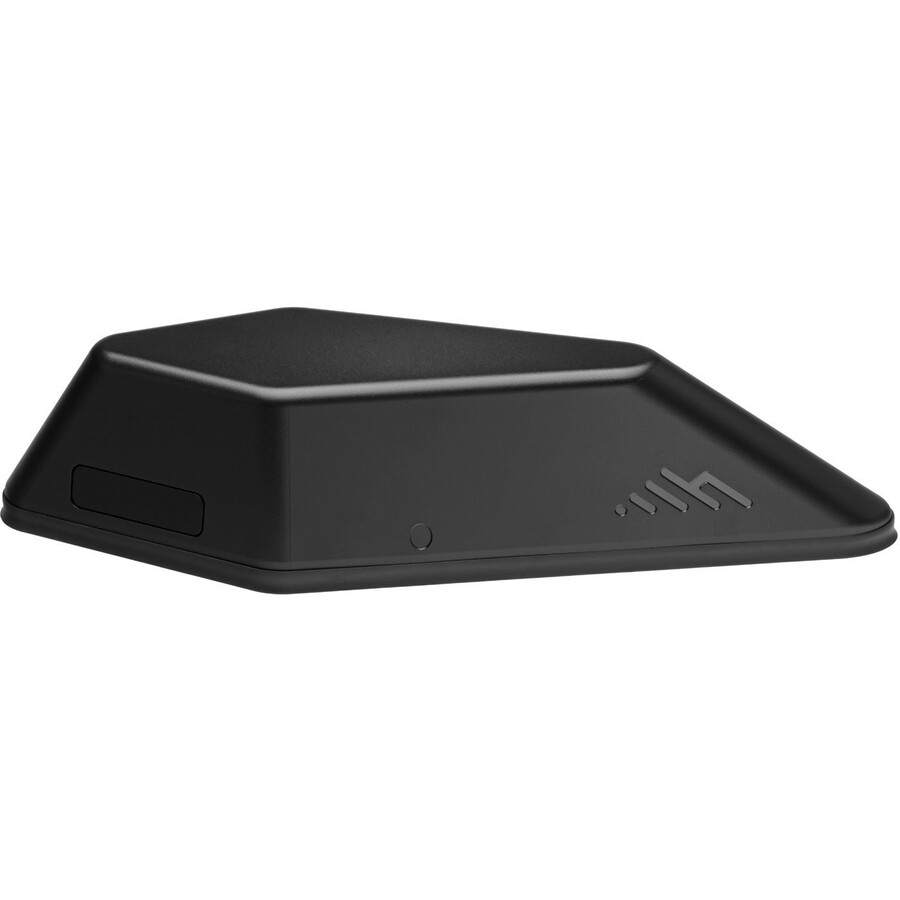

CradlePoint MBA3-2105-5GB-GA Wireless Router Overview
The R2100 Series 5G Ruggedized Router is designed for vehicle and IoT deployments. This high-bandwidth, exterior-mounted solution provides mass transit, public safety, and other organizations with the latest cellular performance in a uniquely flexible and simplified form factor.
5G Ruggedized Router for High-Performance Vehicle and IoT Connectivity
The Cradlepoint R2100 Series 5G Ruggedized Router is available with the NetCloud Performance Mobile Service plan or the NetCloud Ruggedized IoT Service plan. Designed to be mounted on the roof of a vehicle or attached to IoT cabinet enclosures, the R2100 integrates the modem, antennas, and router into a single aerodynamic, ruggedized casing allowing for simplified deployment. The R2100 is sold with or without Wi-Fi 6 and can be deployed as a self-contained router or to supplement an existing router as a 5G adapter.
High Performance Captive Modem
Customers can add 5G to a current installation by deploying the R2100 series as a Captive Modem with supported Cradlepoint controlling routers. This allows them both to be managed in NetCloud Manager as a single entity. The NetCloud management system treats the R2100 as an internal modem, eliminating the need for a separate license. Similarly, for select controlling routers, the R2100 Series can serve as an additional Wi-Fi source in captive mode to expand coverage for applications such as video offload. The R2100 Series can be PoE powered while providing a high-performance 5G connection over Ethernet.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Cellular
- Ethernet
Wireless LAN Standard:
IEEE 802.11ax
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
5G
Cellular Data Connectivity Technology:
- LTE Advanced Pro
- UMTS
- HSPA+
Total Number of Antennas:
4
Number of Internal Antennas:
4
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
Yes
Network & Communication
Ethernet Technology:
2.5 Gigabit Ethernet
VPN Supported:
Yes
Multi-SIM Supported:
Yes
Number of SIM Card Supported:
2
SIM Size Supported:
Nano
Physical Characteristics
Form Factor:
- Vehicle Mount
- Cabinet Mount
Height:
3.2"
Width:
15.2"
Depth:
4.5"
Weight (Approximate):
3.22 lb
Item Numbers
GTIN:
0840292701502
UPC:
840292701502
EAN:
0840292701502
UNSPSC:
43222609
Frequently Asked Questions
What 5G connectivity options does the CradlePoint MBA3-2105 router support?
The CradlePoint MBA3-2105 is a 5G mobile performance router equipped with a 5G modem and supports a 4FF SIM slot (SIM card not included). This router is designed to deliver advanced mobile broadband connectivity for enterprise and field operations where reliable 5G access is critical.
Does the MBA3-2105 come with a power supply included?
No, the CradlePoint MBA3-2105 does not include an AC power supply in the box. You will need to source a compatible power adapter separately. Contact us today for compatible power supply options and guidance on setup requirements.
What WiFi capabilities does this CradlePoint router offer?
The MBA3-2105 features integrated WiFi antennas for wireless connectivity. This design eliminates the need for external antenna installation in many deployments, simplifying setup and reducing overall footprint for mobile and field applications.
What NetCloud service plans are included with the MBA3-2105?
The CradlePoint MBA3-2105 comes with a 3-year NetCloud Mobile Performance subscription that includes your choice of Essentials Plan or Advanced Plan. These management plans provide centralized monitoring, device alerts, data usage tracking, and advanced troubleshooting capabilities for enterprise deployments.
Is the CradlePoint MBA3-2105 suitable for global deployment?
Yes, the MBA3-2105 is designated as a Global model, making it suitable for international deployments. Visit barcodesinc.com or contact us today to discuss regional regulatory compliance, carrier compatibility, and localization requirements for your specific markets.
What security features are available on the MBA3-2105 router?
CradlePoint routers in this product family support enterprise-grade security including zone-based firewalls, MAC address filtering, IP filtering, content filtering, website filtering, and certificate-based authentication. These features help protect your network infrastructure and connected devices in warehouse and logistics environments.
The CradlePoint MBA3-2105-5GB-GA Wireless Router is also known as
MBA321055GBGA
