Wi-Fi Generation:
Wi-Fi 6

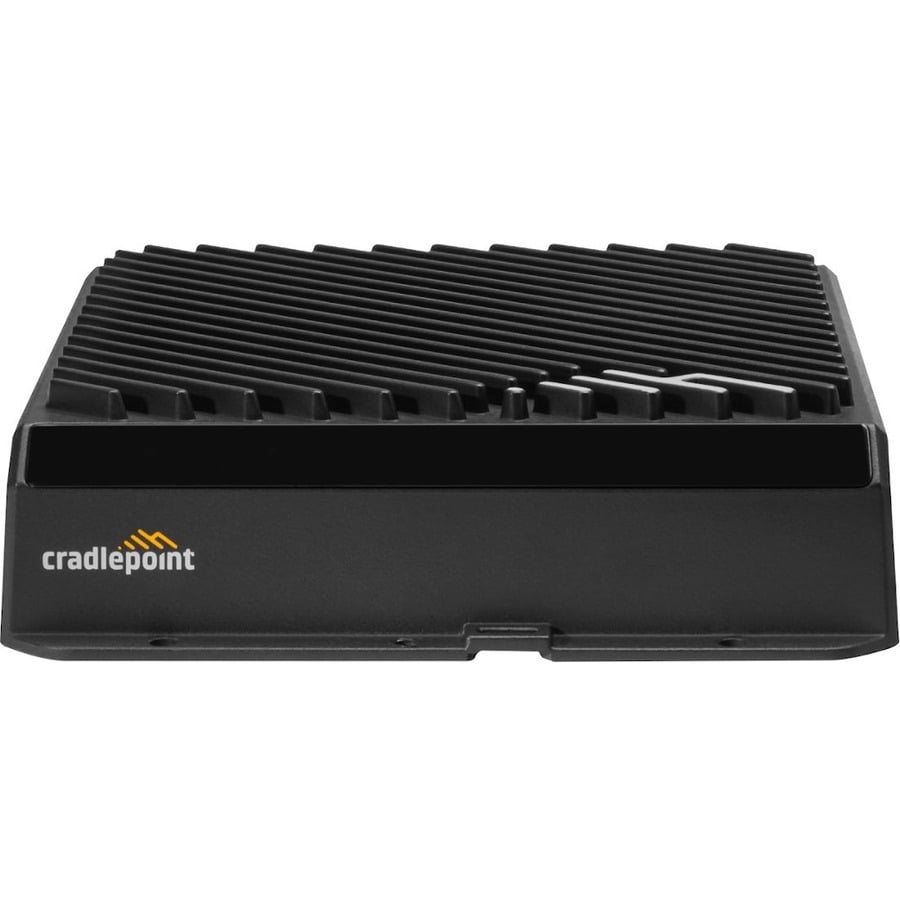

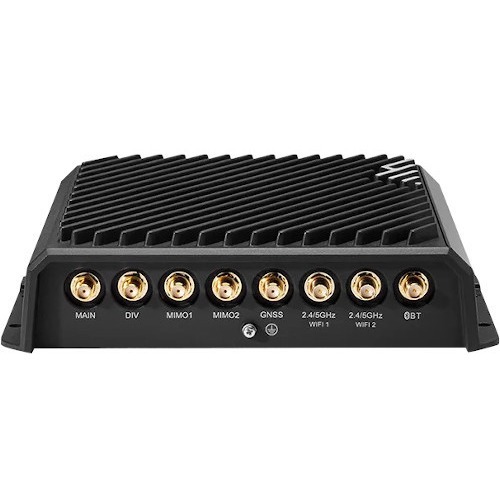

CradlePoint MB05-19005GB-GA Wireless Router
Part Number:
MB05-19005GB-GA
Model:
Parts
CradlePoint Parts Accessory Model Overview
Products and parts from CradlePoint.
CradlePoint MB05-19005GB-GA Wireless Router Overview
Cradlepoint's NetCloud Mobile Performance Service with the R1900 Series router is a ruggedized 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.
Ideal for High-Performance Mobile Connectivity
For organizations that depend on field forces and mobile networks, the Cradlepoint R1900 mobile router with the NetCloud Mobile Performance Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Performance Mobile Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.
5G Embedded High-Performance Solution
The R1900 mobile router includes an embedded 5G modem that can automatically switch to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 is designed to accept the RX30 managed accessories which provide either four additional PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.
Performance
Stateful Firewall Throughput:
940 Mbps
IPS Throughput:
940 Mbps
Application Aware Services & Analytics:
940 Mbps
IPSec VPN Throughput:
400 Mbps
Notable Features
- Deploy the ultimate 5G NR / Cat 20 LTE mobile networking solution with industry-leading features
- Add a second cellular modem with the optional RX30 managed accessory for simultaneous dual-carrier connectivity
- Take advantage of Wi-Fi 6 for the best possible connections
- Enable unified edge security with application aware multi-zone firewalls, IDS/IPS, and internet security
- Define policies through centralized cloud-based management for easy deployment at scale
- Integrate into Automatic Vehicle Location systems with discrete GNSS and dead reckoning
- Create a cellular coverage map for complete visibility into your area's 5G and LTE coverage
- Extend your deployment with additional PoE ports, GPIOs, NetCloud SDK and API, Bluetooth, and container support for customizable solutions
Ideal for High-Performance Mobile Connectivity
For organizations that depend on field forces and mobile networks, the Cradlepoint R1900 mobile router with the NetCloud Mobile Performance Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Performance Mobile Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.
5G Embedded High-Performance Solution
The R1900 mobile router includes an embedded 5G modem that can automatically switch to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 is designed to accept the RX30 managed accessories which provide either four additional PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.
Performance
Stateful Firewall Throughput:
940 Mbps
IPS Throughput:
940 Mbps
Application Aware Services & Analytics:
940 Mbps
IPSec VPN Throughput:
400 Mbps
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Cellular
- Ethernet
Wireless LAN Standard:
IEEE 802.11ax
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
5G
Cellular Data Connectivity Technology:
- LTE Advanced Pro
- UMTS
- HSPA+
Total Wireless Transmission Speed:
221.75 MB/s
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
USB:
Yes
PoE (RJ-45) Port:
Yes
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Multi-SIM Supported:
Yes
Number of SIM Card Supported:
2
SIM Size Supported:
Nano
Physical Characteristics
Form Factor:
Desktop
Height:
1.6"
Width:
6.8"
Depth:
5.8"
Weight (Approximate):
2.16 lb
Item Numbers
GTIN:
0810007805276, 0810007807300
UPC:
810007805276, 810007807300
EAN:
0810007805276, 0810007807300
UNSPSC:
43222609
Frequently Asked Questions
What wireless connectivity options does the CradlePoint MB05-19005GB-GA R1900 Router support?
The CradlePoint R1900 Router features 5G modem connectivity with integrated Wi-Fi capability. It supports multiple WAN connection options including mobile broadband via USB or ExpressCard modem with an active plan, as well as traditional Ethernet-based internet connections such as DSL, Cable, and T1 lines. This multi-connection approach ensures reliable failover and redundancy for mission-critical warehouse and logistics operations.
What management and monitoring capabilities are included with this CradlePoint router?
The MB05-19005GB-GA offers comprehensive management through HTTP and HTTPS remote management, a web-based GUI for easy configuration, and server-based centralized management via WiPipe Central. It includes one-button firmware upgrades and USB-based firmware upgrade options, plus WAN remote web-based management access for IT teams managing distributed warehouse locations.
Does the CradlePoint R1900 support VPN and advanced routing features?
Yes, the CradlePoint MB05-19005GB-GA includes full VPN support with device-to-device, Cisco/Linksys, and Linux system compatibility. It offers advanced routing capabilities including policy-based routing, NAT, virtual server/port forwarding, routing rules, and GRE tunneling. Security features include MAC address filtering, content filtering, website filtering, and support for multiple encryption algorithms (AES, 3DES, DES) with hash functions (MD5, SHA128, SHA256, SHA384, SHA512).
What are the operating temperature and environmental specifications for this wireless router?
The CradlePoint MB05-19005GB-GA is rated for operating temperatures from 0 to 40°C (32 to 104°F) and storage temperatures from -20 to 70°C (-4 to 158°F). It operates in relative humidity conditions of 10% to 85% and can be stored in environments up to 90% humidity, making it suitable for diverse warehouse and logistics facility conditions.
What QoS and traffic management features does the MB05-19005GB-GA provide?
The router includes WiPipe™ QoS with traffic shaping capabilities, SSID-based priority settings, WAN port speed control, and multicast stream enable/disable functionality. These performance management features allow warehouse managers to prioritize critical logistics applications and optimize bandwidth allocation across multiple connected devices and departments.
What support options are available for the CradlePoint MB05-19005GB-GA?
We offer flexible support options for the CradlePoint R1900 Router, including both per-incident and full-year support plans. This ensures your warehouse operations maintain continuous connectivity and can quickly resolve any network issues. Contact us today at barcodesinc.com to discuss the support package that best fits your logistics and inventory management needs.
The CradlePoint MB05-19005GB-GA Wireless Router is also known as
MB0519005GBGA
