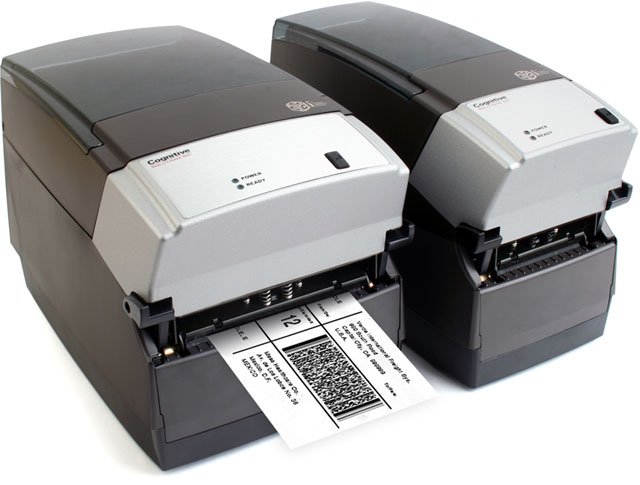

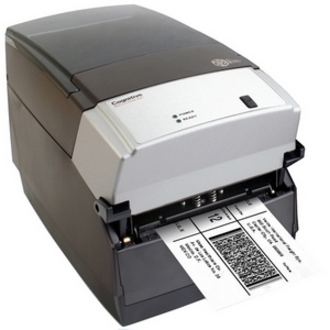

CognitiveTPG CID2 Barcode Label Printer

CognitiveTPG Ci - Direct thermal, 203 dpi, 6 ips, 2.1" print width, Serial, USB and Parallel Interfaces, USB Cable included with printer, 90-264 VAC
The next generation of high-performance thermal label printers!

The CognitiveTPG Ci printers deliver exceptional value as high-performance durable printers with small footprints, competitive pricing, and a full internal connectivity suite which is included on all Ci printer models at no added charge to you. All Ci printer models include USB-B (Device), USB-A (Host), Ethernet, Serial, and Parallel communications.

Technical Information

  • Print Method:
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x USB
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.84"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: CPL
  • Input Voltage: 24 V DC
  • Input Voltage Range: 90 to 260 V AC
  • RAM Memory: 16MB
  • Flash Memory: 6MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 7.1" (180.34mm) x 5" (127mm) x 10.5" (267mm)
    • 7.1" (180.34mm) x 5" (127mm) x x 10.5" (267mm)
  • Weight: 5.2 lb (2.36 kg)
  • Shipping Weight: 12.6lb (5.72kg)

Included Features

  • Included Features:
    • LCD Display
    • Real Time Clock

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -4°F (-20°C) to 122°F (50°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Agency Approvals

  • Agency Approvals:
    • UL
    • FCC Class A
    • CSA GS/TUV/VDE
    • CCC
    • CE

Other

  • Package Contents:
    • Ci Label Printer
    • Software CD

Media Characteristics

  • Maximum Label Roll Diameter: 7.625"
  • Label Core Size: 1.5"

Warranty

  • Manufacturer Warranty: 2 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand CognitiveTPG
Model Ci
Max Label Width 2.84
Interface Options Serial, USB, Parallel
Print Speed 8
Printer Type Industrial
Max Roll Outer Diameter 8
Label Core 3 inches
Print Resolution 203 dpi
Print Method Direct Thermal
Maximum Print Width 2.10
Printer Mobility Not Mobile
