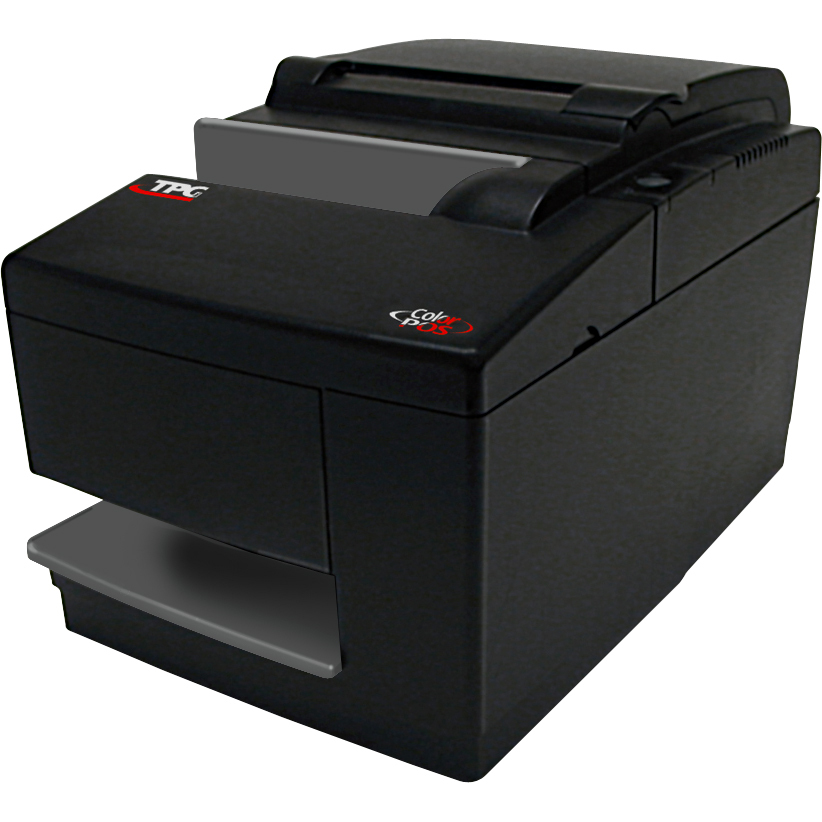

CognitiveTPG A776-720D-T000 Receipt Printer

Overview

Full specifications (PDF)

CognitiveTPG A776 Receipt Printer Model Overview

The CognitiveTPG A776 printer has been designed for maximum flexibility, performance, reliability, and lowest cost. It opens a new world of possibilities with its lightning fast (180 mm/s) thermal receipt station. The A776 printer is capable of printing watermarks, logos, coupons and other "attention grabbing" features on monochrome or two-color thermal paper.

CognitiveTPG A776-720D-T000 Receipt Printer Overview

The Next Evolution in Hybrid Retail Printers

From the company that brought you the first thermal/impact hybrid transaction printer with integrated MICR, and clam shell drop-in paper loading design. CognitiveTPG offers the retail market its hybrid printer model A776 with two-color/monochrome printing, graphic capability, and a small footprint (under 73 sq. in) that fits almost anywhere

Detailed Specs

Full specifications (PDF)

Technical Information

Print Color Capability:

Color

Print Technology:

Dot Matrix
Direct Thermal

Maximum Color Print Speed (lps):

27 lps

Maximum Mono Print Speed (lps):

70.6 lps

Number of Pins:

9-pin

Maximum Number of Columns:

Features:

Drop-in Validation
Check Validation
Auto-cutter

Memory

Buffer:

2 MB

Flash Memory:

8 KB

Interfaces/Ports

Serial:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Receipt
Slip
Coupon
Tag
Ticket
Label

Maximum Roll Diameter:

3.27"

Power Description

Input Voltage:

24 V DC

Physical Characteristics

Color:

Black

Width:

6.6"

Depth:

11.4"

Length:

6.5"

Weight (Approximate):

8 lb

Miscellaneous

Additional Information:

Print Line Width: (2.8 in. (72 mm)
Powered USB
Windows Compatible
Paper Roll (W X Dia.)3.15 in. X 3.27 in. (80 mm X 83 mm)

Bar Codes:

UPC-A
UPC-E
Code 39
Code 93
Code 128
Coded 128 extende
JAN8 and JAN13 (EAN)
Interleaved 2 of 5
Codabar
EAN128
RSS
QR
PDF 417 (receipt station only)

Certifications & Standards:

EMC emissions
EN55022:1998 Class B ITE emission requirements (EU)
FCC 47 CFR Part 15
Class B emissions requirements (USA)
VCCI Class B ITE emissions requirements (Japan)
AS/NZS 3548:2002/CISPR22 Class B ITE emission requirements (Australia)
EMC Immunity
EN55024:1998/A1:2001 Information technology equipment (EU)

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0088064955597, 0729224794655, 0735548697732, 0853585565330

UPC: 088064955597, 729224794655, 735548697732, 853585565330

EAN: 0088064955597, 0729224794655, 0735548697732, 0853585565330

UNSPSC: 43212112
